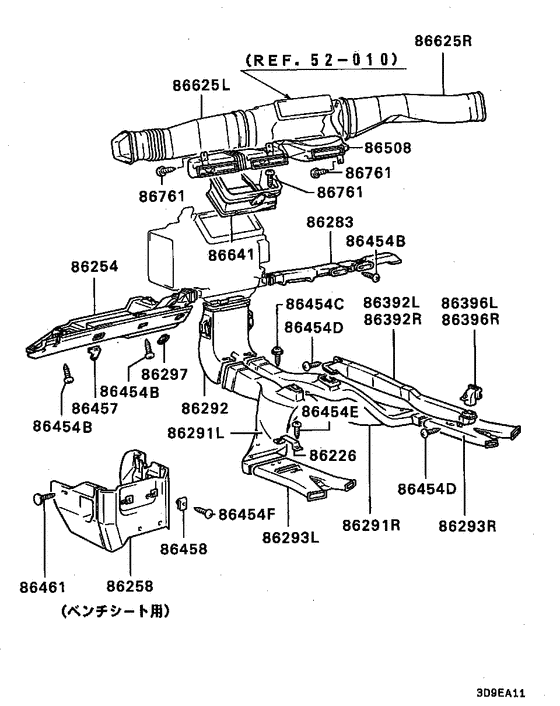

Ventilation & duct (DUCT 1/2) Diagram Mitsubishi DEBONAIR V
- Year
- 1987 - 1992
- Sales region
- Japan
- Note
- LG(HIRE),4CA/T
- transmission
- 4CA/T
- grade
- LG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86226
|
86226
MB439885 BRACKET, HEATER DUCT |
MB439885 |
US $11.69 |
||
|
86254
|
86254
MB702914 COVER, HEATER UNDER |
MB702914 |
US $94.72 |
||
|
86258
|
86258
MB702976 COVER, HEATER SIDE BLIND |
MB702976 |
US $80.66 |
||
|
86258
|
86258
MB725255
COVER, HEATER SIDE BLIND
|
MB725255 |
— | ||
|
86283
|
86283
MB380139 DUCT, LAP HEATER |
MB380139 |
US $24.42 |
||
|
86283
|
86283
MB568393 DUCT, LAP HEATER |
MB568393 |
US $24.42 |
||
|
86291L
|
86291L
MB438966
DUCT, RR HEATER, CTR LH
|
MB438966 |
— | ||
|
86291R
|
86291R
MB438969 DUCT, RR HEATER, CTR RH |
MB438969 |
US $54.76 |
||
|
86292
|
86292
MB438948 DUCT, RR HEATER, FR |
MB438948 |
US $29.60 |
||
|
86293L
|
86293L
MB438951 DUCT, RR HEATER, RR LH |
MB438951 |
US $27.38 |
||
|
86293R
|
86293R
MB438952 DUCT, RR HEATER, RR RH |
MB438952 |
US $27.38 |
||
|
86297
|
86297
MB702916 GARNISH, LAP HEATER AIR OUTLET |
MB702916 |
US $3.40 |
||
|
86454B
|
86454B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
86454C
|
86454C
MS450158 SCREW, EMISSION SOLENOID VALVETapping,5x20 |
MS450158 |
US $2.07 |
||
|
86454D
|
86454D
MS450156 SCREW, CRUISE CONTROL ELECTRICALSTapping(flange head),5x12 |
MS450156 |
from US $3.16 |
||
|
86454E
|
86454E
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
86454F
|
86454F
MF453090 SCREW, PTO GEARSHIFT LINKTapping,5x10 |
MF453090 |
US $3.15 |
||
|
86457
|
86457
MB702920 PLUG, HEATER DUCT |
MB702920 |
US $2.96 |
||
|
86458
|
86458
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.72 |
||
|
86461
|
86461
MB189333 CLIP, SCUFF PLATE |
MB189333 |
US $2.46 |
||
|
86508
|
86508
MB380131 DUCT, VENTILATION MILD FLOW |
MB380131 |
US $43.66 |
||
|
86625L
|
86625L
MB380129 DUCT, FR SIDE VENTILATOR, LHPassenger(rhd) |
MB380129 |
US $24.42 |
||
|
86625R
|
86625R
MB380127 DUCT, FR SIDE VENTILATOR, RHDriver(rhd) |
MB380127 |
US $18.50 |
||
|
86641
|
86641
MB380133 DUCT, VENTILATOR, CTR |
MB380133 |
US $29.60 |
||
|
86761
|
86761
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
