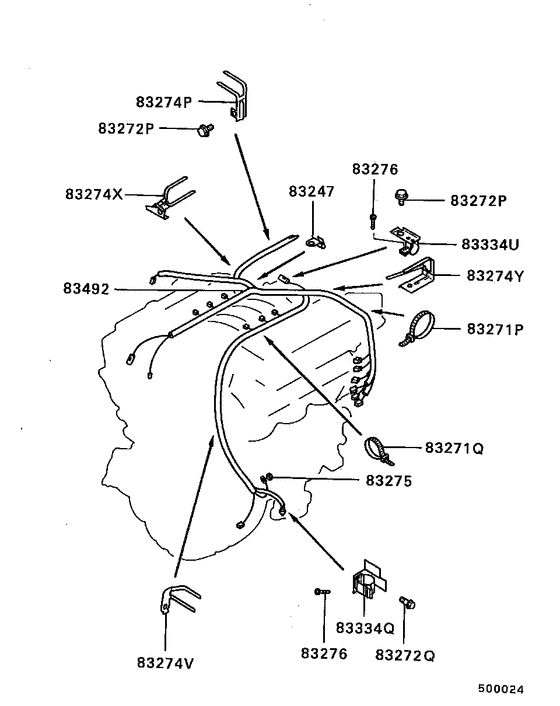

Electrical control (W/SUPERCHARGER (ENGINE HARNESS)) Diagram Mitsubishi DEBONAIR V
- Year
- 1988 - 1989
- Sales region
- Japan
- Note
- AQUASCUTUM(SUPER-CHARGER),4FA/T
- transmission
- 4FA/T
- grade
- AQUASCUTUM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83247
|
83247
MD124835 STAY, MIXTURE HEATER |
MD124835 |
US $27.38 |
||
|
83271P
|
83271P
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
83271Q
|
83271Q
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
83272P
|
83272P
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
83272Q
|
83272Q
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
83274P
|
83274P
MB261622
CLIP, ENG WIRING
|
MB261622 |
— | ||
|
83274V
|
83274V
MD103928 CLIP, ENG WIRING |
MD103928 |
US $13.02 |
||
|
83274X
|
83274X
MD122436 CLIP, ENG WIRING |
MD122436 |
US $39.96 |
||
|
83274Y
|
83274Y
MD122435 CLIP, ENG WIRING |
MD122435 |
US $39.96 |
||
|
83275
|
83275
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
83276
|
83276
MF350025 SCREW, FUEL TANKWasher assembled,4x12 |
MF350025 |
US $2.07 |
||
|
83334Q
|
83334Q
MD105181 BRACKET, ENG CONTROL MAIN HARNESS |
MD105181 |
US $40.70 |
||
|
83334U
|
83334U
MD119503 BRACKET, ENG CONTROL MAIN HARNESS |
MD119503 |
US $22.94 |
||
|
83492
|
83492
MD103758 HARNESS, ENG CONTROL MAIN WIRING |
MD103758 |
US $483.39 |
||
|
83492
|
83492
MD135590 HARNESS, ENG CONTROL MAIN WIRING |
MD135590 |
US $449.90 |
