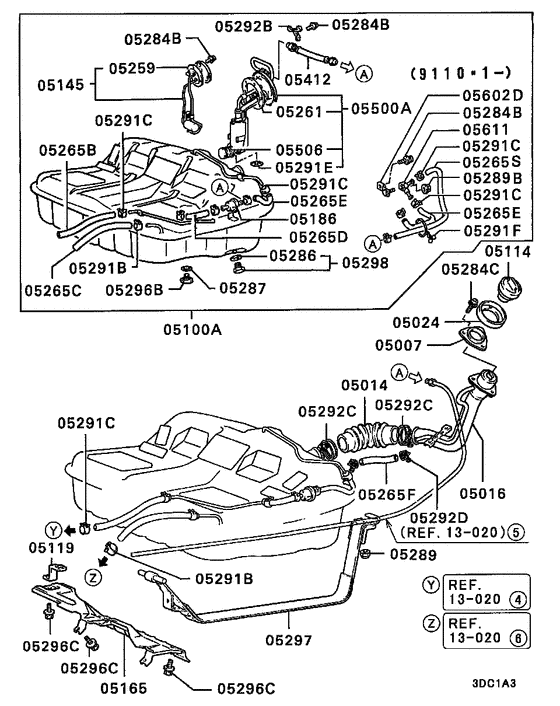

Fuel tank (GASOLINE) Diagram Mitsubishi DEBONAIR V
- Year
- 1988 - 1989
- Sales region
- Japan
- Note
- AQUASCUTUM(SUPER-CHARGER),4FA/T
- transmission
- 4FA/T
- grade
- AQUASCUTUM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB247374 GASKET, FUEL FILLER NECK |
MB247374 |
US $5.77 |
||
|
05007
|
05007
MB554685 GASKET, FUEL FILLER NECK |
MB554685 |
US $4.88 |
||
|
05014
|
05014
MB348310
HOSE, FUEL FILLER
|
MB348310 |
— | ||
| replacement | |||||
|
05014
|
05014
MB348672
HOSE, FUEL FILLER
|
MB348672 |
— | ||
|
05016
|
05016
MB248890 NECK, FUEL FILLER |
MB248890 |
US $92.50 |
||
|
05016
|
05016
MB554675 NECK, FUEL FILLER |
MB554675 |
US $85.84 |
||
|
05024
|
05024
MB248049 PLATE, FUEL FILLER NECK REINF |
MB248049 |
US $5.62 |
||
|
05100A
|
05100A
MB400154 FUEL TANK ASSY |
MB400154 |
US $1,771.20 |
||
|
05114
|
05114
MB247387 CAP, FUEL TANK |
MB247387 |
from US $33.07 |
||
|
05119
|
05119
MB433415 BRACKET, FUEL TANK PROTECTOR |
MB433415 |
US $11.10 |
||
|
05145
|
05145
MB399204 GAUGE UNIT, FUEL TANK |
MB399204 |
US $159.84 |
||
|
05165
|
05165
MB433413 PROTECTOR, FUEL TANK |
MB433413 |
US $79.18 |
||
|
05186
|
05186
MB504075 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB504075 |
US $36.25 |
||
|
05259
|
05259
MB434790 GASKET, FUEL TANK GAUGE |
MB434790 |
US $3.97 |
||
|
05261
|
05261
MB400578 GASKET, FUEL TANK PUMP |
MB400578 |
US $13.13 |
||
|
05265B
|
05265B
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265C
|
05265C
MS605896
HOSE, FUEL TANK
|
MS605896 |
— | ||
| replacement | |||||
|
05265C
|
05265C
MU601799 HOSE, FUEL TANK8x2000 |
MU601799 |
US $87.55 |
||
|
05265D
|
05265D
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265E
|
05265E
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265F
|
05265F
MB248897 HOSE, FUEL TANK |
MB248897 |
US $8.73 |
||
|
05284B
|
05284B
MF351008 SCREW, FUEL TANKWasher assembled,5x12 |
MF351008 |
from US $0.98 |
||
|
05284C
|
05284C
MB400510
SCREW, FUEL TANK
|
MB400510 |
— | ||
| replacements | |||||
|
05284C
|
05284C
MU340019 SCREW, FUEL TANKWasher assembled,6x16 |
MU340019 |
US $4.51 |
||
|
05284C
|
05284C
MU340031
SCREW, FUEL TANK
|
MU340031 |
— | ||
|
05286
|
05286
MT199415
GASKET, FUEL TANK
|
MT199415 |
— | ||
|
05287
|
05287
MB400208 O-RING, FUEL TANK15.8 |
MB400208 |
US $5.33 |
||
|
05289
|
05289
MF445005 NUTSelf locking,10 |
MF445005 |
from US $1.42 |
||
|
05291B
|
05291B
MS660175 CLIP, ROCKER COVERD=12.5 |
MS660175 |
from US $1.52 |
||
|
05291C
|
05291C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291E
|
05291E
MB595890 CLIP, FUEL TANK |
MB595890 |
US $3.97 |
||
|
05292B
|
05292B
MB400952
CLAMP, FUEL TANK
|
MB400952 |
— | ||
|
05292C
|
05292C
MS660031 CLAMP, FUEL TANK52 |
MS660031 |
from US $2.81 |
||
|
05292D
|
05292D
MF661011 CLAMP, FUEL TANKD=22 |
MF661011 |
US $2.33 |
||
|
05296B
|
05296B
MB400209
BOLT, FUEL TANK
|
MB400209 |
— | ||
|
05296C
|
05296C
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
05297
|
05297
MB400190 BAND, FUEL TANK |
MB400190 |
US $48.84 |
||
|
05298
|
05298
MB075290
PLUG, FUEL TANK
|
MB075290 |
— | ||
|
05412
|
05412
MB433985 HOSE, FUEL FILTER HIGH PRESSURE |
MB433985 |
US $103.60 |
||
|
05500A
|
05500A
MB527229 FUEL PUMP ASSY |
MB527229 |
US $1,054.14 |
||
|
05506
|
05506
MB400814 FILTER, FUEL PUMP |
MB400814 |
US $75.48 |
||
|
05506
|
05506
MB554674
FILTER, FUEL PUMP
|
MB554674 |
— | ||
|
