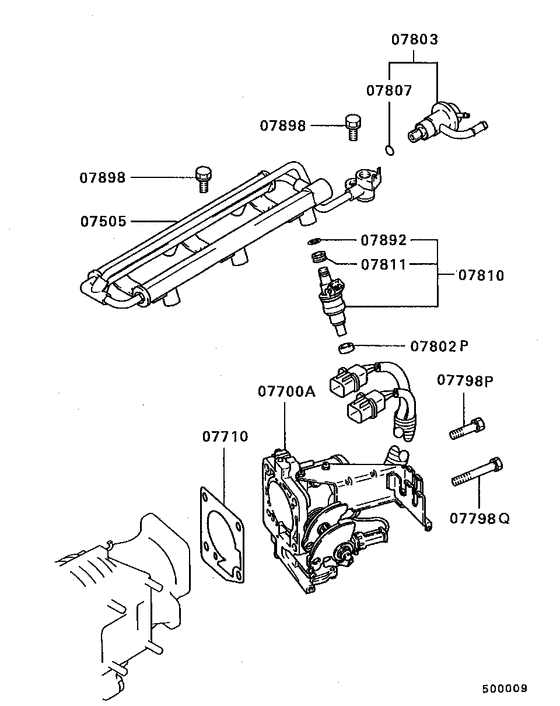

Injector & throttle body (-8908.3 W/SUPERCHARGER (ASSEMBLY)) Diagram Mitsubishi DEBONAIR V
- Year
- 1988 - 1989
- Sales region
- Japan
- Note
- AQUASCUTUM(SUPER-CHARGER),4FA/T
- transmission
- 4FA/T
- grade
- AQUASCUTUM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
07505
|
07505
MD103753 PIPE, FUEL DELIVERY |
MD103753 |
US $423.70 |
||
|
07505
|
07505
MD122622 PIPE, FUEL DELIVERY |
MD122622 |
US $506.69 |
||
|
07700A
|
07700A
MD115452 Throttle Body Assy |
MD115452 |
US $1,468.80 |
||
|
07700A
|
07700A
MD121727 Throttle Body Assy |
MD121727 |
US $1,468.80 |
||
|
07710
|
07710
MD116446 GASKET, THROTTLE BODY |
MD116446 |
US $4.88 |
||
|
07798P
|
07798P
MF140027 BOLT, RESISTORFlange,8x25 |
MF140027 |
from US $0.84 |
||
|
07798P
|
07798P
MF240057 BOLT, CYLINDER HEADWasher assembled,8x30 |
MF240057 |
from US $1.21 |
||
|
07798P
|
07798P
MF240657 BOLT, THROTTLE BODYWasher assmbled,8x30 |
MF240657 |
US $2.37 |
||
|
07798Q
|
07798Q
MF140035 BOLT, THROTTLE BODYFlange,8x50 |
MF140035 |
US $3.11 |
||
|
07798Q
|
07798Q
MF240064 BOLT, OIL FILTERWasher assembled,8x55 |
MF240064 |
US $4.51 |
||
|
07802P
|
07802P
MD087060 INSULATOR, FUEL INJECTOR |
MD087060 |
from US $1.54 |
||
|
07803
|
07803
MD103754 REGULATOR, INJECTION MIXER FUEL PRESSURE |
MD103754 |
US $95.46 |
||
|
07803
|
07803
MD121748 REGULATOR, MPI DELIVERY PIPE PRESSURE |
MD121748 |
US $94.72 |
||
|
07807
|
07807
MD604671 O-RING, FUEL REGULATOR |
MD604671 |
US $3.40 |
||
|
07810
|
07810
MD094860 INJECTOR KIT, FUEL |
MD094860 |
US $253.08 |
||
|
07810
|
07810
MD120871 INJECTOR KIT, FUEL |
MD120871 |
US $253.08 |
||
|
07811
|
07811
MD614805 SHEET, FUEL INJECTOR |
MD614805 |
from US $3.72 |
||
|
07892
|
07892
MD614803 O-RING, FUEL INJECTOR |
MD614803 |
US $8.29 |
||
| replacement | |||||
|
07892
|
07892
1465A188 O-RING, FUEL INJECTOR7.6 |
1465A188 |
from US $2.75 |
||
|
07892
|
07892
MD614813
O-RING, FUEL INJECTOR
|
MD614813 |
— | ||
| replacement | |||||
|
07892
|
07892
1465A188 O-RING, FUEL INJECTOR7.6 |
1465A188 |
from US $2.75 |
||
|
07898
|
07898
MF240661 BOLT, FUEL INJECTORWasher assembled,8x40 |
MF240661 |
from US $1.03 |
||
|
07898
|
07898
MF243650 BOLT, VACUUM PUMPWasher assembled,8x18 |
MF243650 |
US $2.60 |
||
|
07898
|
07898
MF247257 BOLT, FUEL LINEWasher assembled,8x35 |
MF247257 |
US $2.60 |
||
