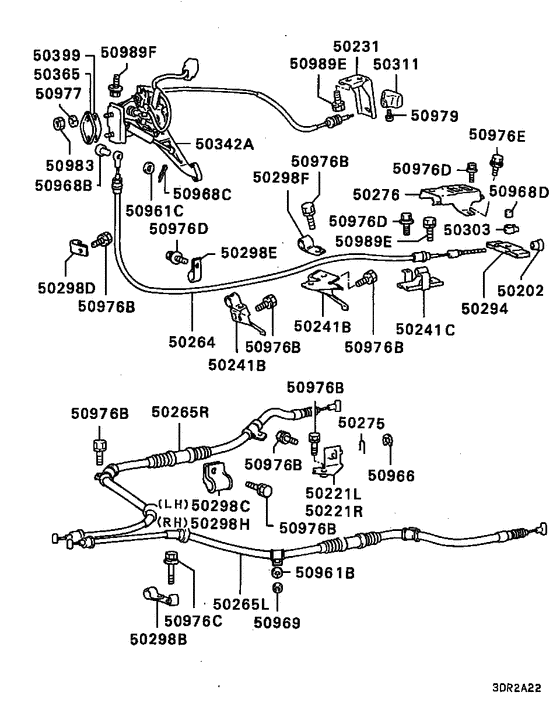

Parking brake control (PEDAL,CABLE ETC.) Diagram Mitsubishi DEBONAIR V
- Year
- 1988 - 1989
- Sales region
- Japan
- Note
- AQUASCUTUM(SUPER-CHARGER),4FA/T
- transmission
- 4FA/T
- grade
- AQUASCUTUM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
50202
|
50202
MA103803 ADJUSTER, PARKING BRAKE CABLE |
MA103803 |
US $25.90 |
||
|
50221L
|
50221L
MB256327 BRACKET, PARKING BRAKE CABLE, LH |
MB256327 |
US $19.98 |
||
|
50221R
|
50221R
MB256328
BRACKET, PARKING BRAKE CABLE, RH
|
MB256328 |
— | ||
|
50231
|
50231
MB256640 BRACKET, PARKING BRAKE RELEASE CABLE |
MB256640 |
US $18.50 |
||
|
50241B
|
50241B
MB256661 BRACKET, PARKING BRAKE FR CABLE, RR |
MB256661 |
US $18.50 |
||
|
50241C
|
50241C
MB256298 BRACKET, PARKING BRAKE FR CABLE, RR |
MB256298 |
US $18.50 |
||
|
50264
|
50264
MB256306 CABLE, PARKING BRAKE, FR1523 |
MB256306 |
US $93.24 |
||
|
50265L
|
50265L
MB256826 CABLE, PARKING BRAKE, RR LH1741 |
MB256826 |
US $108.04 |
||
|
50265R
|
50265R
MB256827 CABLE, PARKING BRAKE, RR RH1765 |
MB256827 |
US $108.04 |
||
|
50275
|
50275
MA125892 CLIP, PARKING BRAKE CABLE |
MA125892 |
US $4.59 |
||
|
50275
|
50275
MB520849 CLIP, PARKING BRAKE CABLE |
MB520849 |
from US $1.52 |
||
|
50294
|
50294
MB277891 EQUALIZER, PARKING BRAKE CABLE |
MB277891 |
US $6.07 |
||
|
50298B
|
50298B
MB256302 CLAMP, PARKING BRAKE CABLE |
MB256302 |
US $5.77 |
||
|
50298C
|
50298C
MB256401 CLAMP, PARKING BRAKE CABLE |
MB256401 |
US $5.47 |
||
|
50298D
|
50298D
MB004800 CLAMP, PARKING BRAKE CABLE |
MB004800 |
US $3.55 |
||
|
50298E
|
50298E
MB004792 CLAMP, PARKING BRAKE CABLE |
MB004792 |
US $4.44 |
||
|
50298F
|
50298F
MB256326 CLAMP, PARKING BRAKE CABLE |
MB256326 |
US $5.62 |
||
|
50298H
|
50298H
MB256379 CLAMP, PARKING BRAKE CABLE |
MB256379 |
US $5.61 |
||
|
50303
|
50303
MB256770 HOLDER, PARKING BRAKE CABLE ADJUSTER |
MB256770 |
US $2.46 |
||
|
50311
|
50311
MB520266 KNOB, PARKING BRAKE RELEASE |
MB520266 |
US $96.94 |
||
|
50342A
|
50342A
MB520270 PEDAL ASSY, PARKING BRAKE |
MB520270 |
US $624.62 |
||
|
50365
|
50365
MB256411 PLATE, PARKING BRAKE PEDAL BRACKET |
MB256411 |
US $7.10 |
||
|
50399
|
50399
MB012077 SEAL, CLUTCH M/CYL |
MB012077 |
from US $1.50 |
||
|
50961B
|
50961B
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
50961C
|
50961C
MB151106 WASHER, CLUTCH M/CYL10 |
MB151106 |
US $2.74 |
||
|
50968B
|
50968B
MF473490 PIN, CLUTCH M/CYLClevis,10x20 |
MF473490 |
US $2.66 |
||
|
50968C
|
50968C
MF472042 PIN, CLUTCH PEDALSplit,2x30 |
MF472042 |
US $0.96 |
||
|
50968C
|
50968C
MF472052 PIN, FUEL TANKSplit,2.5x20 |
MF472052 |
US $0.96 |
||
|
50968D
|
50968D
MA151731
PIN, PARKING BRAKE LEVER
|
MA151731 |
— | ||
|
50969
|
50969
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
50976B
|
50976B
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
50976C
|
50976C
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
50976D
|
50976D
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
50977
|
50977
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
50979
|
50979
MF350027 SCREW, CARB INR |
MF350027 |
US $1.92 |
||
|
50983
|
50983
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
50983
|
50983
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
50989E
|
50989E
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
50989F
|
50989F
MF243657 BOLT, TIMING POWER TRAIN CASEWasher assembled,8x35 |
MF243657 |
US $0.82 |
