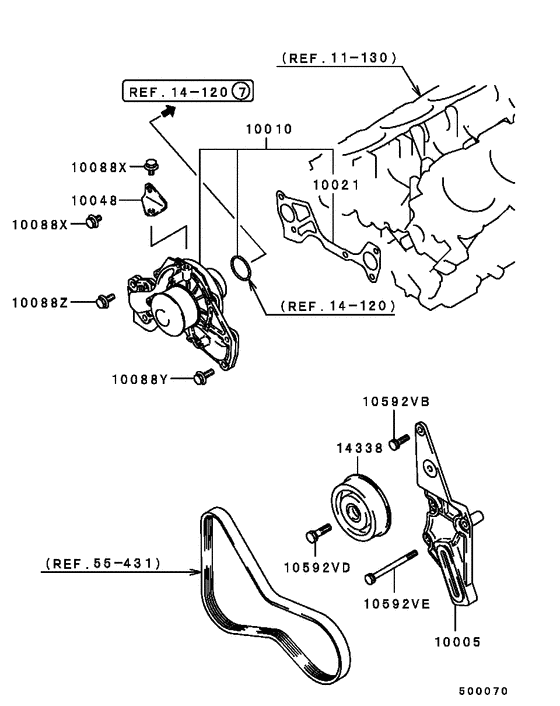

Water pump (DOHC) Diagram Mitsubishi DEBONAIR V
- Year
- 1989 - 1992
- Sales region
- Japan
- Note
- ROYAL(DOHC),4FA/T
- transmission
- 4FA/T
- grade
- ROYAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10005
|
10005
MB849253 BRACKET, WATER PUMP IDLER PULLEY |
MB849253 |
US $158.36 |
||
|
10005
|
10005
MD104060 BRACKET, WATER PUMP IDLER PULLEY |
MD104060 |
US $60.68 |
||
|
10010
|
10010
MD997244 WATER PUMP KIT |
MD997244 |
US $288.60 |
||
|
10010
|
10010
MD997643
WATER PUMP KIT
|
MD997643 |
— | ||
| replacement | |||||
|
10010
|
10010
MD972005
WATER PUMP KIT
|
MD972005 |
— | ||
|
10021
|
10021
MD101925 GASKET, WATER PUMP |
MD101925 |
US $8.88 |
||
|
10021
|
10021
MD145869 GASKET, WATER PUMP |
MD145869 |
US $8.88 |
||
|
10048
|
10048
MD133859 STAY, WATER PUMP |
MD133859 |
US $5.92 |
||
|
10088X
|
10088X
MF140222 BOLT, ENG HANGERFlange,8x14 |
MF140222 |
from US $0.98 |
||
|
10088Y
|
10088Y
MD175017
BOLT, WATER PUMP
|
MD175017 |
— | ||
|
10088Y
|
10088Y
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
10088Z
|
10088Z
MF140226 BOLT, ENG OIL PANFlange,8x22 |
MF140226 |
from US $1.31 |
||
|
10088Z
|
10088Z
MF244853 BOLT, ENG RR MOUNTINGWasher assembled,8x25 |
MF244853 |
from US $0.82 |
||
|
10592VB
|
10592VB
MD104062 BOLT, COOLING FANWasher assembled,10x27 |
MD104062 |
US $3.26 |
||
|
10592VB
|
10592VB
MF244853 BOLT, ENG RR MOUNTINGWasher assembled,8x25 |
MF244853 |
from US $0.82 |
||
|
10592VD
|
10592VD
MF241886 BOLT, COOLING FANWasher assembled,10x35 |
MF241886 |
from US $1.50 |
||
|
10592VE
|
10592VE
MF244870 BOLT, A/C COMPRESSORWasher assembled,8x100 |
MF244870 |
from US $2.05 |
||
|
14338
|
14338
MD102451 TENSIONER, ALTERNATOR DRIVE BELT |
MD102451 |
US $87.32 |
||
|
14338
|
14338
MD161716
TENSIONER, ALTERNATOR DRIVE BELT
|
MD161716 |
— | ||
| replacement | |||||
|
14338
|
14338
MD318474 TENSIONER, ALTERNATOR DRIVE BELT |
MD318474 |
from US $101.56 |
||
|
11 130
|
Cylinder block
11 130
|
||||
|
11 130
|
Cylinder block
11 130
|
||||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
|
55 431
|
A/c cond, piping(auto,full:a)
55 431
|
||||
|
55 431
|
A/c cond, piping(auto,full:a)
55 431
|
||||
|
55 431
|
A/c cond, piping(auto,full:a)
55 431
|
||||
|
55 431
|
A/c cond, piping(auto,full:a)
55 431
|
||||
