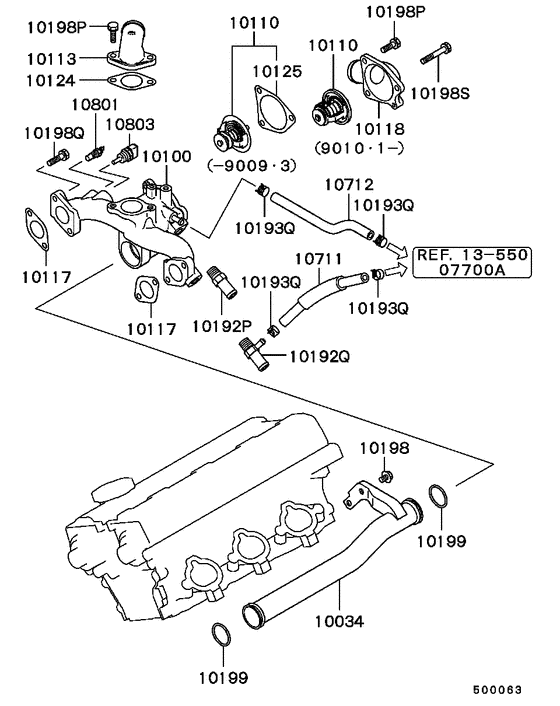

Water pipe & thermostat (DOHC) Diagram Mitsubishi DEBONAIR V
- Year
- 1989 - 1992
- Sales region
- Japan
- Note
- AQUASCUTUM(DOHC),4FA/T
- transmission
- 4FA/T
- grade
- AQUASCUTUM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD103966 PIPE, WATER PUMP INLET |
MD103966 |
US $99.16 |
||
|
10034
|
10034
MD146833 PIPE, WATER PUMP INLET |
MD146833 |
US $109.44 |
||
|
10100
|
10100
MD146830
CASE, THERMOSTAT
|
MD146830 |
— | ||
|
10100
|
10100
MD174229
CASE, THERMOSTAT
|
MD174229 |
— | ||
|
10110
|
10110
MD174233
THERMOSTAT KIT
|
MD174233 |
— | ||
| replacement | |||||
|
10110
|
10110
1305A191 THERMOSTAT KIT82С |
1305A191 |
from US $15.78 |
||
|
10110
|
10110
MD997221
THERMOSTAT KIT
|
MD997221 |
— | ||
| replacement | |||||
|
10110
|
10110
MD972903 THERMOSTAT KIT88 |
MD972903 |
from US $34.18 |
||
|
10110
|
10110
MD997644 THERMOSTAT KIT82 |
MD997644 |
US $56.24 |
||
|
10113
|
10113
MD074115 FITTING, COOLING WATER OUTLET HOSE |
MD074115 |
US $28.12 |
||
|
10113
|
10113
MD104835 FITTING, COOLING WATER OUTLET HOSE |
MD104835 |
US $38.48 |
||
|
10113
|
10113
MD147638 FITTING, COOLING WATER OUTLET HOSE |
MD147638 |
US $22.94 |
||
|
10117
|
10117
MD155060
GASKET, THERMOSTAT WATER HOSE FITTING
|
MD155060 |
— | ||
| replacement | |||||
|
10117
|
10117
MD319539 GASKET, THERMOSTAT CASE |
MD319539 |
from US $6.26 |
||
|
10118
|
10118
MD146832
FITTING, COOLING WATER INLET HOSE
|
MD146832 |
— | ||
|
10124
|
10124
MD145866 GASKET, COOLING WATER INLET HOSE FITTING |
MD145866 |
US $5.18 |
||
|
10124
|
10124
MD165017 GASKET, COOLING WATER OUTLET HOSE FITTING |
MD165017 |
US $8.07 |
||
|
10125
|
10125
MD118040
GASKET, THERMOSTAT WATER HOSE FITTING
|
MD118040 |
— | ||
| replacement | |||||
|
10125
|
10125
MD184011 GASKET, THERMOSTAT WATER HOSE FITTING |
MD184011 |
US $8.48 |
||
|
10125
|
10125
MD146834 GASKET, THERMOSTAT COVER |
MD146834 |
US $9.77 |
||
|
10192P
|
10192P
MD020631 JOINT, CYLINDER HEAD |
MD020631 |
from US $13.27 |
||
|
10192Q
|
10192Q
MD020630 JOINT, INLET MANIFOLD |
MD020630 |
from US $13.55 |
||
|
10193Q
|
10193Q
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
10193Q
|
10193Q
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198P
|
10198P
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
10198Q
|
10198Q
MF241257 BOLT, CRANKCASEWasher assembled,8x30 |
MF241257 |
from US $1.42 |
||
|
10198S
|
10198S
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
10199
|
10199
MD030764 O-RING, WATER PUMP INRD=33.4 |
MD030764 |
from US $2.81 |
||
|
10199
|
10199
MD147332 O-RING, COOLING WATER LINE35.1 |
MD147332 |
from US $3.18 |
||
|
10711
|
10711
MD103789 HOSE, COOLING WATER LINE |
MD103789 |
US $12.28 |
||
|
10711
|
10711
MD168561 HOSE, THROTTLE BODY WATER FEED8x140 |
MD168561 |
US $8.62 |
||
|
10712
|
10712
MD068186 HOSE, THROTTLE BODY WATER RETURN8x180 |
MD068186 |
US $9.17 |
||
|
10712
|
10712
MD103790 HOSE, COOLING WATER LINE9x115 |
MD103790 |
US $6.36 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD069879
SENSOR UNIT, WATER TEMPERATURE
|
MD069879 |
— | ||
|
10803
|
10803
MD149338 SENSOR UNIT, WATER TEMPERATURE |
MD149338 |
from US $82.08 |
||
|
