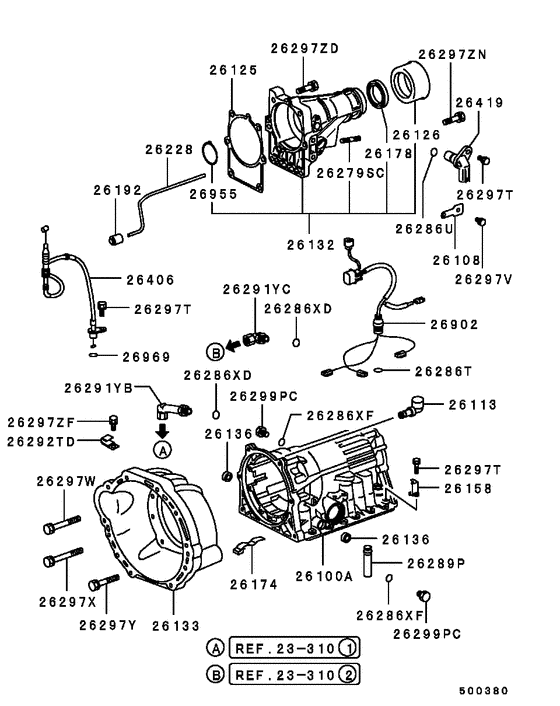

A/t case (ALL (CASE UPPER SIDE)) Diagram Mitsubishi DELICA CARGO
- Year
- 1996 - 1997
- Sales region
- Japan
- Note
- EXCEED(LONG/CRYSTAL-LITE ROOF),4CA/T
- drive
- 2WD
- transmission
- 4CA/T
- grade
- EXCEED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26100A
|
26100A
MR195957 CASE ASSY, A/T |
MR195957 |
US $1,483.20 |
||
|
26108
|
26108
MR166200 BRACKET, A/T CASE CONNECTOR CLAMP |
MR166200 |
US $6.96 |
||
|
26113
|
26113
MD951743 BREATHER, A/T CASE |
MD951743 |
US $6.43 |
||
|
26125
|
26125
MB896468 GASKET, A/T EXTENSION HOUSING |
MB896468 |
US $14.36 |
||
|
26126
|
26126
MD609336 GUARD, M/T EXTENSION HOUSING DUST SEAL |
MD609336 |
US $33.30 |
||
|
26132
|
26132
MR195992 HOUSING, A/T CASE EXTENSION |
MR195992 |
US $749.84 |
||
|
26133
|
26133
MR195954 HOUSING, A/T TORQUE CONVERTER |
MR195954 |
US $633.36 |
||
|
26136
|
26136
MR166223 OIL SEAL, A/T CONVERTER HOUSING |
MR166223 |
from US $5.46 |
||
|
26158
|
26158
MR166195 PLATE, A/T CASE |
MR166195 |
US $6.81 |
||
|
26174
|
26174
MR166225 SPRING, A/T CASE GEAR GUIDE |
MR166225 |
US $13.62 |
||
|
26178
|
26178
MD951482 OIL SEAL, A/T CASE MANUAL CONTROL SHAFT |
MD951482 |
from US $14.64 |
||
|
26192
|
26192
MR195933 SEAL, A/T EXTENSION HOUSING TUBE |
MR195933 |
US $10.95 |
||
|
26228
|
26228
MR195934 TUBE, A/T CASE |
MR195934 |
US $10.66 |
||
|
26279SC
|
26279SC
MD951847 STUD, A/T CASE10x25 |
MD951847 |
US $2.81 |
||
|
26286T
|
26286T
MR166197 O-RING, A/T CASE17.8 |
MR166197 |
US $4.44 |
||
|
26286U
|
26286U
MR166199 O-RING, A/T CASE |
MR166199 |
US $6.96 |
||
|
26286XD
|
26286XD
MR166204 O-RING, A/T CASE11.6x1.9 |
MR166204 |
from US $4.23 |
||
|
26286XF
|
26286XF
MD951630 O-RING, A/T CASE6.07 |
MD951630 |
US $2.96 |
||
|
26289P
|
26289P
MR166224 GASKET, A/T CASE |
MR166224 |
US $24.42 |
||
|
26291YB
|
26291YB
MR195969 JOINT, A/T CASE |
MR195969 |
US $54.02 |
||
|
26291YC
|
26291YC
MR166205 JOINT, A/T CASE |
MR166205 |
US $47.36 |
||
|
26292TD
|
26292TD
MR166191 CLAMP, A/T CASE |
MR166191 |
US $6.36 |
||
|
26297T
|
26297T
MR166190 O-RING, A/T CONTROL EQUIP6x16 |
MR166190 |
US $3.85 |
||
|
26297V
|
26297V
MR166201 BOLT, A/T CASEWasher assembled,8x12 |
MR166201 |
US $2.66 |
||
|
26297W
|
26297W
MR166221 BOLT, A/T CASEWasher assembled,12x45 |
MR166221 |
US $7.55 |
||
|
26297X
|
26297X
MR166222 BOLT, A/T CASEWasher assembled,12x45 |
MR166222 |
US $7.10 |
||
|
26297Y
|
26297Y
MD609078 BOLT, A/T CASEWasher assembled,10x35 |
MD609078 |
US $3.55 |
||
|
26297ZD
|
26297ZD
MD609421 BOLT, A/T CASEWasher assembled,10x45 |
MD609421 |
US $3.70 |
||
|
26297ZF
|
26297ZF
MD609205 BOLT, A/T CASEWasher assembled,6x10 |
MD609205 |
US $1.92 |
||
|
26297ZN
|
26297ZN
MR195932 STUD, A/T CASE |
MR195932 |
US $12.28 |
||
|
26299PC
|
26299PC
MD951631 PLUG, A/T CASE |
MD951631 |
US $3.85 |
||
|
26406
|
26406
MR195955 CABLE, A/T THROTTLE CONTROL |
MR195955 |
US $115.44 |
||
|
26419
|
26419
MR195966 SENSOR, A/T SPEED |
MR195966 |
US $232.56 |
||
|
26902
|
26902
MR195958 HARNESS, A/T |
MR195958 |
US $226.44 |
||
|
26902
|
26902
MR263031 HARNESS, A/T |
MR263031 |
US $229.40 |
||
|
26955
|
26955
MR195931 WIRE, A/T CASE |
MR195931 |
US $6.81 |
||
|
26969
|
26969
MB896458 O-RING, A/T CONTROL EQUIP9.2 |
MB896458 |
US $3.28 |
||
|
