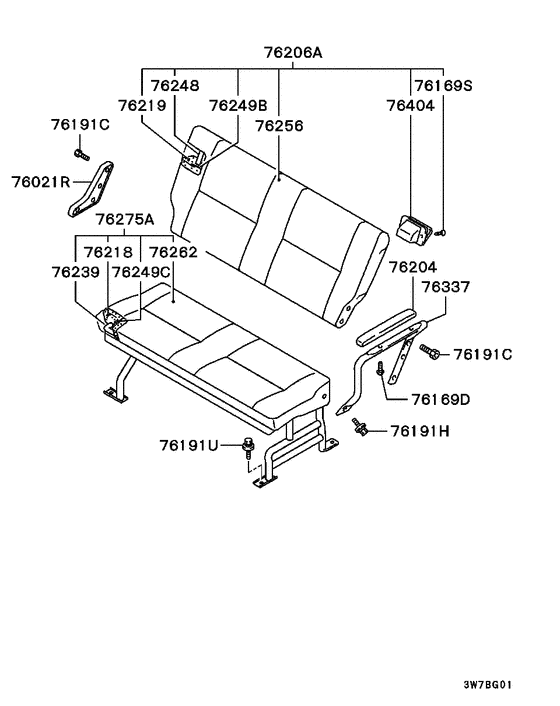

Rear seat (ALL) Diagram Mitsubishi DELICA CARGO
- Year
- 1994 - 1999
- Sales region
- Japan
- Note
- G(LONG,HIGH ROOF),5CM/T
- drive
- 2WD
- transmission
- 5CM/T
- grade
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76021R
|
76021R
MT411246 BRACKET, FR SEAT |
MT411246 |
US $101.52 |
||
|
76169D
|
76169D
MF360316 SCREW, RR SEATWasher assembled,6x25 |
MF360316 |
US $3.46 |
||
|
76169S
|
76169S
MF453914 SCREW, FR SEATTapping,4x14 |
MF453914 |
from US $0.76 |
||
|
76191C
|
76191C
MB824334 BOLT, 3RD SEATWasher assembled |
MB824334 |
US $4.03 |
||
|
76191H
|
76191H
MS240910 BOLT, SPARE FUEL TANK SUPPORTWasher assembled,8x20 |
MS240910 |
US $2.11 |
||
|
76191U
|
76191U
MU241027 BOLT, FR SEATWasher assembled,10x37 |
MU241027 |
US $4.22 |
||
|
76204
|
76204
MR733644 ARMREST, 2ND SEAT |
MR733644 |
US $305.28 |
||
|
76206A
|
76206A
MR738766 BACK ASSY, 2ND SEAT |
MR738766 |
US $982.08 |
||
|
76206A
|
76206A
MR775825 BACK ASSY, 2ND SEAT |
MR775825 |
US $982.08 |
||
|
76218
|
76218
MR140730 PAD, 2ND SEAT CUSHION |
MR140730 |
US $272.16 |
||
|
76219
|
76219
MR140732 PAD, 2ND SEAT BACK |
MR140732 |
US $272.16 |
||
|
76239
|
76239
MR140724 FRAME, 2ND SEAT CUSHION |
MR140724 |
US $277.92 |
||
|
76248
|
76248
MR742783 FRAME, 2ND SEAT BACK |
MR742783 |
US $288 |
||
|
76249B
|
76249B
MB042372 WIRE, RR SEAT TRIMMING2.6x300 |
MB042372 |
US $1.87 |
||
|
76249B
|
76249B
MB042939 WIRE, 2ND SEAT TRIMMING1.6x780 |
MB042939 |
US $3.31 |
||
|
76249C
|
76249C
MB042372 WIRE, RR SEAT TRIMMING2.6x300 |
MB042372 |
US $1.87 |
||
|
76256
|
76256
MR738827 COVER, 2ND SEAT BACK |
MR738827 |
US $511.20 |
||
|
76256
|
76256
MR775845 COVER, 2ND SEAT BACK |
MR775845 |
US $511.20 |
||
|
76262
|
76262
MR738825 COVER, 2ND SEAT CUSHION |
MR738825 |
US $511.20 |
||
|
76262
|
76262
MR775838 COVER, 2ND SEAT CUSHION |
MR775838 |
US $511.20 |
||
|
76275A
|
76275A
MR738764 CUSHION ASSY, 2ND SEAT |
MR738764 |
US $982.08 |
||
|
76275A
|
76275A
MR775818 CUSHION ASSY, 2ND SEAT |
MR775818 |
US $982.08 |
||
|
76337
|
76337
MR747542 PIPE, 2ND SEAT ARMREST |
MR747542 |
US $142.56 |
||
|
76404
|
76404
MB253130 ASHTRAY, RR DOOR TRIM |
MB253130 |
US $37.44 |
