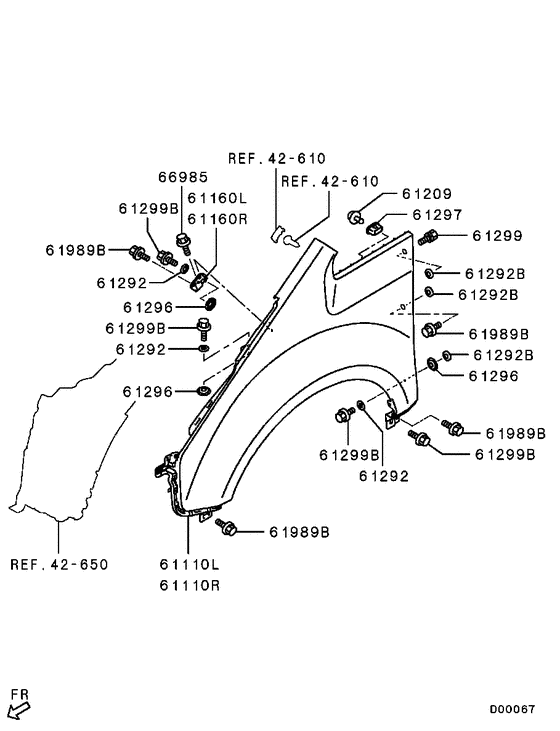

Fender & front end cover Diagram Mitsubishi DELICA D:5
- Year
- 2007 - 2009
- Sales region
- Japan
- Note
- G-PREMIUM PACKAGE/ROADEST(4WD/7P),CVT
- drive
- 4WD
- transmission
- CVT
- grade
- G-PREMIUM PACKA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61110L
|
61110L
5220C821 FENDER, FR LH |
5220C821 |
US $471.74 |
||
|
61110L
|
61110L
5220D157 FENDER, FR LH |
5220D157 |
US $377.21 |
||
|
61110R
|
61110R
5220C822 FENDER, FR RH |
5220C822 |
US $471.74 |
||
|
61110R
|
61110R
5220D158 FENDER, FR RH |
5220D158 |
US $388.75 |
||
|
61160L
|
61160L
5220C275 BRACKET, FR FENDER, LH |
5220C275 |
US $11.69 |
||
|
61160L
|
61160L
5301B705 BRACKET, FR FENDER, LH |
5301B705 |
US $6.22 |
||
|
61160L
|
61160L
5301B753 BRACKET, FR FENDER, LH |
5301B753 |
US $4.14 |
||
|
61160R
|
61160R
5220C276 BRACKET, FR FENDER, RH |
5220C276 |
US $11.69 |
||
|
61160R
|
61160R
5301B706 BRACKET, FR FENDER, RH |
5301B706 |
US $6.22 |
||
|
61160R
|
61160R
5301B754 BRACKET, FR FENDER, RH |
5301B754 |
US $4.14 |
||
|
61209
|
61209
5220C151 PIN, FR FENDER LID5.8x15.9 |
5220C151 |
US $0.89 |
||
|
61292
|
61292
5220C535 WASHER, FR FENDER10 |
5220C535 |
from US $1.04 |
||
|
61292B
|
61292B
MF450153 WASHER, TIMING POWER TRAIN CASEPlain,6 |
MF450153 |
US $0.96 |
||
|
61296
|
61296
5220B372 COLLAR, FR FENDER11 |
5220B372 |
from US $1.33 |
||
|
61297
|
61297
5220C150 GROMMET, FR FENDER31.7x16.3 |
5220C150 |
US $1.04 |
||
|
61299
|
61299
MF247224 BOLT, FUEL TANKWasher assembled,6x16 |
MF247224 |
from US $1.48 |
||
|
61299B
|
61299B
MS100222 BOLT, RESISTORFlange,6x14 |
MS100222 |
from US $0.57 |
||
|
61989B
|
61989B
MS100222 BOLT, RESISTORFlange,6x14 |
MS100222 |
from US $0.57 |
||
|
66985
|
66985
MF140058 BOLT, GEARSHIFT LINKFlange,10x20 |
MF140058 |
from US $1.42 |
||
|
66985
|
66985
MF140060 BOLT, ENG FR CASEFlange,10x25 |
MF140060 |
from US $0.99 |
||
|
66985
|
66985
MS100222 BOLT, RESISTORFlange,6x14 |
MS100222 |
from US $0.57 |
||
|
42 610
|
Loose panel
42 610
|
||||
|
42 610
|
Loose panel
42 610
|
||||
|
42 610
|
Loose panel
42 610
|
||||
|
42 650
|
Plugs,covers & shield
42 650
|
||||
|
42 650
|
Plugs,covers & shield
42 650
|
||||
|
42 650
|
Plugs,covers & shield
42 650
|
||||
