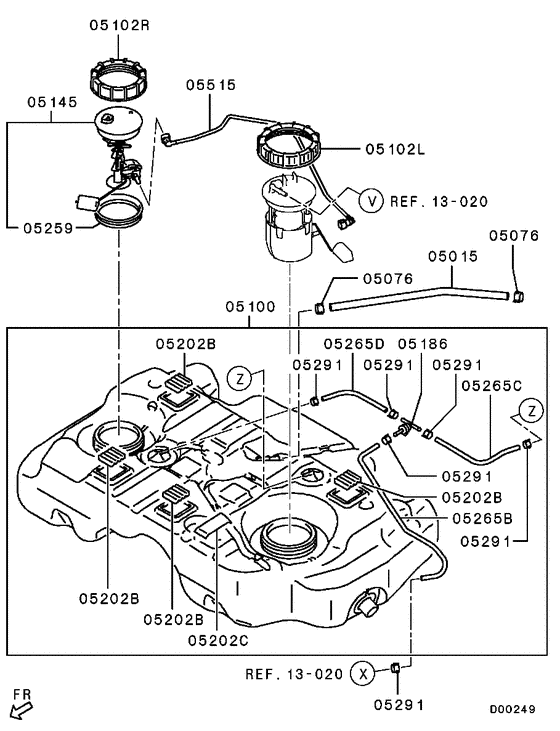

Fuel tank (FUEL TANK) Diagram Mitsubishi DELICA D:5
- Year
- 2007 - 2009
- Sales region
- Japan
- Note
- G-PREMIUM PACKAGE/ROADEST(4WD/7P),CVT
- drive
- 4WD
- transmission
- CVT
- grade
- G-PREMIUM PACKA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05015
|
05015
1715A064 HOSE, FUEL FILLER NECK BREATHER |
1715A064 |
US $11.40 |
||
|
05076
|
05076
MS660168 CLIP, ROCKER COVERD=17.8 |
MS660168 |
from US $1.13 |
||
|
05100
|
05100
1700A350 FUEL TANK |
1700A350 |
US $525.62 |
||
|
05102L
|
05102L
1718A060 CAP, FUEL TANK PUMP & GAUGE MOUNTING, LH |
1718A060 |
US $11.10 |
||
|
05102R
|
05102R
1718A071 CAP, FUEL TANK PUMP & GAUGE MOUNTING, RH |
1718A071 |
US $8.29 |
||
|
05145
|
05145
1718A077 GAUGE UNIT, FUEL TANK |
1718A077 |
US $96.94 |
||
| replacement | |||||
|
05145
|
05145
1718A082 GAUGE UNIT, FUEL TANK |
1718A082 |
US $79.92 |
||
|
05145
|
05145
1718A082 GAUGE UNIT, FUEL TANK |
1718A082 |
US $79.92 |
||
|
05186
|
05186
1755A050 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
1755A050 |
US $11.40 |
||
|
05202B
|
05202B
1705A060 PAD, FUEL TANK PROTECTOR |
1705A060 |
US $2.52 |
||
|
05202C
|
05202C
1705A125 PAD, FUEL TANK PROTECTOR |
1705A125 |
US $1.04 |
||
|
05259
|
05259
1760A225 GASKET, FUEL TANK PUMP |
1760A225 |
US $5.03 |
||
|
05265B
|
05265B
1742A213 HOSE, FUEL TANK |
1742A213 |
US $9.47 |
||
|
05265C
|
05265C
1742A211 HOSE, FUEL TANK |
1742A211 |
US $4.59 |
||
|
05265D
|
05265D
1742A212 HOSE, FUEL TANK |
1742A212 |
US $4 |
||
|
05291
|
05291
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $1.13 |
||
|
05515
|
05515
1741A396 TUBE, FUEL PUMP SUCTION |
1741A396 |
US $42.92 |
||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
