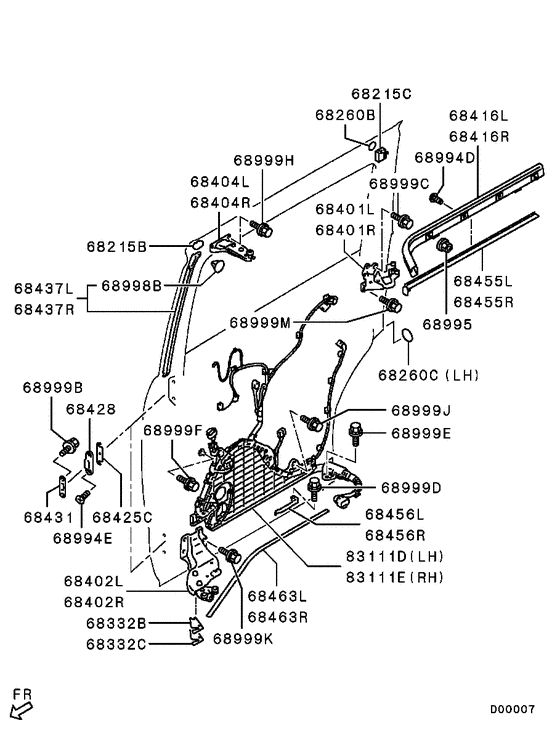

Rear slide door hardware (W/O POWER SLIDE DOOR) Diagram Mitsubishi DELICA D:5
- Year
- 2007 - 2009
- Sales region
- Japan
- Note
- G-PREMIUM PACKAGE/ROADEST(4WD/7P),CVT
- drive
- 4WD
- transmission
- CVT
- grade
- G-PREMIUM PACKA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68215B
|
68215B
5762A063 DAMPER, RR DOOR |
5762A063 |
US $1.63 |
||
|
68215C
|
68215C
5762A061 DAMPER, RR DOOR |
5762A061 |
US $2.07 |
||
|
68260B
|
68260B
MB368383 FILM, TRAILER SOCKET PROTECTOR |
MB368383 |
US $2.19 |
||
|
68260C
|
68260C
MB368384 FILM, RR DOOR DAMPER PROTECT30 |
MB368384 |
US $1.78 |
||
|
68401L
|
68401L
5760A067 ARM, RR DOOR CTR ROLLER, LH |
5760A067 |
US $179.08 |
||
|
68401R
|
68401R
5760A068 ARM, RR DOOR CTR ROLLER, RH |
5760A068 |
US $179.08 |
||
| replacement | |||||
|
68401R
|
68401R
5760A136 ARM, RR DOOR CTR ROLLER, RH |
5760A136 |
US $168.26 |
||
|
68402L
|
68402L
5760A069 ARM, RR DOOR LWR ROLLER, LH |
5760A069 |
US $80.66 |
||
|
68402R
|
68402R
5760A070 ARM, RR DOOR LWR ROLLER, RH |
5760A070 |
US $80.66 |
||
|
68404L
|
68404L
5760A065 ARM, RR DOOR UPR ROLLER, LH |
5760A065 |
US $32.56 |
||
|
68404R
|
68404R
5760A066 ARM, RR DOOR UPR ROLLER, RH |
5760A066 |
US $32.56 |
||
|
68416L
|
68416L
5762A049 RAIL, RR DOOR, CTR LH |
5762A049 |
US $239.76 |
||
|
68416R
|
68416R
5762A050 RAIL, RR DOOR, CTR RH |
5762A050 |
US $239.76 |
||
|
68428
|
68428
MB142396 STOPPER, RR DOOR FEMALE |
MB142396 |
US $10.12 |
||
|
68431
|
68431
MB421151 STOPPER, RR DOOR BODY SIDE |
MB421151 |
US $9.85 |
||
|
68456L
|
68456L
5762A059 COVER, RR DOOR LWR ROLLER ARM, LH |
5762A059 |
US $4.59 |
||
|
68456R
|
68456R
5762A060 COVER, RR DOOR LWR ROLLER ARM, RH |
5762A060 |
US $4.59 |
||
|
68463L
|
68463L
5762A055 COVER, RR DOOR LWR RAIL, LH |
5762A055 |
US $14.50 |
||
|
68463R
|
68463R
5762A056 COVER, RR DOOR LWR RAIL, RH |
5762A056 |
US $14.50 |
||
|
68994D
|
68994D
MU001056 SCREW, RR SLIDE DOOR LOCKING8x16 |
MU001056 |
US $2.07 |
||
|
68994E
|
68994E
MF202095 SCREW, RR SLIDE DOOR LOCKINGMachine,8x20 |
MF202095 |
US $2.52 |
||
|
68995
|
68995
MU000971 NUT, RR SLIDE DOOR LOCKING |
MU000971 |
US $1.63 |
||
|
68999B
|
68999B
MF140022 BOLT, ACCEL CABLE SUPPORTFlange,8x14 |
MF140022 |
from US $1.03 |
||
|
68999C
|
68999C
MU000876 BOLT, FR DOOR HINGEFlange,8x24 |
MU000876 |
from US $1.04 |
||
|
68999D
|
68999D
MS100221 BOLT, RADIATOR SHROUDFlange,6x12 |
MS100221 |
from US $0.47 |
||
|
68999E
|
68999E
MF140022 BOLT, ACCEL CABLE SUPPORTFlange,8x14 |
MF140022 |
from US $1.03 |
||
|
68999F
|
68999F
MB133273 BOLT, FUEL LINEWasher assembled,6x16 |
MB133273 |
US $3.01 |
||
|
68999F
|
68999F
MF915000 BOLT, ROOM LAMPFlange,6x16 |
MF915000 |
US $1.64 |
||
|
68999H
|
68999H
MF140022 BOLT, ACCEL CABLE SUPPORTFlange,8x14 |
MF140022 |
from US $1.03 |
||
|
68999J
|
68999J
MU001058 BOLT, RR SLIDE DOOR LOCKINGFlange,6.0x15.3 |
MU001058 |
US $1.48 |
||
|
68999K
|
68999K
MU140017 BOLT, FR DOOR HINGEFlange,8x20 |
MU140017 |
US $3.28 |
||
|
68999M
|
68999M
MU000876 BOLT, FR DOOR HINGEFlange,8x24 |
MU000876 |
from US $1.04 |
||
|
68999M
|
68999M
MU140017 BOLT, FR DOOR HINGEFlange,8x20 |
MU140017 |
US $3.28 |
||
|
83111D
|
83111D
5780A013 HARNESS, RR DOOR |
5780A013 |
US $582.40 |
||
|
83111D
|
83111D
5780A051 HARNESS, RR DOOR |
5780A051 |
US $528.53 |
||
|
83111E
|
83111E
5780A014 HARNESS, RR DOOR |
5780A014 |
US $586.77 |
||
|
83111E
|
83111E
5780A052 HARNESS, RR DOOR |
5780A052 |
US $532.90 |
||
