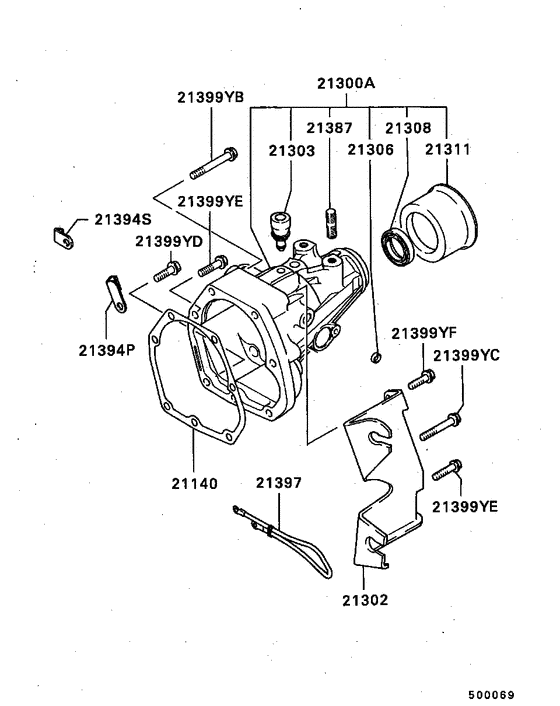

M/t case (-8807.3 (EXTENSION HOUSING)) Diagram Mitsubishi DELICA STAR WAGON
- Year
- 1986 - 1993
- Sales region
- Japan
- Note
- DX(3DOOR/3SEATER),4CM/T
- drive
- 2WD
- transmission
- 4CM/T
- grade
- DX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21140
|
21140
MD700731 GASKET, M/T CASE, RR |
MD700731 |
US $3.55 |
||
|
21140
|
21140
MD705865 GASKET, M/T CASE, RR |
MD705865 |
US $5.20 |
||
|
21300A
|
21300A
MD724082 HOUSING ASSY, M/T EXTENSION |
MD724082 |
US $792.06 |
||
|
21300A
|
21300A
MD724290 HOUSING ASSY, M/T EXTENSION |
MD724290 |
US $719.26 |
||
|
21302
|
21302
MD724939 BRACKET, M/T EXTENSION HOUSING CABLE SUPPORT |
MD724939 |
US $226.44 |
||
|
21303
|
21303
MD700945
BREATHER, M/T CASE
|
MD700945 |
— | ||
| replacement | |||||
|
21303
|
21303
MD727784 BREATHER, M/T CASE |
MD727784 |
from US $14.36 |
||
|
21306
|
21306
MF665532 CAP, CYLINDER HEAD12 |
MF665532 |
US $2.37 |
||
|
21308
|
21308
MD701430
OIL SEAL, M/T CASE EXTENSION HOUSING, RR
|
MD701430 |
— | ||
| replacement | |||||
|
21308
|
21308
MR983368 OIL SEAL, M/T CASE EXTENSION HOUSING, RR |
MR983368 |
from US $5.44 |
||
|
21308
|
21308
MD703743
OIL SEAL, M/T CASE EXTENSION HOUSING, RR
|
MD703743 |
— | ||
| replacement | |||||
|
21308
|
21308
2504A012 OIL SEAL, M/T CASE EXTENSION HOUSING, RR |
2504A012 |
from US $4.39 |
||
|
21311
|
21311
MD701849 GUARD, M/T EXTENSION HOUSING DUST SEAL |
MD701849 |
US $11.84 |
||
|
21311
|
21311
MD703742 GUARD, M/T EXTENSION HOUSING DUST SEAL |
MD703742 |
US $7.80 |
||
|
21387
|
21387
MS401148 STUD, M/T EXTENSION HOUSING10x20 |
MS401148 |
US $2.07 |
||
|
21394P
|
21394P
MD701798 CLAMP, M/T CASE |
MD701798 |
US $2.96 |
||
|
21394P
|
21394P
MD703740 CLAMP, M/T EXTENSION HOUSING |
MD703740 |
US $2.87 |
||
|
21394S
|
21394S
MD701798 CLAMP, M/T CASE |
MD701798 |
US $2.96 |
||
|
21397
|
21397
MB542528 CABLE, M/T EXTENSION HOUSINGT/m |
MB542528 |
US $4.74 |
||
|
21399YB
|
21399YB
MD700761 BOLT, M/T EXTENSION HOUSINGWasher assembled,8x35 |
MD700761 |
US $2.22 |
||
|
21399YB
|
21399YB
MD700764 BOLT, M/T CASEWasher assembled,8x65 |
MD700764 |
US $2.81 |
||
|
21399YC
|
21399YC
MD700764 BOLT, M/T CASEWasher assembled,8x65 |
MD700764 |
US $2.81 |
||
|
21399YC
|
21399YC
MD700771 BOLT, M/T CASEWasher assembled,8x60 |
MD700771 |
US $3.11 |
||
|
21399YD
|
21399YD
MD700760 BOLT, M/T CASEWasher assembled,8x30 |
MD700760 |
US $3.70 |
||
|
21399YE
|
21399YE
MD700761 BOLT, M/T EXTENSION HOUSINGWasher assembled,8x35 |
MD700761 |
US $2.22 |
||
|
21399YF
|
21399YF
MD724081 BOLT, M/T EXTENSION HOUSINGWasher assembled,8x70 |
MD724081 |
US $5.03 |
||
