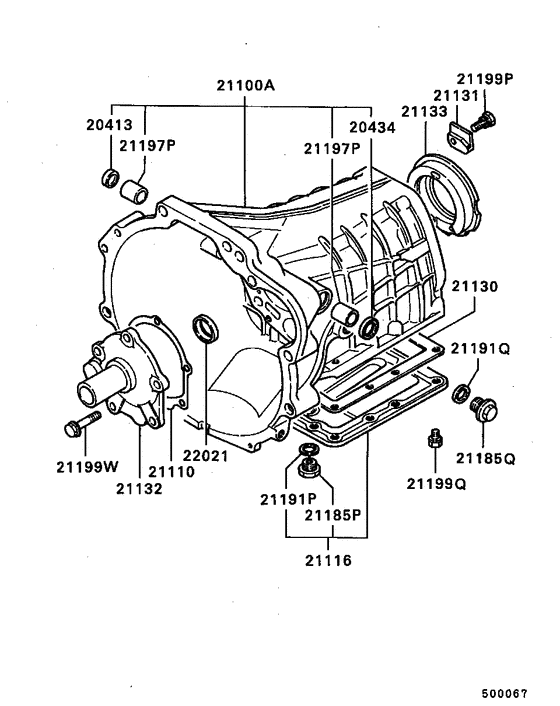

M/t case (-8807.3 (T/M CASE)) Diagram Mitsubishi DELICA STAR WAGON
- Year
- 1986 - 1993
- Sales region
- Japan
- Note
- DX(3DOOR/3SEATER),4CM/T
- drive
- 2WD
- transmission
- 4CM/T
- grade
- DX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20413
|
20413
MD701867 CAP, CLUTCH RELEASE FORK SHAFT |
MD701867 |
US $3.26 |
||
|
20434
|
20434
MD701721 OIL SEAL, CLUTCH RELEASE FORK SHAFT |
MD701721 |
US $4.14 |
||
|
21100A
|
21100A
MD700977 CASE ASSY, M/T |
MD700977 |
US $883.79 |
||
|
21100A
|
21100A
MD724086 CASE ASSY, M/T |
MD724086 |
US $934.75 |
||
|
21110
|
21110
MD701734 GASKET, M/T CASE FR BEARING RETAINER |
MD701734 |
US $3.85 |
||
|
21110
|
21110
MD703734 GASKET, M/T CASE FR BEARING RETAINER |
MD703734 |
US $3.56 |
||
|
21116
|
21116
MD700772 COVER, M/T CASE UNDER |
MD700772 |
US $45.14 |
||
|
21116
|
21116
MD703443 COVER, M/T CASE UNDER |
MD703443 |
US $39.67 |
||
|
21130
|
21130
MD700774 GASKET, M/T CASE UNDER COVER |
MD700774 |
US $5.62 |
||
|
21130
|
21130
MD703796 GASKET, M/T CASE UNDER COVER |
MD703796 |
from US $2.18 |
||
|
21131
|
21131
MD701776 PLATE, M/T RR BEARING RETAINER STOPPER |
MD701776 |
US $7.99 |
||
|
21132
|
21132
MD700472 RETAINER, M/T CASE FR BEARING |
MD700472 |
US $56.98 |
||
|
21132
|
21132
MD703388 RETAINER, M/T CASE FR BEARING |
MD703388 |
US $54.72 |
||
|
21133
|
21133
MB837206 RETAINER, M/T CASE RR BEARING |
MB837206 |
US $25.90 |
||
|
21133
|
21133
MD701415 RETAINER, M/T CASE RR BEARING |
MD701415 |
US $40.70 |
||
|
21133
|
21133
MD705856 RETAINER, M/T CASE RR BEARING |
MD705856 |
US $30.34 |
||
|
21185P
|
21185P
MB001293
PLUG, M/T CASE
|
MB001293 |
— | ||
| replacement | |||||
|
21185P
|
21185P
MB001265 PLUG KIT, RR AXLE HOUSING |
MB001265 |
from US $4.49 |
||
|
21185Q
|
21185Q
MD701850 PLUG, M/T CASE16 |
MD701850 |
from US $4.13 |
||
|
21191P
|
21191P
MD016339 GASKET, M/T CASE18 |
MD016339 |
from US $1.01 |
||
|
21191Q
|
21191Q
MF660036 GASKET, ACCEL CONTROL EQUIPD=16 |
MF660036 |
from US $0.76 |
||
|
21197P
|
21197P
MD701248 BUSHING, M/T CASE22x25 |
MD701248 |
US $5.62 |
||
|
21199P
|
21199P
MD704449
BOLT, M/T CASE
|
MD704449 |
— | ||
| replacement | |||||
|
21199P
|
21199P
32152W000P BOLT, M/T CASE |
32152W000P |
from US $2.69 |
||
|
21199P
|
21199P
MD734702
BOLT, A/T CASE
|
MD734702 |
— | ||
|
21199P
|
21199P
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
21199Q
|
21199Q
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
21199Q
|
21199Q
MF240651 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x16 |
MF240651 |
US $3.15 |
||
|
21199W
|
21199W
MD700759 BOLT, M/T CASEWasher assembled,8x25 |
MD700759 |
US $2.22 |
||
|
22021
|
22021
MD050608
OIL SEAL, BALANCER SHAFT, FR RH
|
MD050608 |
— | ||
| replacement | |||||
|
22021
|
22021
MD343565 OIL SEAL, BALANCER SHAFT, FR LH |
MD343565 |
from US $10.12 |
||
|
22021
|
22021
MD723202 OIL SEAL, M/T MAIN DRIVE PINION |
MD723202 |
from US $3.72 |
||
