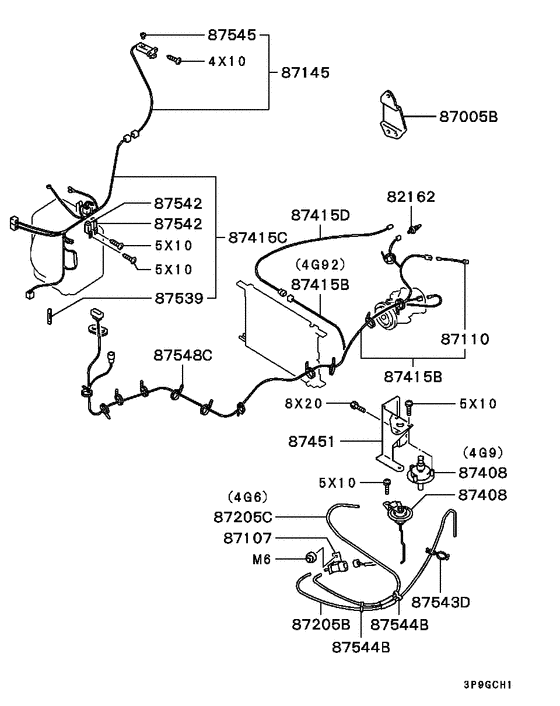

A/c cond, piping(manual:a) (A/C CONTROL,VACUUM HOSE(9406.1-)) Diagram Mitsubishi DELICA STAR WAGON
- Year
- 1994 - 1999
- Sales region
- Japan
- Note
- GL(4DOOR/FLAT FLOOR),4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GL
- body
- VAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82162
|
82162
MB439757
SWITCH, WATER TEMPERATURE
|
MB439757 |
— | ||
|
87005B
|
87005B
MR218264
BRACKET, A/C COMPRESSOR
|
MR218264 |
— | ||
|
87107
|
87107
MB113970 VALVE, ENG IDLE CONTROL SOLENOID |
MB113970 |
US $67.34 |
||
|
87110
|
87110
MB056932 FUSIBLE LINK2-conn,0.5 |
MB056932 |
US $7.70 |
||
|
87145
|
87145
MB380815
SWITCH, A/C FAN
|
MB380815 |
— | ||
|
87205B
|
87205B
MB439923
HOSE, A/C CONTROL VACUUM
|
MB439923 |
— | ||
|
87205C
|
87205C
MB439926
HOSE, A/C CONTROL VACUUM
|
MB439926 |
— | ||
|
87408
|
87408
MB332480
SWITCH, AUTO A/C VACUUM
|
MB332480 |
— | ||
|
87408
|
87408
MR218744 ACTUATOR, A/C ENG IDLE CONTROL |
MR218744 |
US $142.08 |
||
|
87415B
|
87415B
MR175516
HARNESS, A/C CONTROL
|
MR175516 |
— | ||
|
87415C
|
87415C
MB438644
HARNESS, A/C CONTROL
|
MB438644 |
— | ||
|
87539
|
87539
MS810913 FUSE, TAIL LAMPGlass tube type,10a |
MS810913 |
US $3.01 |
||
|
87542
|
87542
MB399789 RELAY, SUNROOF POWERSsa521a043 |
MB399789 |
from US $32.74 |
||
|
87544B
|
87544B
MD001843 CLAMP, CARB INR |
MD001843 |
US $2.96 |
||
|
87545
|
87545
MB276843
BULB, A/C CONTROL EQUIP
|
MB276843 |
— | ||
|
87548C
|
87548C
MD005473 BAND, ROCKER COVER140 |
MD005473 |
US $3.26 |
