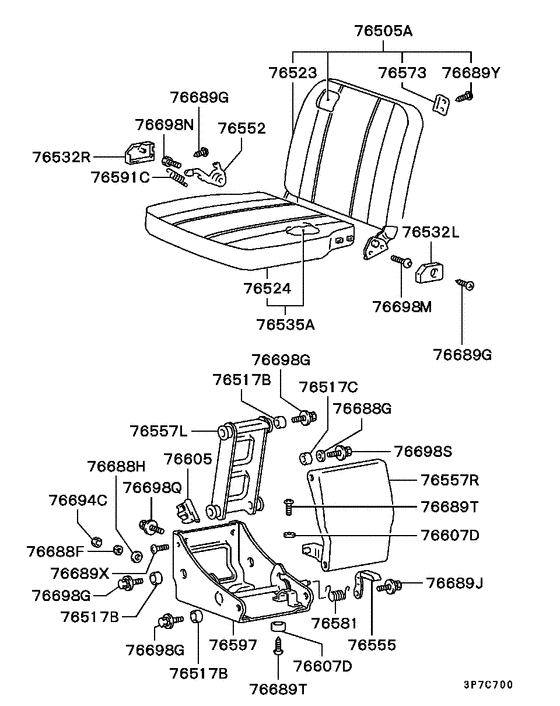

Third seat (JUMP SEAT) Diagram Mitsubishi DELICA STAR WAGON
- Year
- 1986 - 1990
- Sales region
- Japan
- Note
- DX(LONG/HIGH-ROOF),5CM/T
- drive
- 2WD
- transmission
- 5CM/T
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76517B
|
76517B
MB278660 COLLAR, RR SEAT |
MB278660 |
US $3.40 |
||
|
76517C
|
76517C
MB172522 COLLAR, FR SEAT |
MB172522 |
US $3.55 |
||
|
76532L
|
76532L
MB750337 COVER, 2ND SEAT HINGE, LH |
MB750337 |
US $15.54 |
||
|
76532R
|
76532R
MB750359 COVER, 2ND SEAT HINGE |
MB750359 |
US $15.54 |
||
|
76552
|
76552
MB191950 LEVER, 2ND JUMP SEAT HINGE |
MB191950 |
US $16.28 |
||
|
76555
|
76555
MB172529 LEVER, FR SEAT |
MB172529 |
US $11.22 |
||
|
76557L
|
76557L
MB750364 LINK, 2ND JUMP SEAT ADJUSTER, LH |
MB750364 |
US $39.22 |
||
|
76557R
|
76557R
MB750363 LINK, 2ND JUMP SEAT ADJUSTER, RH |
MB750363 |
US $42.92 |
||
|
76573
|
76573
MB557087 PROTECTOR, 2ND JUMP SEAT BACK |
MB557087 |
US $36.26 |
||
|
76581
|
76581
MB323038 SPRING, 2ND JUMP SEAT LINK LEVER |
MB323038 |
US $3.70 |
||
|
76591C
|
76591C
MB191951 SPRING, 2ND SEAT ADJUSTER LOCK LEVER |
MB191951 |
US $2.96 |
||
|
76597
|
76597
MB558431
SUPPORT, 2ND JUMP SEAT
|
MB558431 |
— | ||
|
76597
|
76597
MB716127
SUPPORT, 2ND JUMP SEAT
|
MB716127 |
— | ||
|
76597
|
76597
MB716128
SUPPORT, 2ND JUMP SEAT
|
MB716128 |
— | ||
|
76597
|
76597
MB754483 SUPPORT, 2ND JUMP SEAT |
MB754483 |
US $123.58 |
||
|
76597
|
76597
MB778892
SUPPORT, 2ND JUMP SEAT
|
MB778892 |
— | ||
|
76597
|
76597
MR613291
SUPPORT, 2ND JUMP SEAT
|
MR613291 |
— | ||
|
76597
|
76597
MR742748
SUPPORT, 2ND JUMP SEAT
|
MR742748 |
— | ||
|
76605
|
76605
MB323046 STOPPER, 2ND JUMP SEAT |
MB323046 |
US $3.40 |
||
|
76607D
|
76607D
MB173858 DAMPER, FR SEAT BACK |
MB173858 |
US $2.96 |
||
|
76688F
|
76688F
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
76688G
|
76688G
MB278663 WASHER, RR SEAT12.5 |
MB278663 |
US $2.37 |
||
|
76688H
|
76688H
MF450005 WASHER, FLYWHEEL HOUSINGPlain,8 |
MF450005 |
from US $1.01 |
||
|
76689G
|
76689G
MF456229 SCREW, RR SEATTapping,5x8 |
MF456229 |
US $2.07 |
||
|
76689J
|
76689J
MF351008 SCREW, FUEL TANKWasher assembled,5x12 |
MF351008 |
from US $0.98 |
||
|
76689T
|
76689T
MF456470 SCREW, RR SEATTapping,5x10 |
MF456470 |
US $1.78 |
||
|
76689X
|
76689X
MF456216 SCREW, RADIATOR GRILLETapping,4x10 |
MF456216 |
US $2.05 |
||
|
76689Y
|
76689Y
MS450173 SCREW, RADIATOR GRILLETapping,4x12 |
MS450173 |
US $1.48 |
||
|
76694C
|
76694C
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
76698G
|
76698G
MS240910 BOLT, SPARE FUEL TANK SUPPORTWasher assembled,8x20 |
MS240910 |
US $2.19 |
||
|
76698M
|
76698M
MA148040 BOLT, FR SEAT8x17 |
MA148040 |
US $4.14 |
||
|
76698N
|
76698N
MB191954 BOLT, RR SEAT8x20 |
MB191954 |
US $2.66 |
||
|
76698Q
|
76698Q
MF241264 BOLT, ENG FR CASEWasher assembled,8x55 |
MF241264 |
from US $1.54 |
||
|
76698S
|
76698S
MF243653 BOLT, ENG OIL COOLER LINEWasher assembled,8x25 |
MF243653 |
from US $1.05 |
||
|
76698S
|
76698S
MS240922 BOLT, STEPWasher assembled,8x25 |
MS240922 |
US $2.37 |
