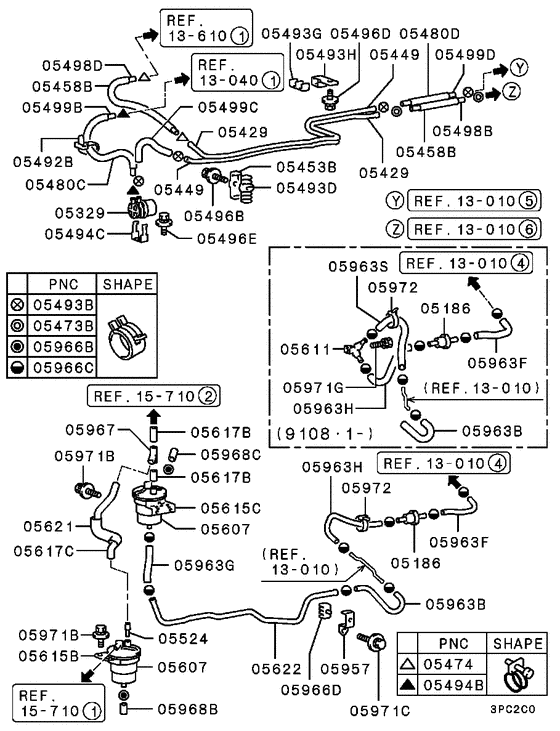

Fuel line & vapor gas control (ALL) Diagram Mitsubishi DELICA STAR WAGON
- Year
- 1986 - 1987
- Sales region
- Japan
- Note
- GLX,5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05186
|
05186
MB504075 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB504075 |
US $36.25 |
||
|
05329
|
05329
MB433774 STRAINER, FUEL |
MB433774 |
from US $10.66 |
||
|
05429
|
05429
MB433006 TUBE, FUEL LINE |
MB433006 |
US $23.68 |
||
|
05429
|
05429
MB433027 TUBE, FUEL LINE |
MB433027 |
US $30.34 |
||
|
05449
|
05449
MB433022 TUBE, FUEL MAIN |
MB433022 |
US $23.68 |
||
|
05449
|
05449
MB433029 TUBE, FUEL MAIN |
MB433029 |
US $20.72 |
||
|
05453B
|
05453B
MB554176 SUPPORT, FUEL LINE |
MB554176 |
US $10.40 |
||
|
05458B
|
05458B
MB032793
TUBE, FUEL RETURN LINE
|
MB032793 |
— | ||
|
05458B
|
05458B
MB044005
TUBE, FUEL TANK
|
MB044005 |
— | ||
| replacement | |||||
|
05458B
|
05458B
MB133481 TUBE, FUEL RETURN LINE |
MB133481 |
US $6.84 |
||
|
05473B
|
05473B
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05474
|
05474
MS660004 CLAMP, FUEL TANK13 |
MS660004 |
US $2.52 |
||
|
05480C
|
05480C
MB032792
TUBE, FUEL TANK
|
MB032792 |
— | ||
| replacement | |||||
|
05480C
|
05480C
MB220933 TUBE, FUEL LINESoft vinyl,16x560 |
MB220933 |
from US $3.30 |
||
|
05480D
|
05480D
MB032792
TUBE, FUEL TANK
|
MB032792 |
— | ||
| replacement | |||||
|
05480D
|
05480D
MB220933 TUBE, FUEL LINESoft vinyl,16x560 |
MB220933 |
from US $3.30 |
||
|
05492B
|
05492B
MB084080 BAND, HOIST CONTROL LINKL=129.5 |
MB084080 |
US $2.96 |
||
|
05493B
|
05493B
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
05493D
|
05493D
MB316724 CLIP, SPEEDOMETER CABLE6.2x4.5x4.5x7.8x6.2 |
MB316724 |
US $3.15 |
||
|
05493G
|
05493G
MB181581 CLIP, FUEL LINE8,6.1 |
MB181581 |
US $2.87 |
||
|
05493H
|
05493H
MB220876 CLIP, FUEL TANK |
MB220876 |
US $3.83 |
||
|
05494B
|
05494B
MS661006 CLAMP, ENG SPEED CONTROL EQUIPD=12 |
MS661006 |
US $3.42 |
||
|
05494C
|
05494C
MB433708 CLAMP, FUEL LINE7 |
MB433708 |
US $7.25 |
||
|
05496B
|
05496B
MS240050
BOLT, FUEL LINE
|
MS240050 |
— | ||
|
05496D
|
05496D
MS240041 BOLT, ENG OIL COOLER LINEWasher assembled,6x16 |
MS240041 |
from US $1.01 |
||
|
05496E
|
05496E
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
05498B
|
05498B
MS605896
HOSE, FUEL TANK
|
MS605896 |
— | ||
| replacement | |||||
|
05498B
|
05498B
MU601799 HOSE, FUEL TANK8x2000 |
MU601799 |
US $87.55 |
||
|
05498B
|
05498B
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05498D
|
05498D
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05499B
|
05499B
MS642896 HOSE, FUEL TANK8x2000 |
MS642896 |
US $49.58 |
||
|
05499C
|
05499C
MS642896 HOSE, FUEL TANK8x2000 |
MS642896 |
US $49.58 |
||
|
05499D
|
05499D
MS642896 HOSE, FUEL TANK8x2000 |
MS642896 |
US $49.58 |
||
|
05524
|
05524
MB504654 VALVE, FUEL PUMP FUEL RETURN |
MB504654 |
US $12.43 |
||
|
05607
|
05607
MB248711 CANISTER, FUEL VAPOR |
MB248711 |
US $97.68 |
||
|
05607
|
05607
MB554206
CANISTER, FUEL VAPOR
|
MB554206 |
— | ||
|
05615B
|
05615B
MB504670 HOLDER, FUEL VAPOR CANISTER |
MB504670 |
US $17.76 |
||
|
05615C
|
05615C
MB433009 HOLDER, FUEL VAPOR CANISTER |
MB433009 |
US $13.62 |
||
|
05617B
|
05617B
MB008744
HOSE, FUEL VAPOR PURGE
|
MB008744 |
— | ||
|
05617C
|
05617C
MB504827 HOSE, FUEL VAPOR PURGE |
MB504827 |
US $34.78 |
||
|
05621
|
05621
MB329608 PAD, FUEL VAPOR HOSE |
MB329608 |
US $7.99 |
||
|
05622
|
05622
MB433011 PIPE, FUEL VAPOR |
MB433011 |
US $20.72 |
||
|
05957
|
05957
MB554177 STAY, FUEL VAPOR CONTROL LINE |
MB554177 |
US $8.14 |
||
|
05963B
|
05963B
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05963F
|
05963F
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05963G
|
05963G
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05963H
|
05963H
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05966B
|
05966B
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05966C
|
05966C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05966D
|
05966D
MB329945 CLIP, FUEL LINE |
MB329945 |
US $2.52 |
||
|
05967
|
05967
MB504672 CLAMP, FUEL VAPOR CONTROL LINE |
MB504672 |
US $12.28 |
||
|
05967
|
05967
MB554705 CLAMP, FUEL VAPOR CONTROL LINE |
MB554705 |
US $11.84 |
||
|
05968B
|
05968B
MB008659 CAP, FUEL TANK |
MB008659 |
US $6.36 |
||
|
05968C
|
05968C
MB129998 CAP, FUEL VAPOR CONTROL LINE |
MB129998 |
US $5.18 |
||
|
05971B
|
05971B
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
05971C
|
05971C
MS240041 BOLT, ENG OIL COOLER LINEWasher assembled,6x16 |
MS240041 |
from US $1.01 |
||
|
05971C
|
05971C
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
05972
|
05972
MB084080 BAND, HOIST CONTROL LINKL=129.5 |
MB084080 |
US $2.96 |
||
|
