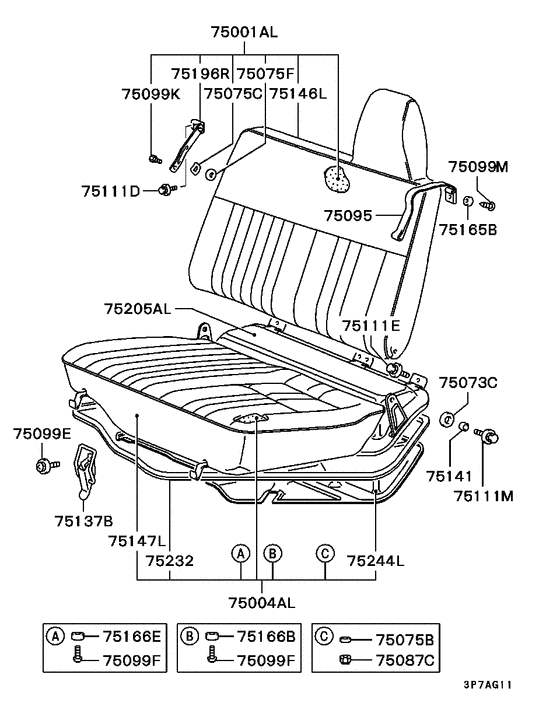

Front seat (LH..2WD(GASOLINE)) Diagram Mitsubishi DELICA TRUCK
- Year
- 1986 - 1994
- Sales region
- Japan
- Note
- DX(CAB & CHASSIS/W-TIRE),4CM/T
- drive
- 2WD
- transmission
- 4CM/T
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB713661 BACK ASSY, FR SEAT, LH |
MB713661 |
US $569.30 |
||
|
75001AL
|
75001AL
MB789808 BACK ASSY, FR SEAT, LH |
MB789808 |
US $605.70 |
||
|
75001AL
|
75001AL
MB971457 BACK ASSY, FR SEAT, LH |
MB971457 |
US $605.70 |
||
|
75004AL
|
75004AL
MB713659 CUSHION ASSY, FR SEAT, LH |
MB713659 |
US $551.82 |
||
|
75004AL
|
75004AL
MB728759 CUSHION ASSY, FR SEAT, LH |
MB728759 |
US $537.26 |
||
|
75004AL
|
75004AL
MB789801 CUSHION ASSY, FR SEAT, LH |
MB789801 |
US $537.26 |
||
|
75004AL
|
75004AL
MB971455 CUSHION ASSY, FR SEAT, LH |
MB971455 |
US $605.70 |
||
|
75073C
|
75073C
MB172523 SPACER, FR SEAT |
MB172523 |
US $2.66 |
||
|
75075B
|
75075B
MF450193 WASHER, FR FENDERPlain,6 |
MF450193 |
from US $1.40 |
||
|
75075C
|
75075C
MF451105 WASHER, BACK DOOR LOCKINGWave,10 |
MF451105 |
US $2.74 |
||
|
75075F
|
75075F
MB173839 WASHER, FR SEAT |
MB173839 |
US $2.66 |
||
|
75087C
|
75087C
MB347410 NUT, FR SEATSelf locking,6 |
MB347410 |
US $2.87 |
||
|
75095
|
75095
MB172508 BAND, FR SEAT |
MB172508 |
US $13.62 |
||
|
75099E
|
75099E
MF351030 SCREW, ROCKER COVERWasher assembled,6x12 |
MF351030 |
US $3.97 |
||
|
75099F
|
75099F
MF456469 SCREW, EMERGENCY FLARETapping,5x8 |
MF456469 |
US $2.74 |
||
|
75099K
|
75099K
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.52 |
||
|
75099M
|
75099M
MF455020 SCREW, RADIATOR GRILLETapping,4x20 |
MF455020 |
US $1.92 |
||
|
75111D
|
75111D
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
75111M
|
75111M
MS240922 BOLT, STEPWasher assembled,8x25 |
MS240922 |
US $2.37 |
||
|
75137B
|
75137B
MB191223 CLAMP, FR SEAT |
MB191223 |
US $8.73 |
||
|
75141
|
75141
MB172522 COLLAR, FR SEAT |
MB172522 |
US $3.55 |
||
|
75146L
|
75146L
MB713662 COVER, FR SEAT BACK, LH |
MB713662 |
US $242.72 |
||
|
75146L
|
75146L
MB789811 COVER, FR SEAT BACK, LH |
MB789811 |
US $267.88 |
||
|
75146L
|
75146L
MB971461 COVER, FR SEAT BACK, LH |
MB971461 |
US $307.22 |
||
|
75147L
|
75147L
MB713660 COVER, FR SEAT CUSHION, LH |
MB713660 |
US $219.04 |
||
|
75147L
|
75147L
MB789802 COVER, FR SEAT CUSHION, LH |
MB789802 |
US $219.04 |
||
|
75147L
|
75147L
MB971459 COVER, FR SEAT CUSHION, LH |
MB971459 |
US $307.22 |
||
|
75165B
|
75165B
MA436892 DAMPER, FR SEAT CUSHION |
MA436892 |
US $3.11 |
||
|
75165B
|
75165B
MB602849 DAMPER, FR SEAT BACK |
MB602849 |
US $5.62 |
||
|
75166B
|
75166B
MB172506 DAMPER, FR SEAT BACK |
MB172506 |
US $3.55 |
||
|
75166B
|
75166B
MB173858 DAMPER, FR SEAT BACK |
MB173858 |
US $2.96 |
||
|
75166B
|
75166B
MB602848 DAMPER, FR SEAT BACK |
MB602848 |
US $5.18 |
||
|
75166E
|
75166E
MB165597 DAMPER, FR SEAT CUSHION |
MB165597 |
US $3.69 |
||
|
75196R
|
75196R
MB172504 LINK, FR SEAT BACK, RH |
MB172504 |
US $16.28 |
||
|
75205AL
|
75205AL
MB557446 PAN ASSY, FR SEAT CUSHION, LH |
MB557446 |
US $323.23 |
||
|
75205AL
|
75205AL
MB601000 PAN ASSY, FR SEAT CUSHION, LH |
MB601000 |
US $318.86 |
||
|
75232
|
75232
MB165596
SEAL, FR SEAT PAN
|
MB165596 |
— | ||
|
75244L
|
75244L
MB158840 SILENCER, FR SEAT PAN |
MB158840 |
US $97.68 |
