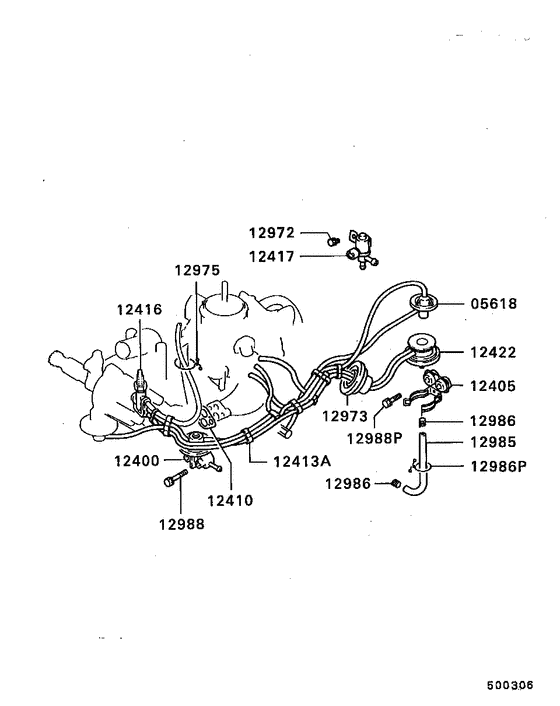

Emission control (-9007.3) Diagram Mitsubishi DELICA TRUCK
- Year
- 1986 - 1990
- Sales region
- Japan
- Note
- DX(3-GATE/W-TIRE),5CM/T
- drive
- 2WD
- transmission
- 5CM/T
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD077055 VALVE, PURGE CONTROL |
MD077055 |
US $79.18 |
||
|
12400
|
12400
MD110659 VALVE, EGR |
MD110659 |
US $168.72 |
||
|
12400
|
12400
MD121479 VALVE, EGR |
MD121479 |
US $224.96 |
||
|
12405
|
12405
MD095525 BRACKET, EMISSION VACUUM CONTROL REGULATOR VALVE |
MD095525 |
US $28.12 |
||
|
12405
|
12405
MD160251 BRACKET, EMISSION VACUUM CONTROL REGULATOR VALVE |
MD160251 |
US $12.28 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12413A
|
12413A
MD110261 HOSE ASSY, EMISSION VACUUM CONTROL |
MD110261 |
US $75.48 |
||
|
12413A
|
12413A
MD157873 HOSE ASSY, EMISSION VACUUM CONTROL |
MD157873 |
US $129.50 |
||
|
12416
|
12416
MD062628
THERMO-VALVE, EMISSION CONTROL
|
MD062628 |
— | ||
|
12416
|
12416
MD132310 THERMO-VALVE, EMISSION CONTROL |
MD132310 |
US $93.24 |
||
|
12417
|
12417
MD110222 VALVE, EMISSION CONTROL OTR VENTILATOR |
MD110222 |
US $150.96 |
||
|
12422
|
12422
MD103422 VALVE, EMISSION VACUUM CONTROL REGULATOR |
MD103422 |
US $91.02 |
||
|
12972
|
12972
MF241223 BOLT, ROCKER COVERWasher assembled,6x12 |
MF241223 |
from US $1.05 |
||
|
12973
|
12973
MB344271 GROMMET, EMISSION CONTROL EQUIP50 |
MB344271 |
US $6.22 |
||
|
12975
|
12975
MD006478 CLIP, FUEL VAPOR CONTROL LINE25 |
MD006478 |
US $2.66 |
||
|
12985
|
12985
MD089838 HOSE, EGR EQUIP5x500 |
MD089838 |
US $15.54 |
||
|
12986
|
12986
MS660162 CLIP, FUEL TANKD=11 |
MS660162 |
US $2.81 |
||
|
12986
|
12986
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
12986P
|
12986P
MS470362 CLIP, WATER HEATER20 |
MS470362 |
US $2.37 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12988P
|
12988P
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
