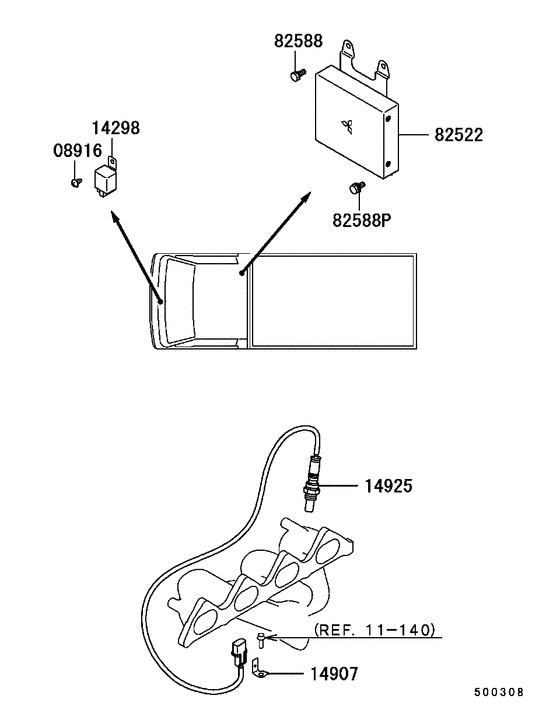

Electrical control Diagram Mitsubishi DELICA TRUCK
- Year
- 1994 - 1996
- Sales region
- Japan
- Note
- GL(FLAT LOW FLOOR/3-GATE/W-TIRE),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08916
|
08916
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
14298
|
14298
MD128752 RELAY, ALTERNATOR SAFETYG82-d-mk1 |
MD128752 |
US $37.62 |
||
|
14907
|
14907
MD304660 BRACKET, CARB HARNESS CONNECTOR |
MD304660 |
US $5.18 |
||
|
14925
|
14925
MD176884 SENSOR, ENG CONTROL OXYGEN |
MD176884 |
US $407.68 |
||
|
14925
|
14925
MD354482 SENSOR, ENG CONTROL OXYGEN |
MD354482 |
US $511.06 |
||
|
82522
|
82522
MD305451 CONTROL UNIT, ENG |
MD305451 |
US $525.62 |
||
|
82522
|
82522
MD355143 CONTROL UNIT, ENG |
MD355143 |
US $525.62 |
||
|
82588
|
82588
MS240187 BOLT, HOOD LOCKINGWasher assembled,6x16 |
MS240187 |
US $2.87 |
||
|
82588P
|
82588P
MB249413
BOLT, FUEL LINE
|
MB249413 |
— | ||
| replacement | |||||
|
82588P
|
82588P
MB330946 BOLT, FUEL LINEWasher assembled,6x20 |
MB330946 |
US $1.92 |
||
|
11 140
|
Cover,rear plate & oil pan
11 140
|
||||
