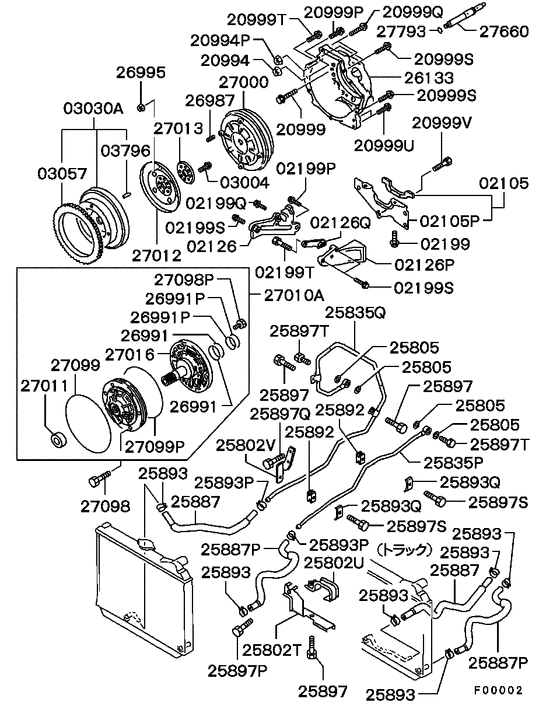

A/t tor-con & oil pump (0001.3-0207.3) Diagram Mitsubishi DELICA TRUCK
- Year
- 1999 - 2002
- Sales region
- MZD-OEM
- Note
- (4DOOR/AERO-ROOF/W-TIRE),4A/T<00M>
- drive
- 2WD
- grade
- 4DOOR/AERO-ROOF
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02105
|
02105
MQ900081 COVER, FLYWHEEL HOUSING, FR LWR |
MQ900081 |
US $28.71 |
||
|
02105P
|
02105P
MQ900078 COVER, FLYWHEEL HOUSING, FR LWR |
MQ900078 |
US $20.28 |
||
|
02126
|
02126
MQ900045 STAY, T/M HOUSING FR LWR COVER |
MQ900045 |
US $44.55 |
||
|
02126P
|
02126P
MQ900080 STAY, T/M HOUSING FR LWR COVER |
MQ900080 |
US $46.62 |
||
|
02126Q
|
02126Q
MQ900046 BRACKET, T/M CONNECTING |
MQ900046 |
US $23.83 |
||
|
02199
|
02199
MQ906702 BOLT, INLET MANIFOLD |
MQ906702 |
US $1.04 |
||
|
02199P
|
02199P
MQ906761 BOLT, ALTERNATOR |
MQ906761 |
US $2.37 |
||
|
02199Q
|
02199Q
MQ906622 BOLT, ENG RR PLATE |
MQ906622 |
US $2.22 |
||
|
02199S
|
02199S
MQ906670 BOLT, ENG RR PLATE |
MQ906670 |
US $2.37 |
||
|
02199T
|
02199T
MQ906668 BOLT, ENG RR PLATE |
MQ906668 |
US $1.78 |
||
|
03004
|
03004
MQ900048 BOLT, A/T DRIVE PLATE |
MQ900048 |
US $5.03 |
||
|
03030A
|
03030A
MQ901466 FLYWHEEL ASSY |
MQ901466 |
US $511.06 |
||
|
03057
|
03057
MQ901559 RING GEAR, FLYWHEEL |
MQ901559 |
US $158.36 |
||
|
03796
|
03796
MQ906352 PIN, FLYWHEEL |
MQ906352 |
US $1.33 |
||
|
20994
|
20994
MQ906921 NUT, T/M CONNECTING |
MQ906921 |
US $1.78 |
||
|
20994P
|
20994P
MQ906915 NUT, ALTERNATORFlange |
MQ906915 |
US $1.48 |
||
|
20999
|
20999
MQ900105 BOLT, T/M CONNECTING |
MQ900105 |
US $1.78 |
||
|
20999P
|
20999P
MQ900603 BOLT, T/M CONNECTING |
MQ900603 |
US $4 |
||
|
20999Q
|
20999Q
MQ900601 BOLT, T/M CONNECTING |
MQ900601 |
US $4.14 |
||
|
20999S
|
20999S
MQ900602 BOLT, T/M CONNECTING |
MQ900602 |
US $4.14 |
||
|
20999T
|
20999T
MQ906765 BOLT, T/M CONNECTING |
MQ906765 |
US $2.37 |
||
|
20999U
|
20999U
MQ906767 BOLT, T/M CONNECTINGFlange |
MQ906767 |
US $2.37 |
||
|
20999V
|
20999V
MQ906706 BOLT, AIR CLEANER |
MQ906706 |
US $1.33 |
||
|
25802T
|
25802T
MQ900259 BRACKET, ENG OIL COOLER HOSE |
MQ900259 |
US $6.51 |
||
|
25802U
|
25802U
MQ900260 BRACKET, ENG OIL COOLER HOSE |
MQ900260 |
US $14.36 |
||
|
25802V
|
25802V
MQ900084 BRACKET, ENG OIL COOLER HOSE |
MQ900084 |
US $10.36 |
||
|
25805
|
25805
MQ906488 GASKET, M/T GEARSHIFT EQUIP |
MQ906488 |
US $1.63 |
||
|
25835P
|
25835P
MQ900255 OIL PUMP ASSY, A/T |
MQ900255 |
US $43.51 |
||
|
25835Q
|
25835Q
MQ900256 TUBE, T/M OIL COOLER |
MQ900256 |
US $94.28 |
||
|
25887
|
25887
MQ900291 HOSE, T/M OIL COOLER LINE |
MQ900291 |
US $38.18 |
||
|
25887P
|
25887P
MQ900258 HOSE, T/M OIL COOLER LINE |
MQ900258 |
US $34.63 |
||
|
25892
|
25892
MQ900043 CLIP, ENG OIL COOLER LINE |
MQ900043 |
US $15.10 |
||
|
25893
|
25893
MQ906425 CLAMP, T/M OIL COOLER LINE |
MQ906425 |
US $2.37 |
||
|
25893P
|
25893P
MQ906425 CLAMP, T/M OIL COOLER LINE |
MQ906425 |
US $2.37 |
||
|
25893P
|
25893P
MQ907672 CLAMP, T/M OIL COOLER LINE |
MQ907672 |
US $2.37 |
||
|
25893Q
|
25893Q
MQ900044 CLAMP, ENG OIL COOLER LINE |
MQ900044 |
US $2.37 |
||
|
25897
|
25897
MQ906705 BOLT, T/M CONNECTING |
MQ906705 |
US $1.33 |
||
|
25897P
|
25897P
MQ906766 BOLT, STARTER |
MQ906766 |
US $2.37 |
||
|
25897Q
|
25897Q
MQ906603 BOLT, T/M OIL COOLER LINE |
MQ906603 |
US $1.78 |
||
|
25897S
|
25897S
MQ906743 BOLT, T/M OIL COOLER LINE |
MQ906743 |
US $1.33 |
||
|
25897T
|
25897T
MQ906468 EYEBOLT, ENG OIL COOLER LINE |
MQ906468 |
US $5.33 |
||
|
26133
|
26133
MQ900252 HOUSING, A/T TORQUE CONVERTER |
MQ900252 |
US $305.76 |
||
|
26133
|
26133
MQ907680 HOUSING, A/T TORQUE CONVERTER |
MQ907680 |
US $336.34 |
||
|
26987
|
26987
MQ900049 STUD, A/T |
MQ900049 |
US $14.36 |
||
|
26991
|
26991
MQ900053 SEAL RING, A/T |
MQ900053 |
US $9.03 |
||
|
26991P
|
26991P
MQ900110 SEAL RING, A/T |
MQ900110 |
US $6.51 |
||
|
26995
|
26995
MQ900630 NUT, A/T |
MQ900630 |
US $2.37 |
||
|
27000
|
27000
MQ900102 TORQUE CONVERTER, A/T |
MQ900102 |
US $1,108.02 |
||
|
27010A
|
27010A
MQ900107 OIL PUMP ASSY, A/T |
MQ900107 |
US $564.93 |
||
|
27011
|
27011
MQ908119 OIL SEAL, A/T OIL PUMP BODY |
MQ908119 |
US $12.28 |
||
|
27012
|
27012
MQ900077 PLATE, A/T DRIVE |
MQ900077 |
US $85.99 |
||
|
27013
|
27013
MQ900047 PLATE, A/T DRIVE PLATE ADAPTER |
MQ900047 |
US $11.40 |
||
|
27016
|
27016
MQ900108 SUPPORT, A/T OIL PUMP STATOR |
MQ900108 |
US $355.26 |
||
|
27098
|
27098
MQ900106 BOLT, A/T OIL PUMP |
MQ900106 |
US $2.22 |
||
|
27098P
|
27098P
MQ900109 BOLT, A/T OIL PUMP |
MQ900109 |
US $1.33 |
||
|
27099
|
27099
MQ900227 O-RING, A/T OIL PUMP |
MQ900227 |
US $1.48 |
||
|
27099P
|
27099P
MQ900634 O-RING, A/T OIL PUMP |
MQ900634 |
US $6.81 |
||
|
27099P
|
27099P
MQ908176 O-RING, A/T OIL PUMP |
MQ908176 |
US $1.48 |
||
|
27660
|
27660
MQ900243 SHAFT, A/T INPUT |
MQ900243 |
US $72.37 |
||
|
27793
|
27793
MQ900040 O-RING, A/T POWER TRAIN |
MQ900040 |
US $2.37 |
