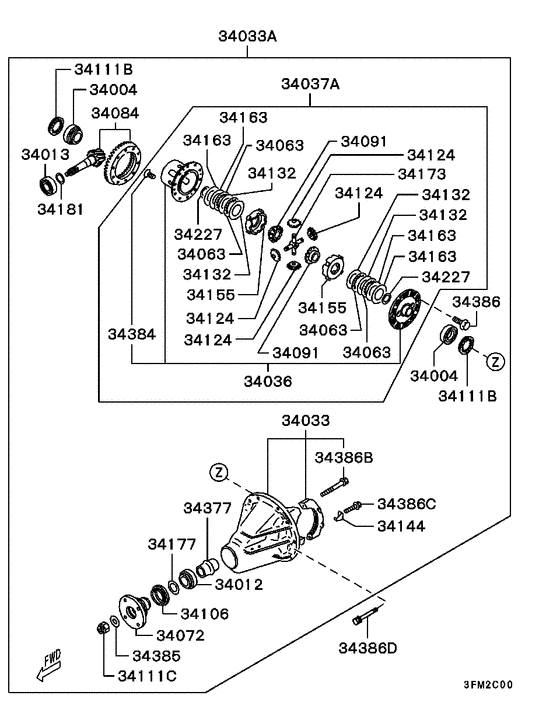

Rear axle differential (ALL) Diagram Mitsubishi DELICA VAN
- Year
- -
- Sales region
- MZD-OEM
- Note
- (0.85TON/SINGLE-TIRE),5M/T<03/03.5M>
- drive
- 4WD
- grade
- 0.85TON/SINGLE-
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34004
|
34004
MQ905945 BEARING, RR DIFF CASE |
MQ905945 |
US $66.90 |
||
|
34012
|
34012
MQ901387 BEARING, RR DIFF DRIVE PINION, RR |
MQ901387 |
US $62.01 |
||
|
34012
|
34012
MQ906045 BEARING, RR DIFF DRIVE PINION, FR |
MQ906045 |
US $42.77 |
||
|
34013
|
34013
MQ901387 BEARING, RR DIFF DRIVE PINION, RR |
MQ901387 |
US $62.01 |
||
|
34013
|
34013
MQ906045 BEARING, RR DIFF DRIVE PINION, FR |
MQ906045 |
US $42.77 |
||
|
34033
|
34033
MQ901437 CARRIER, RR DIFF |
MQ901437 |
US $452.82 |
||
|
34033A
|
34033A
MQ901404 CARRIER ASSY, RR DIFF |
MQ901404 |
US $2,361.60 |
||
|
34036
|
34036
MQ901442 CASE, RR DIFF |
MQ901442 |
US $429.52 |
||
|
34037A
|
34037A
MQ901400 CASE ASSY, RR LSD |
MQ901400 |
US $1,180.82 |
||
|
34063
|
34063
MQ901448 DISC, RR LSD FRICTION |
MQ901448 |
US $18.80 |
||
|
34072
|
34072
MQ901455 FLANGE, RR DIFF COMPANION |
MQ901455 |
US $116.62 |
||
|
34084
|
34084
MQ901393 GEAR KIT, RR DIFF FINAL DRIVER=4.777 |
MQ901393 |
US $607.15 |
||
|
34084
|
34084
MQ909386 GEAR KIT, RR DIFF FINAL DRIVER=4.777 |
MQ909386 |
US $634.82 |
||
|
34091
|
34091
MQ901401 GEAR, RR DIFF SIDE |
MQ901401 |
US $47.51 |
||
|
34106
|
34106
MQ901703 OIL SEAL, RR DIFF DRIVE PINION |
MQ901703 |
US $18.35 |
||
|
34111B
|
34111B
MQ905940 NUT, RR DIFF |
MQ905940 |
US $7.70 |
||
|
34111C
|
34111C
MQ905973 NUT, RR DIFF |
MQ905973 |
US $5.62 |
||
|
34124
|
34124
MQ901447 PINION, RR DIFF |
MQ901447 |
US $37.30 |
||
|
34124
|
34124
MQ909848 PINION, RR DIFF |
MQ909848 |
US $30.78 |
||
|
34132
|
34132
MQ901449 PLATE, RR LSD FRICTIONT=1.75mm |
MQ901449 |
US $20.42 |
||
|
34132
|
34132
MQ901453 PLATE, RR LSD FRICTIONT=1.65mm |
MQ901453 |
US $20.42 |
||
|
34144
|
34144
MQ906036 PLATE, RR DIFF SIDE BEARING NUT LOCK |
MQ906036 |
US $3.85 |
||
|
34155
|
34155
MQ901451 RING, RR LSD CLUTCH PRESSURE |
MQ901451 |
US $138.23 |
||
|
34163
|
34163
MQ901452 SEAT, RR DIFF PINION |
MQ901452 |
US $44.99 |
||
|
34173
|
34173
MQ901450 SHAFT, RR DIFF PINION |
MQ901450 |
US $114.26 |
||
|
34177
|
34177
MQ901386 SHIM SET, RR DIFF DRIVE PINION, FR |
MQ901386 |
US $13.17 |
||
|
34181
|
34181
MQ905974 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905974 |
US $8.73 |
||
|
34181
|
34181
MQ905975 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905975 |
US $8.73 |
||
|
34181
|
34181
MQ905976 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905976 |
US $8.73 |
||
|
34181
|
34181
MQ905977 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905977 |
US $8.73 |
||
|
34181
|
34181
MQ905978 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905978 |
US $8.73 |
||
|
34181
|
34181
MQ905979 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905979 |
US $8.73 |
||
|
34181
|
34181
MQ905980 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905980 |
US $8.73 |
||
|
34181
|
34181
MQ905981 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905981 |
US $8.73 |
||
|
34181
|
34181
MQ905982 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905982 |
US $8.73 |
||
|
34181
|
34181
MQ905983 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905983 |
US $8.73 |
||
|
34181
|
34181
MQ905984 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905984 |
US $8.73 |
||
|
34181
|
34181
MQ905985 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905985 |
US $8.73 |
||
|
34181
|
34181
MQ905986 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905986 |
US $8.73 |
||
|
34181
|
34181
MQ905987 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905987 |
US $8.73 |
||
|
34181
|
34181
MQ905988 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905988 |
US $8.73 |
||
|
34181
|
34181
MQ905989 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905989 |
US $8.73 |
||
|
34181
|
34181
MQ905990 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905990 |
US $8.73 |
||
|
34181
|
34181
MQ905991 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905991 |
US $8.73 |
||
|
34181
|
34181
MQ905992 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905992 |
US $8.73 |
||
|
34181
|
34181
MQ905993 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905993 |
US $8.73 |
||
|
34181
|
34181
MQ905994 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905994 |
US $8.73 |
||
|
34181
|
34181
MQ905995 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905995 |
US $8.73 |
||
|
34181
|
34181
MQ905996 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905996 |
US $8.73 |
||
|
34181
|
34181
MQ905997 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905997 |
US $8.73 |
||
|
34181
|
34181
MQ905998 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905998 |
US $8.73 |
||
|
34181
|
34181
MQ905999 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ905999 |
US $8.73 |
||
|
34181
|
34181
MQ906000 SHIM SET, RR DIFF DRIVE PINION, RR |
MQ906000 |
US $8.73 |
||
|
34227
|
34227
MQ901444 SPACER SET, RR DIFFT=1.5mm |
MQ901444 |
US $7.55 |
||
|
34227
|
34227
MQ901445 SPACER SET, RR DIFFT=1.6mm |
MQ901445 |
US $9.03 |
||
|
34227
|
34227
MQ901446 SPACER SET, RR DIFFT=1.7mm |
MQ901446 |
US $20.57 |
||
|
34377
|
34377
MQ906019
SPACER, RR DIFF PINION BEARING
|
MQ906019 |
— | ||
|
34384
|
34384
MQ901443 SCREW, RR DIFF |
MQ901443 |
US $2.37 |
||
|
34385
|
34385
MQ905972 WASHER, RR DIFF |
MQ905972 |
US $5.62 |
||
|
34386
|
34386
MQ906205 BOLT, RR DIFFD=10.2mm |
MQ906205 |
US $3.85 |
||
|
34386
|
34386
MQ906206 BOLT, RR DIFFD=10.0mm |
MQ906206 |
US $3.85 |
||
|
34386B
|
34386B
MQ906677 BOLT, RR DIFF |
MQ906677 |
US $3.85 |
||
|
34386C
|
34386C
MQ906747 BOLT, FR DIFF |
MQ906747 |
US $1.63 |
||
|
34386D
|
34386D
MQ906293 BOLT, RR DIFF |
MQ906293 |
US $2.22 |
