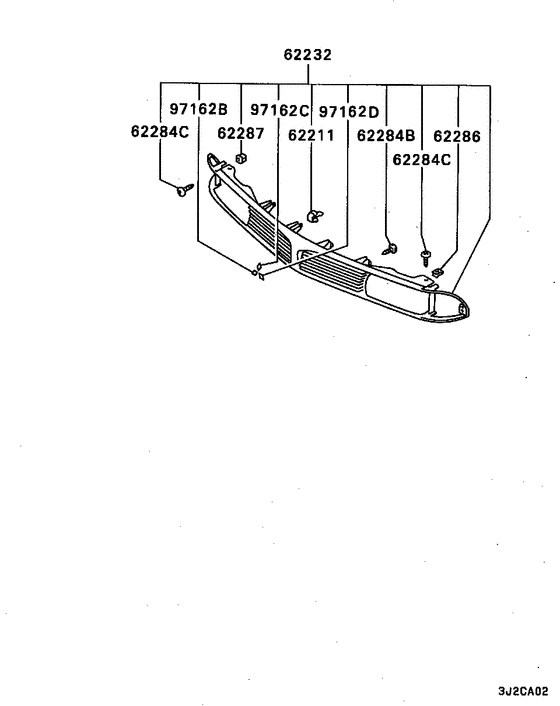

Radiator grille,headlamp bezel (ALL) Diagram Mitsubishi DIAMANTE
- Year
- 1990 - 1992
- Sales region
- Japan
- Note
- 20E(HARDTOP),5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 20E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62211
|
62211
MB153825 CLIP, RADIATOR GRILLE |
MB153825 |
from US $1.60 |
||
|
62232
|
62232
MB698626 GRILLE, RADIATOR |
MB698626 |
US $877.97 |
||
|
62284B
|
62284B
MS450153 SCREW, STEERING WHEELTapping,4x12 |
MS450153 |
US $3.56 |
||
|
62284C
|
62284C
MU240050 SCREW, RADIATOR GRILLETapping,4x16 |
MU240050 |
US $3.83 |
||
|
62286
|
62286
MS440146 NUT, RADIATOR GRILLESpring,4 |
MS440146 |
US $2.05 |
||
|
62287
|
62287
MS480001 GROMMET4,HOLE=6.7X6.7 |
MS480001 |
from US $0.84 |
||
|
97162B
|
97162B
MB696716 MARK, THREE-DIA |
MB696716 |
US $17.76 |
||
|
97162C
|
97162C
MB696296 MARK, THREE-DIA |
MB696296 |
US $17.76 |
||
|
97162D
|
97162D
MB696297 MARK, THREE-DIA |
MB696297 |
US $17.76 |
