	Description	OEM Part #	Price
68101L	68101L MB655577 ACTUATOR, RR DOOR LOCK, LH	MB655577	US $128.76
68101R	68101R MB655578 ACTUATOR, RR DOOR LOCK, RH	MB655578	US $128.76
68115L	68115L MB578695 HANDLE, FR DOOR INSIDE, LH	MB578695	US $68.08
68115R	68115R MB578696 HANDLE, FR DOOR INSIDE, RH	MB578696	US $68.08
68116L	68116L MB578730 HANDLE, RR DOOR OUTSIDE, LH	MB578730	US $116.92
68116L	68116L MB578731 HANDLE, RR DOOR OUTSIDE, LH	MB578731	US $116.92
68116L	68116L MB578732 HANDLE, RR DOOR OUTSIDE, LH	MB578732	US $116.92
68116L	68116L MB578734 HANDLE, RR DOOR OUTSIDE, LH	MB578734	US $116.92
68116L	68116L MB768166 HANDLE, RR DOOR OUTSIDE, LH	MB768166	US $116.92
68116L	68116L MB782357 HANDLE, RR DOOR OUTSIDE, LH	MB782357	US $116.92
68116L	68116L MB782358 HANDLE, RR DOOR OUTSIDE, LH	MB782358	US $116.92
68116L	68116L MB963282 HANDLE, RR DOOR OUTSIDE, LH	MB963282	US $116.92
68116R	68116R MB578735 HANDLE, RR DOOR OUTSIDE, RH	MB578735	US $116.92
68116R	68116R MB578736 HANDLE, RR DOOR OUTSIDE, RH	MB578736	US $116.92
68116R	68116R MB578737 HANDLE, RR DOOR OUTSIDE, RH	MB578737	US $116.92
68116R	68116R MB578739 HANDLE, RR DOOR OUTSIDE, RH	MB578739	US $116.92
68116R	68116R MB768170 HANDLE, RR DOOR OUTSIDE, RH	MB768170	US $116.92
68116R	68116R MB782359 HANDLE, RR DOOR OUTSIDE, RH	MB782359	US $116.92
68116R	68116R MB782360 HANDLE, RR DOOR OUTSIDE, RH	MB782360	US $116.92
68116R	68116R MB963283 HANDLE, RR DOOR OUTSIDE, RH	MB963283	US $116.92
68123	68123 MB578690 KNOB, FR DOOR INSIDE LOCK	MB578690	US $4
68124L	68124L MB626685 LATCH, RR DOOR, LH	MB626685	US $121.36
68124L	68124L MB865725 LATCH, RR DOOR, LH	MB865725	US $89.54
68124R	68124R MB626686 LATCH, RR DOOR, RH	MB626686	US $121.36
68124R	68124R MB865726 LATCH, RR DOOR, RH	MB865726	US $89.54
68131L	68131L MB626707 ROD, RR DOOR INSIDE HANDLE, LH	MB626707	US $10.06
68131R	68131R MB626708 ROD, RR DOOR INSIDE HANDLE, RH	MB626708	US $10.06
68132L	68132L MB626689 ROD, RR DOOR INSIDE LOCK, LH	MB626689	US $11.99
68132R	68132R MB626690 ROD, RR DOOR INSIDE LOCK, RH	MB626690	US $11.99
68137	68137 MB574974 SHIM, FR DOOR LATCH STRIKER 1.6	MB574974	US $4.65
68142	68142 MB655369 STRIKER, FR DOOR LATCH	MB655369	US $13.02
68149	68149 MB626285 CAP, FR DOOR INSIDE HANDLE COVER	MB626285	US $6.07
68184	68184 MB632510 SPRING PIN, FR DOOR LOCKING 6x27	MB632510	US $3.56
68189	68189 MU481220 HOLDER, RR DOOR LOCK	MU481220	US $3.83
68194B	68194B MB632457 SCREW, FR DOOR LOCKING Machine,6x8	MB632457	US $3.26
68194C	68194C MU340028 SCREW, FR DOOR LOCKING	MU340028	—
	replacement
68194C	68194C MU340023 SCREW, FR DOOR LOCKING Washer assembled(plus),8x22.5	MU340023	from US $0.96
68194D	68194D MF453333 SCREW, STEERING COLUMN COVER Tapping,5x16	MF453333	US $2.22
68195	68195 MS440512 NUT, AIR SPOILER Washer assembled,6	MS440512	US $2.46
68196	68196 MS480002 GROMMET, HOOD LOCKING Screw,5	MS480002	from US $1.29
68197B	68197B MU481161 CLIP, RR DOOR LOCKING	MU481161	US $4.38
68197C	68197C MU481102 CLIP, FR DOOR LOCKING	MU481102	—
68197D	68197D MU481101 CLIP, FR DOOR LOCKING	MU481101	—
68197L	68197L MS470434 CLIP, FR DOOR LOCKING 4.2	MS470434	from US $2.07
68197R	68197R MS470433 CLIP, PTO GEARSHIFT LINK 4.2	MS470433	US $4.24
68199B	68199B MB321590 Bolt	MB321590	—
	replacement
68199B	68199B MU240087 BOLT Washer assembled,6x10	MU240087	from US $1.31
68199C	68199C MF240022 BOLT, ROCKER COVER Washer assembled,6x10	MF240022	US $2.05
68212	68212 MB547025 CHECK, RR DOOR	MB547025	—

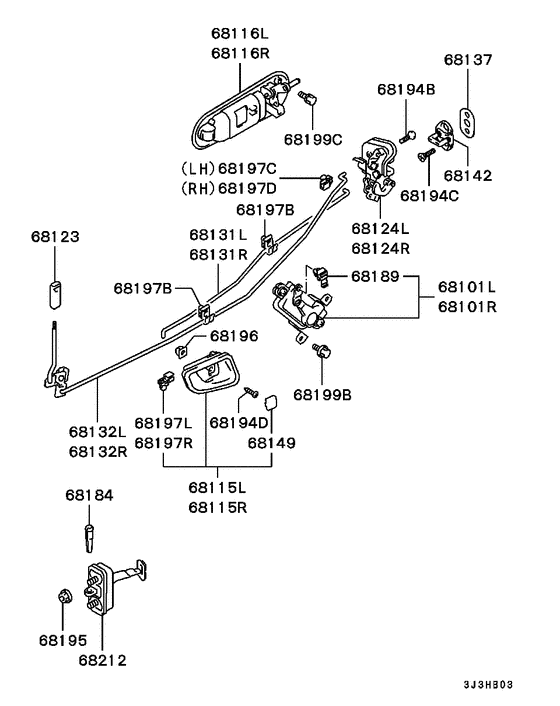

Rear door locking Diagram Mitsubishi DIAMANTE Japan 7931073-628189

Rear door locking Diagram Mitsubishi DIAMANTE Japan 7931073-628189
