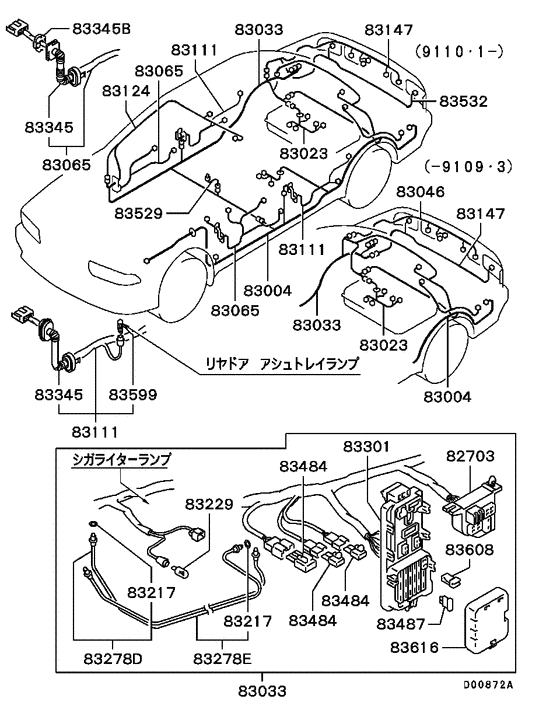

Wiring & attaching parts (WIRING HARNESS..DOOR,FLOOR,ETC.) Diagram Mitsubishi DIAMANTE
- Year
- 1992 - 1994
- Sales region
- Japan
- Note
- 25V-S(HARDTOP),4FA/T(INC.LIMITED)
- drive
- 2WD
- transmission
- 4FA/T
- grade
- 25V-S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82703
|
82703
MB665376 BOX, RELAY |
MB665376 |
US $56.24 |
||
|
83004
|
83004
MB943526 HARNESS, ABS |
MB943526 |
US $150.96 |
||
|
83004
|
83004
MB943527 HARNESS, ABS |
MB943527 |
US $1,195.38 |
||
|
83004
|
83004
MB943531 HARNESS, ABS |
MB943531 |
US $876.51 |
||
|
83023
|
83023
MB627250 HARNESS, FUEL PUMP |
MB627250 |
US $76.22 |
||
|
83023
|
83023
MB627253 HARNESS, FUEL PUMP |
MB627253 |
US $222 |
||
|
83033
|
83033
MB943442 HARNESS, BODY MAIN |
MB943442 |
US $3,168 |
||
|
83033
|
83033
MB943443 HARNESS, BODY MAIN |
MB943443 |
US $3,542.40 |
||
|
83033
|
83033
MB943451 HARNESS, BODY MAIN |
MB943451 |
US $3,772.80 |
||
|
83033
|
83033
MB943452 HARNESS, BODY MAIN |
MB943452 |
US $4,161.60 |
||
|
83033
|
83033
MR142818 HARNESS, BODY MAIN |
MR142818 |
US $2,289.60 |
||
|
83033
|
83033
MR142819 HARNESS, BODY MAIN |
MR142819 |
US $5,702.40 |
||
|
83033
|
83033
MR142825 HARNESS, BODY MAIN |
MR142825 |
US $3,355.20 |
||
|
83033
|
83033
MR142826 HARNESS, BODY MAIN |
MR142826 |
US $3,355.20 |
||
|
83065
|
83065
MB627344 HARNESS, FR DOORLh |
MB627344 |
US $216.08 |
||
|
83065
|
83065
MB627346 HARNESS, FR DOORLh |
MB627346 |
US $573.66 |
||
|
83065
|
83065
MB863462 HARNESS, FR DOORRh |
MB863462 |
US $371.28 |
||
|
83065
|
83065
MB863465 HARNESS, FR DOORRh |
MB863465 |
US $358.18 |
||
|
83065
|
83065
MR122455 HARNESS, FR DOORRh |
MR122455 |
US $313.04 |
||
|
83065
|
83065
MR122465 HARNESS, FR DOORLh |
MR122465 |
US $192.40 |
||
|
83065
|
83065
MR142846 HARNESS, FR DOORRh |
MR142846 |
US $260.48 |
||
|
83065
|
83065
MR142848 HARNESS, FR DOORRh |
MR142848 |
US $248.64 |
||
|
83111
|
83111
MB627350 HARNESS, RR DOORRh |
MB627350 |
US $116.18 |
||
|
83111
|
83111
MB627354 HARNESS, RR DOORLh |
MB627354 |
US $116.18 |
||
|
83124
|
83124
MB943501 HARNESS, ROOM LAMP |
MB943501 |
US $99.90 |
||
|
83124
|
83124
MB943504 HARNESS, ROOM LAMP |
MB943504 |
US $204.24 |
||
|
83147
|
83147
MB627330 HARNESS, TRUNK ROOM |
MB627330 |
US $85.84 |
||
|
83147
|
83147
MB904505 HARNESS, TRUNK ROOM |
MB904505 |
US $446.99 |
||
|
83147
|
83147
MB953028 HARNESS, TRUNK ROOM |
MB953028 |
US $347.98 |
||
|
83229
|
83229
MB281995 BULB, INSTRUMENT PANEL METER12v-1.4w,g-10 |
MB281995 |
from US $2.74 |
||
|
83301
|
83301
MB839030 BLOCK, CHASSIS HARNESS JUNCTION |
MB839030 |
US $228.46 |
||
|
83345
|
83345
MB627261 GROMMET, DOOR WIRINGRubber,22x42-32x46 |
MB627261 |
US $32.56 |
||
|
83345
|
83345
MB801311 GROMMET, DOOR WIRINGRubber,42x48-38x48 |
MB801311 |
US $4 |
||
|
83345B
|
83345B
MB801310 GROMMET, DOOR WIRINGInner,plastic,46x40 |
MB801310 |
US $4 |
||
|
83484
|
83484
MU804010 DIODE, CHASSIS WIRING1.5a,4p |
MU804010 |
from US $28.78 |
||
|
83484
|
83484
MU804011
DIODE, INSTRUMENT PANEL WIRING
|
MU804011 |
— | ||
| replacement | |||||
|
83484
|
83484
MU804024 DIODE, CHASSIS WIRING2p |
MU804024 |
from US $4.95 |
||
|
83484
|
83484
MU804014 DIODE, CHASSIS WIRING1.5a,4p |
MU804014 |
US $45.14 |
||
|
83487
|
83487
MS810965 FUSE, SWITCHBlade type,10a |
MS810965 |
from US $1.31 |
||
|
83487
|
83487
MS810966 FUSE, BODY WIRINGBlade type,15a |
MS810966 |
from US $1.19 |
||
|
83487
|
83487
MS810967 FUSE, RELAYBlade type,20a |
MS810967 |
from US $1.40 |
||
|
83487
|
83487
MS810968 FUSE, INSTRUMENT PANEL WIRINGBlade type,25a |
MS810968 |
from US $1.33 |
||
|
83532
|
83532
MB904473 HARNESS, BODY MAIN, RR |
MB904473 |
US $342.16 |
||
|
83532
|
83532
MR122381 HARNESS, BODY MAIN, RR |
MR122381 |
US $273.80 |
||
|
83532
|
83532
MR122382 HARNESS, BODY MAIN, RR |
MR122382 |
US $433.89 |
||
|
83532
|
83532
MR142858 HARNESS, BODY MAIN, RR |
MR142858 |
US $1,103.65 |
||
|
83532
|
83532
MR194934 HARNESS, BODY MAIN, RR |
MR194934 |
US $264.92 |
||
|
83532
|
83532
MR194942 HARNESS, BODY MAIN, RR |
MR194942 |
US $264.92 |
||
|
83599
|
83599
MB281995 BULB, INSTRUMENT PANEL METER12v-1.4w,g-10 |
MB281995 |
from US $2.74 |
||
|
83608
|
83608
MB529459 PULLER, FUSE |
MB529459 |
US $9.62 |
||
|
83616
|
83616
MB685923 COVER, FUSE BOX |
MB685923 |
US $13.47 |
||
