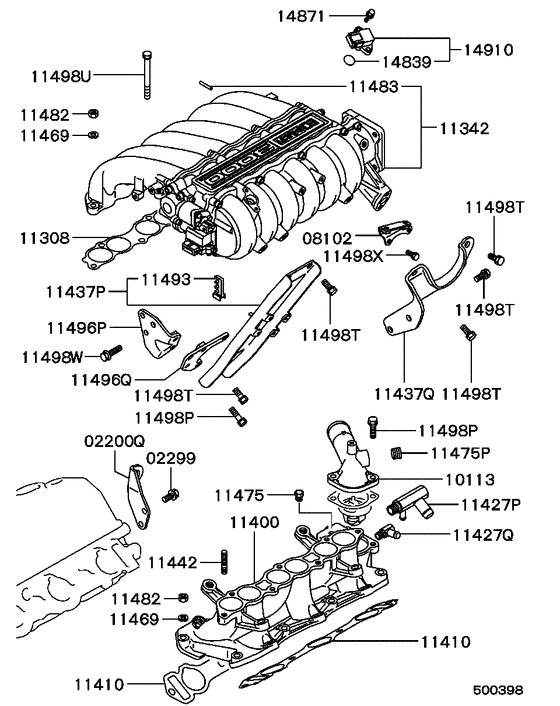

Inlet manifold (SOHC) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1996
- Sales region
- P.RICO&GUAM/MMAL
- Note
- ES(SOHC),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200Q
|
02200Q
MD107317 ENGINE HANGER |
MD107317 |
US $20.72 |
||
|
02299
|
02299
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.07 |
||
|
02299
|
02299
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
08102
|
08102
MD157388 BRACKET, INLET MANIFOLD |
MD157388 |
US $7.99 |
||
|
10113
|
10113
MD160133
FITTING, COOLING WATER OUTLET HOSE
|
MD160133 |
— | ||
|
11308
|
11308
MD149539 GASKET, ENG AIR INTAKE SURGE TANK |
MD149539 |
from US $10.49 |
||
|
11342
|
11342
MD163992 TANK, ENG AIR INTAKE SURGE |
MD163992 |
US $1,843.20 |
||
|
11342
|
11342
MD171176
TANK,ENG AIR INTAKE SURGE
|
MD171176 |
— | ||
|
11342
|
11342
MD325545
TANK,ENG AIR INTAKE SURGE
|
MD325545 |
— | ||
|
11400
|
11400
MD164708 MANIFOLD, INLET |
MD164708 |
US $783.33 |
||
|
11410
|
11410
MD154025
GASKET, INLET MANIFOLD
|
MD154025 |
— | ||
| replacement | |||||
|
11410
|
11410
MD168419 GASKET, INLET MANIFOLD |
MD168419 |
from US $21.02 |
||
|
11427P
|
11427P
MD105014
JOINT, INLET MANIFOLD
|
MD105014 |
— | ||
|
11427Q
|
11427Q
MD143344
JOINT, INLET MANIFOLD
|
MD143344 |
— | ||
|
11437P
|
11437P
MD167616 STAY, INLET MANIFOLD |
MD167616 |
US $61.42 |
||
|
11437P
|
11437P
MD308888
STAY,INLET MANIFOLD
|
MD308888 |
— | ||
|
11437Q
|
11437Q
MD163981 STAY, INLET MANIFOLD |
MD163981 |
US $61.42 |
||
|
11437Q
|
11437Q
MD308889
STAY,INLET MANIFOLD
|
MD308889 |
— | ||
|
11442
|
11442
MS401927 STUD, INLET MANIFOLD8x25 |
MS401927 |
US $2.52 |
||
|
11469
|
11469
MF450435 WASHER, INLET MANIFOLDSpring,8 |
MF450435 |
US $1.48 |
||
|
11469
|
11469
MF450495 WASHER, CYLINDER HEADSpring,8 |
MF450495 |
US $4.51 |
||
|
11475
|
11475
MD165226 PLUG, INLET MANIFOLDTaper,1/8 |
MD165226 |
US $4.24 |
||
|
11475P
|
11475P
MS661162 PLUG, INLET MANIFOLDTaper,3/8 |
MS661162 |
from US $3.08 |
||
|
11482
|
11482
MD090676 NUT, TIMING BELT TRAINFlange,8 |
MD090676 |
US $3.97 |
||
|
11482
|
11482
MF430151 NUT, RR AXLEJam,8 |
MF430151 |
US $2.05 |
||
|
11482
|
11482
MF430181 NUT, CYLINDER HEAD8 |
MF430181 |
US $2.74 |
||
|
11483
|
11483
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11493
|
11493
MD017652 CLAMP, ROCKER COVER |
MD017652 |
US $2.05 |
||
|
11493
|
11493
MD129546 CLAMP, ROCKER COVER |
MD129546 |
US $9.30 |
||
|
11496P
|
11496P
MD166785 BRACKET, INLET MANIFOLD |
MD166785 |
US $4.74 |
||
|
11496Q
|
11496Q
MD166786 BRACKET, INLET MANIFOLD |
MD166786 |
US $19.98 |
||
|
11498P
|
11498P
MF241855 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241855 |
US $3.01 |
||
|
11498T
|
11498T
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
11498T
|
11498T
MF245452
BOLT,INLET MANIFOLD
|
MF245452 |
— | ||
|
11498U
|
11498U
MF241862
BOLT, INLET MANIFOLD
|
MF241862 |
— | ||
|
11498U
|
11498U
MF241869 BOLT, INLET MANIFOLDWasher assembled,8x80 |
MF241869 |
US $3.26 |
||
|
11498W
|
11498W
MF140229 BOLT, CYLINDER BLOCKFlange,8x30 |
MF140229 |
from US $1.07 |
||
|
11498X
|
11498X
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.66 |
||
|
14839
|
14839
MD632057 O-RING, ENG CONTROL PRESSURE SENSOR |
MD632057 |
US $2.87 |
||
|
14871
|
14871
MF244805 BOLT, ENG CONTROL PRESSURE SENSORWasher assembled,5x18 |
MF244805 |
US $2.19 |
||
|
14910
|
14910
MD305600 SENSOR, INLET MANIFOLD DIFF PRESSURE |
MD305600 |
from US $393.43 |
||
