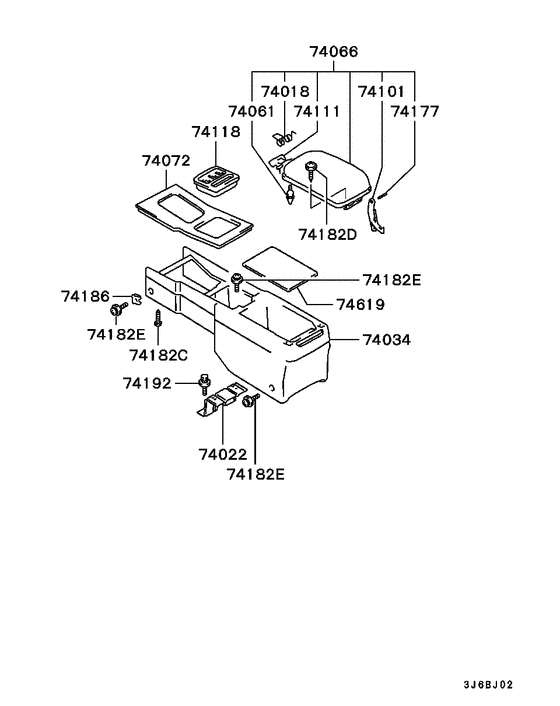

Console ('93MODEL-) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1993
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS(DOHC/4WS),4FA/T FED
- drive
- 2WD/4WS
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74018
|
74018
MB604489
SPRING, FLOOR CONSOLE LID LOCK LEVER
|
MB604489 |
— | ||
|
74022
|
74022
MB603830 BRACKET, FLOOR CONSOLE, FR |
MB603830 |
US $8.14 |
||
|
74034
|
74034
MB786874
CONSOLE,FLOOR
|
MB786874 |
— | ||
|
74034
|
74034
MB786875
CONSOLE,FLOOR
|
MB786875 |
— | ||
|
74034
|
74034
MR714371
CONSOLE,FLOOR
|
MR714371 |
— | ||
|
74034
|
74034
MR714373
CONSOLE,FLOOR
|
MR714373 |
— | ||
|
74061
|
74061
MB604673 CUSHION, FLOOR CONSOLE |
MB604673 |
US $4.24 |
||
|
74066
|
74066
MB897017
LID,FLOOR CONSOLE
|
MB897017 |
— | ||
|
74066
|
74066
MB897018
LID,FLOOR CONSOLE
|
MB897018 |
— | ||
|
74072
|
74072
MB795818
PANEL,FLOOR CONSOLE
|
MB795818 |
— | ||
|
74072
|
74072
MR703014
PANEL,FLOOR CONSOLE
|
MR703014 |
— | ||
|
74072
|
74072
MR714379
PANEL,FLOOR CONSOLE
|
MR714379 |
— | ||
|
74101
|
74101
MB604019 STOPPER, FLOOR CONSOLE LID |
MB604019 |
US $7.25 |
||
|
74101
|
74101
MB898395 STOPPER, FLOOR CONSOLE LID |
MB898395 |
US $10.26 |
||
|
74111
|
74111
MB603300 LEVER, FLOOR CONSOLE LID LOCK |
MB603300 |
US $9.71 |
||
|
74118
|
74118
MB764143 PANEL, FLOOR CONSOLE SWITCH HOLE |
MB764143 |
US $43.66 |
||
|
74118
|
74118
MB764146 PANEL, FLOOR CONSOLE SWITCH HOLE |
MB764146 |
US $43.66 |
||
|
74177
|
74177
MF472533 PIN, INSTRUMENT PANEL UNDER TRIMSpring,3x10 |
MF472533 |
US $1.50 |
||
|
74182C
|
74182C
MF453030 SCREW, ENG CONTROL EQUIPTapping,5x10 |
MF453030 |
from US $0.20 |
||
|
74182C
|
74182C
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
74182D
|
74182D
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.68 |
||
|
74182E
|
74182E
MS450178 SCREW, FR BUMPERTapping,5x20 |
MS450178 |
US $3.28 |
||
|
74186
|
74186
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.50 |
||
|
74192
|
74192
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
74619
|
74619
MB603971 MAT, FLOOR CONSOLE BOX |
MB603971 |
US $20.72 |
