Component List DIAMANTE
Front door panel & glass (PANEL,GLASS,HINGE,ETC.)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
67017L	67017L MB655395 GUIDE, FR DOOR WINDOW GLASS, FR LH	MB655395	US $50.32
67017R	67017R MB655396 GUIDE, FR DOOR WINDOW GLASS, FR RH	MB655396	US $50.32
67019B	67019B MB142761 BOLT, FR SUSP STABILIZER Washer assembled,8x25	MB142761	from US $1.44
67019B	67019B MB655944 BOLT, FR DOOR HINGE Washer assembled,10x25	MB655944	US $3.40
67019B	67019B MU140017 BOLT, FR DOOR HINGE Flange,8x20	MU140017	from US $1.25
67019C	67019C MU240121 BOLT, FR DOOR HINGE Washer assembled,8t,8x28	MU240121	US $2.60
67020AL	67020AL MB835711 PANEL ASSY, FR DOOR, LH	MB835711	US $927.47
67020AR	67020AR MB835712 PANEL ASSY, FR DOOR, RH	MB835712	US $927.47
67021L	67021L MB655397 GUIDE, FR DOOR WINDOW GLASS, RR LH	MB655397	US $50.32
67021R	67021R MB655398 GUIDE, FR DOOR WINDOW GLASS, RR RH	MB655398	US $50.32
67023L	67023L MB655391 SASH, FR DOOR WINDOW DELTA, LH	MB655391	US $214.60
67023R	67023R MB655392 SASH, FR DOOR WINDOW DELTA, RH	MB655392	US $214.60
67030L	67030L MB637343 PANEL, FR DOOR, OTR LH	MB637343	US $307.22
67030R	67030R MB637344 PANEL, FR DOOR, OTR RH	MB637344	US $307.22
67040L	67040L MB517721 HINGE, FR DOOR	MB517721	US $46.51
67040L	67040L MB546837 HINGE, FR DOOR	MB546837	US $48.84
67040R	67040R MB517722 HINGE, FR DOOR	MB517722	US $46.51
67040R	67040R MB546838 HINGE, FR DOOR	MB546838	US $48.84
67050L	67050L MB517722 HINGE, FR DOOR	MB517722	US $46.51
67050L	67050L MB546838 HINGE, FR DOOR	MB546838	US $48.84
67050R	67050R MB517721 HINGE, FR DOOR	MB517721	US $46.51
67050R	67050R MB546837 HINGE, FR DOOR	MB546837	US $48.84
67106	67106 MB364453 CUSHION, FR DOOR WINDOW GLASS	MB364453	US $5.61
67106L	67106L MB364457 CUSHION, FR DOOR WINDOW GLASS	MB364457	US $3.28
67106R	67106R MB364458 CUSHION, FR DOOR WINDOW GLASS	MB364458	US $3.28
67110L	67110L MB763097 GLASS, FR DOOR WINDOW, LH Asahi	MB763097	US $285.64
67110L	67110L MB763098 GLASS, FR DOOR WINDOW, LH Asahi	MB763098	US $327.60
67110L	67110L MR737688 GLASS, FR DOOR WINDOW, LH Asahi	MR737688	US $219.04
67110R	67110R MB763099 GLASS, FR DOOR WINDOW, RH Asahi	MB763099	US $285.64
67110R	67110R MB763100 GLASS, FR DOOR WINDOW, RH Asahi	MB763100	US $327.60
67110R	67110R MR737689 GLASS, FR DOOR WINDOW, RH Asahi	MR737689	US $219.04
67112	67112 MB364455 HOOK, FR DOOR WINDOW GLASS STABILIZER	MB364455	US $5.48
67112	67112 MB926277 HOOK, FR DOOR WINDOW GLASS STABILIZER	MB926277	US $5.47
67114	67114 MB655339 STRIKER, FR DOOR WINDOW GLASS, LH	MB655339	US $4.59
67116	67116 MB364451 PLATE, FR DOOR WINDOW GLASS	MB364451	US $3.69
67117	67117 MB421930 ROLLER, FR DOOR WINDOW GLASS GUIDE	MB421930	US $12.45
67125L	67125L MB321765 SLIDER, FR DOOR WINDOW GLASS GUIDE, LH	MB321765	—
67125R	67125R MB321766 SLIDER, FR DOOR WINDOW GLASS GUIDE, RH	MB321766	US $10.12
67127L	67127L MB321763 STABILIZER, FR DOOR WINDOW GLASS	MB321763	US $31.08
67127R	67127R MB321764 STABILIZER, FR DOOR WINDOW GLASS	MB321764	US $31.08
67221	67221 MB321762 STOPPER, FR DOOR WINDOW REGULATOR UP	MB321762	—
	replacement
67221	67221 MR526916 STOPPER, FR DOOR WINDOW REGULATOR UP	MR526916	US $9.85
67297B	67297B MB364452 NUT, FR DOOR WINDOW 6	MB364452	US $6.43
67297C	67297C MS440502 NUT, FUEL TANK Washer assembled,6	MS440502	from US $1.74
67297D	67297D MS440503 NUT, ENG FR MOUNTING Washer assembled,8	MS440503	from US $0.84
67299B	67299B MB655950 BOLT, FR DOOR WINDOW	MB655950	US $4.59
67299C	67299C MB364454 BOLT, FR DOOR WINDOW Weld,6x10	MB364454	from US $2.55
67299D	67299D MS240397 BOLT, FR DOOR WINDOW Washer assembled,8x20	MS240397	US $5.06
67906	67906 MB574963 DAMPER, FR DOOR	MB574963	from US $2.22

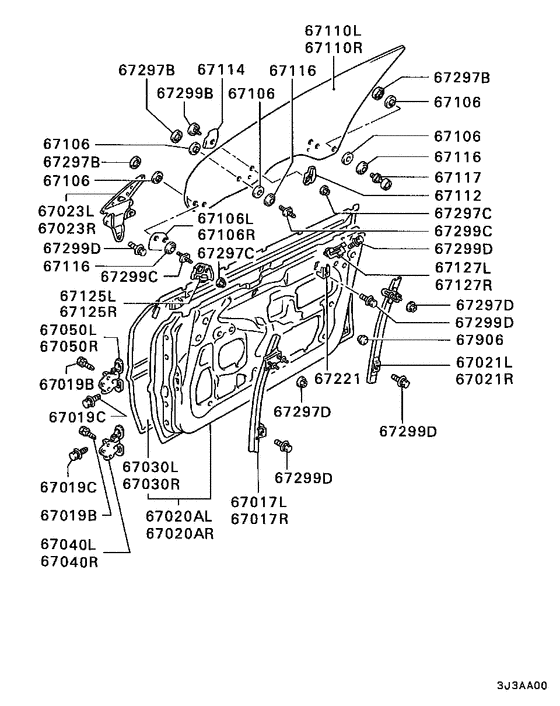

Front door panel & glass (PANEL,GLASS,HINGE,ETC.) Diagram Mitsubishi DIAMANTE P.RICO&GUAM/MMAL 1864311-163630

Front door panel & glass (PANEL,GLASS,HINGE,ETC.) Diagram Mitsubishi DIAMANTE P.RICO&GUAM/MMAL 1864311-163630
