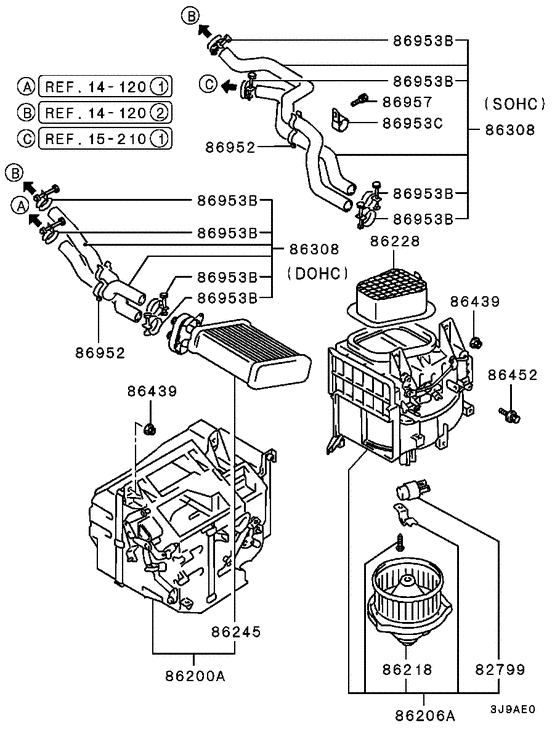

Heater unit & piping (HEATER UNIT & PIPING) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1993
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS(DOHC/4WS),4FA/T FED
- drive
- 2WD/4WS
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82799
|
82799
MB084670 RELAY, ENG CONTROL EQUIP |
MB084670 |
from US $21.94 |
||
|
86200A
|
86200A
MB657834 HEATER ASSY |
MB657834 |
US $272.32 |
||
|
86206A
|
86206A
MB657836
BLOWER ASSY,HEATER
|
MB657836 |
— | ||
|
86206A
|
86206A
MB938569
BLOWER ASSY,HEATER
|
MB938569 |
— | ||
|
86218
|
86218
MB657230
FAN & MOTOR KIT, HEATER
|
MB657230 |
— | ||
|
86228
|
86228
MB813262 GUIDE, HEATER BLOWER AIR |
MB813262 |
US $17.76 |
||
|
86245
|
86245
MB657852
CORE,HEATER
|
MB657852 |
— | ||
|
86308
|
86308
MB698702 HOSE KIT, HEATER WATER |
MB698702 |
US $39.22 |
||
|
86439
|
86439
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
86452
|
86452
MS240146 BOLT, CRUISE CONTROL EQUIPWasher assembled,8x25 |
MS240146 |
from US $0.90 |
||
|
86952
|
86952
MS470478 CLIP, HEATER PIPING22.5-22.5 |
MS470478 |
US $5.62 |
||
|
86953B
|
86953B
MA609047 CLIP, FUEL LINED=25 |
MA609047 |
from US $2.24 |
||
|
86957
|
86957
MS240179 BOLT, FR BUMPERWasher assembled,6x16 |
MS240179 |
from US $0.88 |
||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
