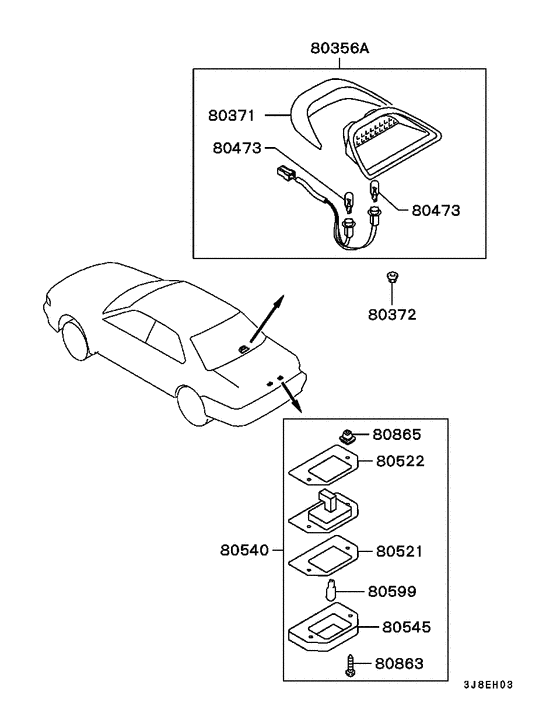

Rear exterior lamp (LICENSE PLATE,H.M.S.LAMP,ETC.) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1993
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS(DOHC/4WS),4FA/T FED
- drive
- 2WD/4WS
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80356A
|
80356A
MB786663
LAMP ASSY,HIGH MOUNTED STOP
|
MB786663 |
— | ||
|
80356A
|
80356A
MB786664
LAMP ASSY,HIGH MOUNTED STOP
|
MB786664 |
— | ||
|
80356A
|
80356A
MR714259
LAMP ASSY,HIGH MOUNTED STOP
|
MR714259 |
— | ||
|
80371
|
80371
MB881489
COVER,HIGH MOUNTED STOP LAMP
|
MB881489 |
— | ||
|
80371
|
80371
MB881490
COVER,HIGH MOUNTED STOP LAMP
|
MB881490 |
— | ||
|
80371
|
80371
MR155212
COVER,HIGH MOUNTED STOP LAMP
|
MR155212 |
— | ||
|
80372
|
80372
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
80473
|
80473
MS820023 BULB,RR LAMP |
MS820023 |
from US $4.51 |
||
|
80473
|
80473
MS820079 BULB, STOP LAMP12v-18w |
MS820079 |
US $9.52 |
||
| replacement | |||||
|
80473
|
80473
MS820023 BULB,RR LAMP |
MS820023 |
from US $4.51 |
||
|
80521
|
80521
MB529129 GASKET, LICENSE PLATE LAMP LENS |
MB529129 |
US $2.66 |
||
|
80522
|
80522
MB529130 GASKET, LICENSE PLATE LAMP BASE |
MB529130 |
US $2.22 |
||
|
80540
|
80540
MB959845
LAMP KIT,LICENSE PLATE
|
MB959845 |
— | ||
|
80545
|
80545
MB623924 LENS, LICENSE PLATE LAMP |
MB623924 |
US $5.92 |
||
|
80599
|
80599
MS820080 BULB, FR LAMP12v-5w |
MS820080 |
from US $3.80 |
||
|
80863
|
80863
MB952789 SCREW, LICENSE PLATE LAMPTapping,4x14 |
MB952789 |
US $2.52 |
||
|
80865
|
80865
MB023930 GROMMET, RR END PANEL GARNISHScrew,4 |
MB023930 |
US $3.69 |
||
|
80865
|
80865
MS480001 GROMMET4,HOLE=6.7X6.7 |
MS480001 |
from US $0.84 |
||
