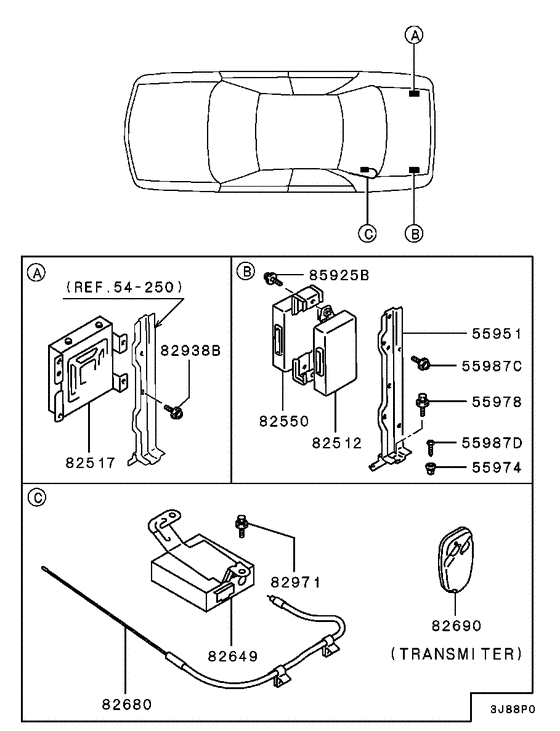

Relay,flasher & sensor (RELAY(AROUND TRUNK ROOM)) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1993
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS(DOHC/4WS),4FA/T FED
- drive
- 2WD/4WS
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55951
|
55951
MB627439
BRACKET, ABS SENSOR
|
MB627439 |
— | ||
|
55974
|
55974
MU480035 GROMMET, ABS CONTROL EQUIPScrew,6 |
MU480035 |
from US $0.78 |
||
|
55978
|
55978
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
55987C
|
55987C
MS350129 SCREW, FUEL TANKWasher assembled,6x16 |
MS350129 |
US $2.74 |
||
|
55987D
|
55987D
MF453045 SCREW, FUEL FILLER LID LOCKINGWasher assembled,6x12 |
MF453045 |
US $2.19 |
||
|
82512
|
82512
MB863945 CONTROL UNIT, ABS |
MB863945 |
US $2,476.80 |
||
|
82517
|
82517
MB627112
CONTROL UNIT,ECS
|
MB627112 |
— | ||
|
82517
|
82517
MB921832
CONTROL UNIT,ECS
|
MB921832 |
— | ||
|
82517
|
82517
MB954894
CONTROL UNIT,ECS
|
MB954894 |
— | ||
|
82550
|
82550
MB875510
CONTROL UNIT,TRACTION
|
MB875510 |
— | ||
|
82938B
|
82938B
MS350129 SCREW, FUEL TANKWasher assembled,6x16 |
MS350129 |
US $2.74 |
||
|
82971
|
82971
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
85925B
|
85925B
MS350129 SCREW, FUEL TANKWasher assembled,6x16 |
MS350129 |
US $2.74 |
||
|
