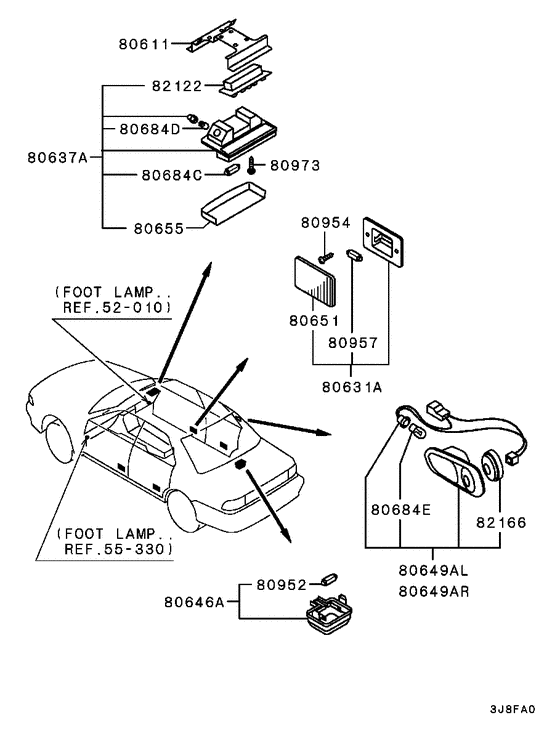

Room lamp (ROOM LAMP,TRUNK ROOM LAMP) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1993
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS(DOHC/4WS),4FA/T FED
- drive
- 2WD/4WS
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80611
|
80611
MB692899 BRACKET, ROOM LAMP |
MB692899 |
US $20.72 |
||
|
80631A
|
80631A
MB617831 LAMP ASSY, DOOR12v-5w |
MB617831 |
US $20.72 |
||
|
80637A
|
80637A
MB771388 LAMP ASSY, ROOMPush sw,12v-10w,7.5w |
MB771388 |
US $347.98 |
||
|
80637A
|
80637A
MB771389 LAMP ASSY, ROOMPush sw,12v-10w,7.5w |
MB771389 |
US $347.98 |
||
|
80646A
|
80646A
MB529091 LAMP ASSY, FOOT12v-5w |
MB529091 |
US $20.52 |
||
|
80649AL
|
80649AL
MB763286 LAMP ASSY, RR PERSONAL, LH12v-7.5w |
MB763286 |
US $61.42 |
||
|
80649AL
|
80649AL
MB763287 LAMP ASSY, RR PERSONAL, LH12v-7.5w |
MB763287 |
US $61.42 |
||
|
80649AR
|
80649AR
MB763288 LAMP ASSY, RR PERSONAL, RH12v-7.5w |
MB763288 |
US $61.42 |
||
|
80649AR
|
80649AR
MB763289 LAMP ASSY, RR PERSONAL, RH12v-7.5w |
MB763289 |
US $61.42 |
||
|
80651
|
80651
MB617836 LENS, DOOR LAMP |
MB617836 |
US $5.92 |
||
|
80655
|
80655
MB877429 LENS, FR ROOM LAMPPush sw |
MB877429 |
US $22.94 |
||
|
80684C
|
80684C
MF820512 BULB, OVERHEAD CONSOLE12v-10w |
MF820512 |
from US $3.10 |
||
|
80684D
|
80684D
MB877458 BULB, ROOM LAMP12v-7.5w |
MB877458 |
US $4.92 |
||
|
80684E
|
80684E
MB828257 BULB, ROOM LAMP, RR12v-7.5w |
MB828257 |
US $5.62 |
||
|
80952
|
80952
MS820071 BULB, ROOM LAMP12v-5w |
MS820071 |
from US $2.61 |
||
|
80954
|
80954
MS450930 SCREW, FR DOOR TRIMTapping,4x12 |
MS450930 |
from US $1.40 |
||
|
80957
|
80957
MS820071 BULB, ROOM LAMP12v-5w |
MS820071 |
from US $2.61 |
||
|
80973
|
80973
MF453330 SCREW, ROOM LAMPTapping,5x10 |
MF453330 |
US $1.78 |
||
|
82122
|
82122
MB877431 SWITCH, ROOM LAMP |
MB877431 |
US $50.32 |
||
|
82166
|
82166
MB897996 SWITCH, RR PERSONAL LAMP |
MB897996 |
US $33.30 |
||
|
82166
|
82166
MB897997 SWITCH, RR PERSONAL LAMP |
MB897997 |
US $33.30 |
||
|
