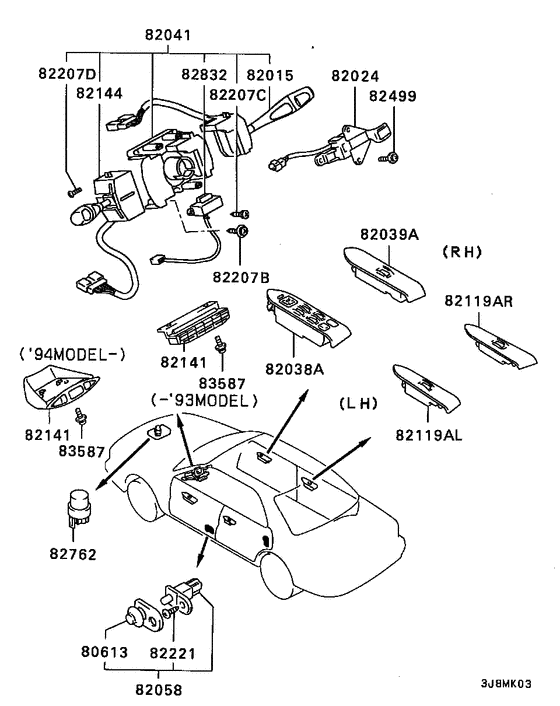

Switch & cigar lighter (SWITCH(COLUMN,P/W,DOOR LAMP)) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1993
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS(DOHC/4WS),4FA/T FED
- drive
- 2WD/4WS
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80613
|
80613
MB628452 CAP, DOOR LAMP SWITCH |
MB628452 |
from US $3.16 |
||
|
82015
|
82015
MB894785
SWITCH,WINDSHIELD WIPER & WINDSHIELD WASHER
|
MB894785 |
— | ||
|
82024
|
82024
MB852952 SWITCH, CRUISE CONTROL |
MB852952 |
US $103.60 |
||
|
82024
|
82024
MB903656 SWITCH, CRUISE CONTROL |
MB903656 |
US $108.04 |
||
|
82038A
|
82038A
MB795812
SWITCH ASSY,FR DOOR POWER WINDOW DRIVER SIDE
|
MB795812 |
— | ||
|
82038A
|
82038A
MR703016
SWITCH ASSY,FR DOOR POWER WINDOW DRIVER SIDE
|
MR703016 |
— | ||
|
82038A
|
82038A
MR714314
SWITCH ASSY,FR DOOR POWER WINDOW DRIVER SIDE
|
MR714314 |
— | ||
|
82039A
|
82039A
MB795813
SWITCH ASSY,FR DOOR POWER WINDOW ASSISTANT SIDE
|
MB795813 |
— | ||
|
82039A
|
82039A
MR704598
SWITCH ASSY,FR DOOR POWER WINDOW ASSISTANT SIDE
|
MR704598 |
— | ||
|
82039A
|
82039A
MR714313
SWITCH ASSY,FR DOOR POWER WINDOW ASSISTANT SIDE
|
MR714313 |
— | ||
|
82041
|
82041
MB802190
SWITCH,STEERING COLUMN
|
MB802190 |
— | ||
|
82041
|
82041
MB802191
SWITCH,STEERING COLUMN
|
MB802191 |
— | ||
|
82058
|
82058
MB698713 SWITCH KIT, DOOR LAMP1-connector(2p) |
MB698713 |
from US $12.15 |
||
|
82119AL
|
82119AL
MB790930 SWITCH ASSY, RR DOOR POWER WINDOW, LH |
MB790930 |
US $97.68 |
||
|
82119AL
|
82119AL
MR704195 SWITCH ASSY, RR DOOR POWER WINDOW, LH |
MR704195 |
US $116.92 |
||
|
82119AR
|
82119AR
MB790929 SWITCH ASSY, RR DOOR POWER WINDOW, RH |
MB790929 |
US $97.68 |
||
|
82119AR
|
82119AR
MR704194 SWITCH ASSY, RR DOOR POWER WINDOW, RH |
MR704194 |
US $116.92 |
||
|
82141
|
82141
MB823858
SWITCH,STEERING WHEEL REMOTE CONTROL
|
MB823858 |
— | ||
|
82141
|
82141
MB903663 SWITCH, STEERING WHEEL REMOTE CONTROL |
MB903663 |
US $429.52 |
||
|
82144
|
82144
MB894784
SWITCH,TURN SIGNAL LAMP & LIGHTING
|
MB894784 |
— | ||
|
82144
|
82144
MB894786
SWITCH,TURN SIGNAL LAMP & LIGHTING
|
MB894786 |
— | ||
|
82207B
|
82207B
MS350047 SCREW, STEERING COLUMN COVERWasher assembled,5x25 |
MS350047 |
US $2.07 |
||
|
82207C
|
82207C
MS450923 SCREW, STEERING WHEELTapping,3x8 |
MS450923 |
US $2.07 |
||
|
82207D
|
82207D
MB697239 SCREW, STEERING COLUMN SWITCH |
MB697239 |
US $2.22 |
||
|
82221
|
82221
MB383490 SCREW, RR PILLAR GARNISHTapping,5x14 |
MB383490 |
US $2.60 |
||
|
82499
|
82499
MS350133 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x12 |
MS350133 |
US $2.52 |
||
|
82762
|
82762
MB084670 RELAY, ENG CONTROL EQUIP |
MB084670 |
from US $21.94 |
||
|
82832
|
82832
MB863744 SENSOR, STEERING ANGULAR VELOCITY |
MB863744 |
US $275.28 |
||
|
83587
|
83587
MF350767 SCREW, FUEL FILLER LID PANELWasher assembled,5x10 |
MF350767 |
US $2.05 |
