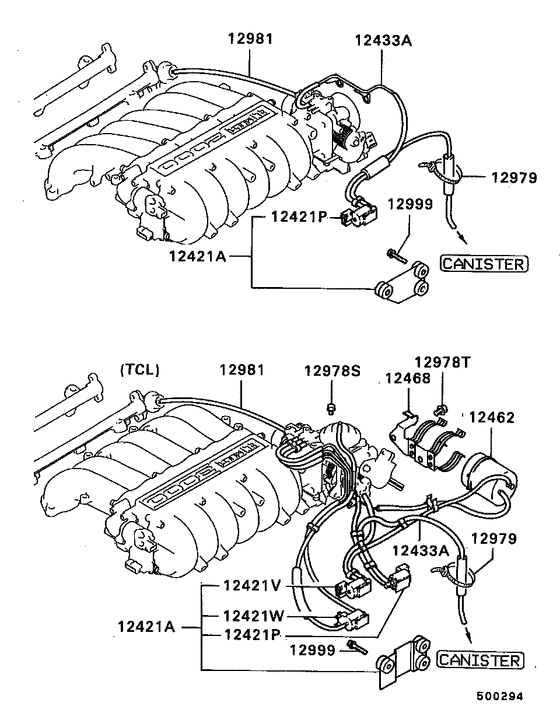

Emission control (-9405.3) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1996
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS(DOHC),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12421A
|
12421A
MB925835
VALVE ASSY,EMISSION SOLENOID
|
MB925835 |
— | ||
|
12421A
|
12421A
MB925902
VALVE ASSY,EMISSION SOLENOID
|
MB925902 |
— | ||
|
12421A
|
12421A
MD167384 VALVE ASSY,EMISSION SOLENOID |
MD167384 |
US $170.20 |
||
|
12421A
|
12421A
MD168751
VALVE ASSY,EMISSION SOLENOID
|
MD168751 |
— | ||
|
12421A
|
12421A
MR224611
VALVE ASSY,EMISSION SOLENOID
|
MR224611 |
— | ||
|
12421A
|
12421A
MR266772
VALVE ASSY,EMISSION SOLENOID
|
MR266772 |
— | ||
|
12421P
|
12421P
MD112375 VALVE, EMISSION SOLENOID |
MD112375 |
US $77.29 |
||
|
12421P
|
12421P
MR188756 VALVE, EMISSION SOLENOID |
MR188756 |
from US $68.68 |
||
|
12421P
|
12421P
MR312625 VALVE, EMISSION SOLENOID |
MR312625 |
US $86.87 |
||
|
12421V
|
12421V
MD165142 VALVE, EMISSION SOLENOID |
MD165142 |
US $95.76 |
||
|
12421W
|
12421W
MD162589 VALVE, EMISSION SOLENOID |
MD162589 |
US $69.56 |
||
|
12433A
|
12433A
MD168753
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD168753 |
— | ||
|
12433A
|
12433A
MD168755
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD168755 |
— | ||
|
12433A
|
12433A
MD192073
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD192073 |
— | ||
|
12433A
|
12433A
MD192079
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD192079 |
— | ||
|
12433A
|
12433A
MR224167
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR224167 |
— | ||
|
12462
|
12462
MD163790 VACUUM TANK, EMISSION CONTROL |
MD163790 |
US $44.40 |
||
|
12468
|
12468
MD163789 BRACKET, VACUUM TANK EMISSION CONTROL |
MD163789 |
US $22.94 |
||
|
12978S
|
12978S
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12978T
|
12978T
MF140221 BOLT, ROCKER COVERFlange,8x12 |
MF140221 |
from US $0.90 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12981
|
12981
MS632392 HOSE, EMISSION CONTROL EQUIP3x2000 |
MS632392 |
US $54.72 |
||
|
12999
|
12999
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
12999
|
12999
MF247232 BOLT, ELECTRIC FUEL PUMPWasher assembled,6x35 |
MF247232 |
US $2.66 |
||
|
12999
|
12999
MF247550 BOLT, FUEL LINEWasher assembled,6x30 |
MF247550 |
from US $0.90 |
||
|
12999
|
12999
MS240124 BOLT, FUEL LINEWasher assembled,6x30 |
MS240124 |
US $2.07 |
