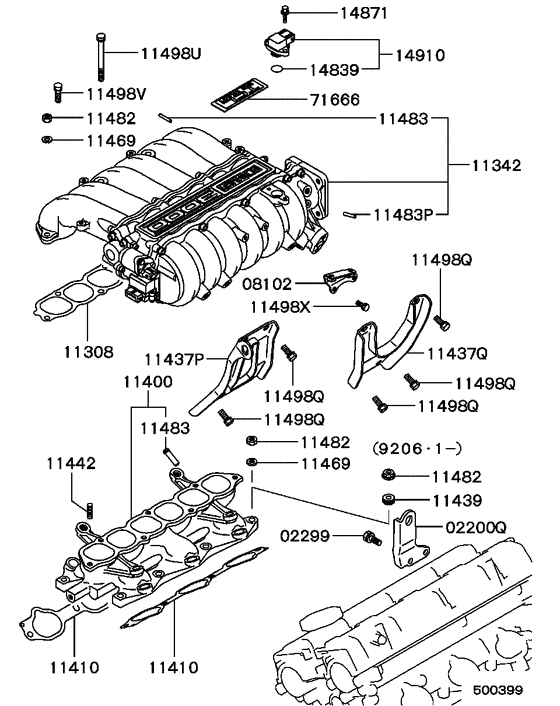

Inlet manifold (DOHC) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1995
- Sales region
- MMNA/MMAL
- Note
- LS(DOHC),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200Q
|
02200Q
MD107317 ENGINE HANGER |
MD107317 |
US $20.72 |
||
|
02200Q
|
02200Q
MD155655 ENGINE HANGER |
MD155655 |
US $55.50 |
||
|
02299
|
02299
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.01 |
||
|
02299
|
02299
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
08102
|
08102
MD157388 BRACKET, INLET MANIFOLD |
MD157388 |
US $7.99 |
||
|
11308
|
11308
MD143791
GASKET, ENG AIR INTAKE SURGE TANK
|
MD143791 |
— | ||
|
11308
|
11308
MD149539 GASKET, ENG AIR INTAKE SURGE TANK |
MD149539 |
from US $10.71 |
||
|
11342
|
11342
MD163793
TANK, ENG AIR INTAKE SURGE
|
MD163793 |
— | ||
|
11342
|
11342
MD196696 TANK, ENG AIR INTAKE SURGE |
MD196696 |
US $642.10 |
||
|
11342
|
11342
MD198077
TANK,ENG AIR INTAKE SURGE
|
MD198077 |
— | ||
|
11342
|
11342
MD198078
TANK,ENG AIR INTAKE SURGE
|
MD198078 |
— | ||
|
11342
|
11342
MD325545
TANK,ENG AIR INTAKE SURGE
|
MD325545 |
— | ||
|
11400
|
11400
MD162568 MANIFOLD, INLET |
MD162568 |
US $643.55 |
||
|
11400
|
11400
MD164708 MANIFOLD, INLET |
MD164708 |
US $783.33 |
||
|
11410
|
11410
MD151707
GASKET, INLET MANIFOLD
|
MD151707 |
— | ||
| replacement | |||||
|
11410
|
11410
MD164701 GASKET, INLET MANIFOLD |
MD164701 |
US $25.99 |
||
|
11410
|
11410
MD154025
GASKET, INLET MANIFOLD
|
MD154025 |
— | ||
| replacement | |||||
|
11410
|
11410
MD168419 GASKET, INLET MANIFOLD |
MD168419 |
from US $23.46 |
||
|
11410
|
11410
MD164701 GASKET, INLET MANIFOLD |
MD164701 |
US $25.99 |
||
|
11437P
|
11437P
MD166738 STAY, INLET MANIFOLD |
MD166738 |
US $55.50 |
||
|
11437P
|
11437P
MD308888
STAY,INLET MANIFOLD
|
MD308888 |
— | ||
|
11437Q
|
11437Q
MD159241 STAY, INLET MANIFOLD |
MD159241 |
US $61.42 |
||
|
11437Q
|
11437Q
MD160167 STAY, INLET MANIFOLD |
MD160167 |
US $61.42 |
||
|
11437Q
|
11437Q
MD305251
STAY,INLET MANIFOLD
|
MD305251 |
— | ||
|
11437Q
|
11437Q
MD305252
STAY,INLET MANIFOLD
|
MD305252 |
— | ||
|
11437Q
|
11437Q
MD308889
STAY,INLET MANIFOLD
|
MD308889 |
— | ||
|
11439
|
11439
MD165858 SPRING, INLET MANIFOLD DISC |
MD165858 |
US $10.06 |
||
|
11439
|
11439
MD307210 SPRING, INLET MANIFOLD DISC |
MD307210 |
from US $3.33 |
||
|
11442
|
11442
MS401927 STUD, INLET MANIFOLD8x25 |
MS401927 |
US $2.52 |
||
|
11469
|
11469
MF450435 WASHER, INLET MANIFOLDSpring,8 |
MF450435 |
US $1.48 |
||
|
11469
|
11469
MF450495 WASHER, CYLINDER HEADSpring,8 |
MF450495 |
US $4.51 |
||
|
11482
|
11482
MD090676 NUT, TIMING BELT TRAINFlange,8 |
MD090676 |
US $3.97 |
||
|
11482
|
11482
MF430151 NUT, RR AXLEJam,8 |
MF430151 |
US $2.05 |
||
|
11482
|
11482
MF430181 NUT, CYLINDER HEAD8 |
MF430181 |
US $2.74 |
||
|
11483
|
11483
MD088093 JOINT, ROCKER COVER BREATHER HOSE |
MD088093 |
US $4.59 |
||
|
11483
|
11483
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11498Q
|
11498Q
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
11498Q
|
11498Q
MF241855 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241855 |
US $3.01 |
||
|
11498Q
|
11498Q
MF245452
BOLT,INLET MANIFOLD
|
MF245452 |
— | ||
|
11498U
|
11498U
MF241862
BOLT, INLET MANIFOLD
|
MF241862 |
— | ||
|
11498U
|
11498U
MF241869 BOLT, INLET MANIFOLDWasher assembled,8x80 |
MF241869 |
US $3.26 |
||
|
11498V
|
11498V
MF241859 BOLT, INLET MANIFOLDWasher assembled,8x35 |
MF241859 |
US $1.78 |
||
|
11498X
|
11498X
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
||
|
14839
|
14839
MD632057 O-RING, ENG CONTROL PRESSURE SENSOR |
MD632057 |
from US $2.22 |
||
|
14871
|
14871
MF244805 BOLT, ENG CONTROL PRESSURE SENSORWasher assembled,5x18 |
MF244805 |
from US $1.33 |
||
|
14910
|
14910
MD305600 SENSOR, INLET MANIFOLD DIFF PRESSURE |
MD305600 |
from US $292.03 |
||
|
71666
|
71666
MD167533
LABEL, SURGE TANK MARK
|
MD167533 |
— | ||
