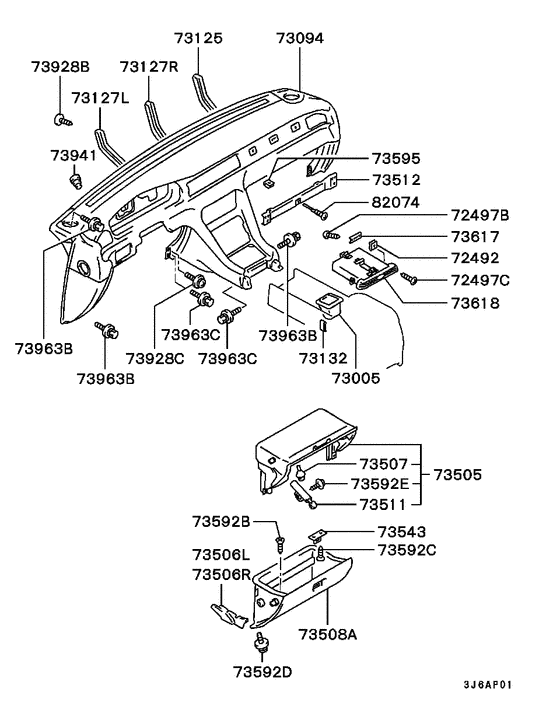

I/panel & related parts (I/PANEL PAD,GLOVEBOX,ETC. -'93MODEL) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1995
- Sales region
- MMNA/MMAL
- Note
- LS(DOHC),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72492
|
72492
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.50 |
||
|
72497B
|
72497B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
72497C
|
72497C
MF453094 SCREW, STEERING COLUMN COVERTapping,5x20 |
MF453094 |
from US $1.66 |
||
|
73005
|
73005
MB763891 ASHTRAY, INSTRUMENT PANEL |
MB763891 |
US $91.66 |
||
|
73005
|
73005
MR703012
ASHTRAY,INSTRUMENT PANEL
|
MR703012 |
— | ||
|
73005
|
73005
MR714380
ASHTRAY,INSTRUMENT PANEL
|
MR714380 |
— | ||
|
73094
|
73094
MB786902
PAD,INSTRUMENT PANEL
|
MB786902 |
— | ||
|
73094
|
73094
MB786903
PAD,INSTRUMENT PANEL
|
MB786903 |
— | ||
|
73094
|
73094
MB786904
PAD,INSTRUMENT PANEL
|
MB786904 |
— | ||
|
73094
|
73094
MB786905
PAD,INSTRUMENT PANEL
|
MB786905 |
— | ||
|
73094
|
73094
MR147946
PAD,INSTRUMENT PANEL
|
MR147946 |
— | ||
|
73094
|
73094
MR147947
PAD,INSTRUMENT PANEL
|
MR147947 |
— | ||
|
73094
|
73094
MR147949
PAD,INSTRUMENT PANEL
|
MR147949 |
— | ||
|
73125
|
73125
MB603800 REINFORCEMENT, INSTRUMENT PANEL |
MB603800 |
US $9.47 |
||
|
73125
|
73125
MB803387
REINFORCEMENT,INSTRUMENT PANEL
|
MB803387 |
— | ||
|
73127L
|
73127L
MB603797 REINFORCEMENT, INSTRUMENT PANEL, CTR LH |
MB603797 |
US $10.21 |
||
|
73127R
|
73127R
MB603795 REINFORCEMENT, INSTRUMENT PANEL, CTR RH |
MB603795 |
US $10.21 |
||
|
73132
|
73132
MB604627 SPRING, INSTRUMENT PANEL ASHTRAY HOLD |
MB604627 |
US $6.98 |
||
|
73505
|
73505
MB603806 COVER, GLOVEBOX |
MB603806 |
US $93.98 |
||
|
73505
|
73505
MR115440
COVER,GLOVEBOX
|
MR115440 |
— | ||
|
73506L
|
73506L
MB680867 COVER, GLOVEBOX SIDE, LH |
MB680867 |
US $11.84 |
||
|
73506R
|
73506R
MB680868 COVER, GLOVEBOX SIDE, RH |
MB680868 |
US $11.84 |
||
|
73507
|
73507
MB604673 CUSHION, FLOOR CONSOLE |
MB604673 |
US $4.24 |
||
|
73508A
|
73508A
MB786866 GLOVEBOX ASSY |
MB786866 |
US $291.56 |
||
|
73508A
|
73508A
MB786867 GLOVEBOX ASSY |
MB786867 |
US $291.56 |
||
|
73508A
|
73508A
MB786868 GLOVEBOX ASSY |
MB786868 |
US $364 |
||
|
73508A
|
73508A
MB786869 GLOVEBOX ASSY |
MB786869 |
US $364 |
||
|
73508A
|
73508A
MR714367
GLOVEBOX ASSY
|
MR714367 |
— | ||
|
73508A
|
73508A
MR714368
GLOVEBOX ASSY
|
MR714368 |
— | ||
|
73508A
|
73508A
MR714370
GLOVEBOX ASSY
|
MR714370 |
— | ||
|
73511
|
73511
MB603819 DAMPER, GLOVEBOX |
MB603819 |
US $22.94 |
||
|
73511
|
73511
MR115450
DAMPER,GLOVEBOX
|
MR115450 |
— | ||
|
73512
|
73512
MB603802
FRAME, GLOVEBOX, LWR
|
MB603802 |
— | ||
|
73512
|
73512
MB603803
FRAME,GLOVEBOX,LWR
|
MB603803 |
— | ||
|
73543
|
73543
MB603812 STRIKER, GLOVEBOX |
MB603812 |
US $11.99 |
||
|
73543
|
73543
MB958258
STRIKER,GLOVEBOX
|
MB958258 |
— | ||
|
73592B
|
73592B
MF453675 SCREW, QTR PILLAR GARNISHTapping,4x16 |
MF453675 |
US $3.42 |
||
|
73592C
|
73592C
MF453688 SCREW, GLOVEBOXTapping,5x20 |
MF453688 |
from US $1.97 |
||
|
73592D
|
73592D
MS350125 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x16 |
MS350125 |
US $3.15 |
||
|
73592E
|
73592E
MS450152 SCREW, STEERING WHEELTapping,4x10 |
MS450152 |
US $3.56 |
||
|
73592E
|
73592E
MS450177 SCREW, OVERFENDERTapping,5x16 |
MS450177 |
from US $2.81 |
||
|
73595
|
73595
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.50 |
||
|
73617
|
73617
MB603978 BRACKET, INSTRUMENT PANEL CONSOLE HOLDER |
MB603978 |
US $4 |
||
|
73618
|
73618
MB763679 HOLDER, INSTRUMENT PANEL CONSOLE CUP |
MB763679 |
US $119.14 |
||
|
73928B
|
73928B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
73928C
|
73928C
MS350125 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x16 |
MS350125 |
US $3.15 |
||
|
73941
|
73941
MB603995 GROMMET, INSTRUMENT PANEL PAD |
MB603995 |
US $6.22 |
||
|
73963B
|
73963B
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
73963C
|
73963C
MS240156 BOLTWasher assembled,6x20 |
MS240156 |
from US $0.78 |
||
|
82074
|
82074
MA600808 SWITCH, PARKING BRAKE PILOT |
MA600808 |
US $5.20 |
||
|
82074
|
82074
MB509377 SWITCH, GLOVEBOX LAMP |
MB509377 |
US $10.06 |
