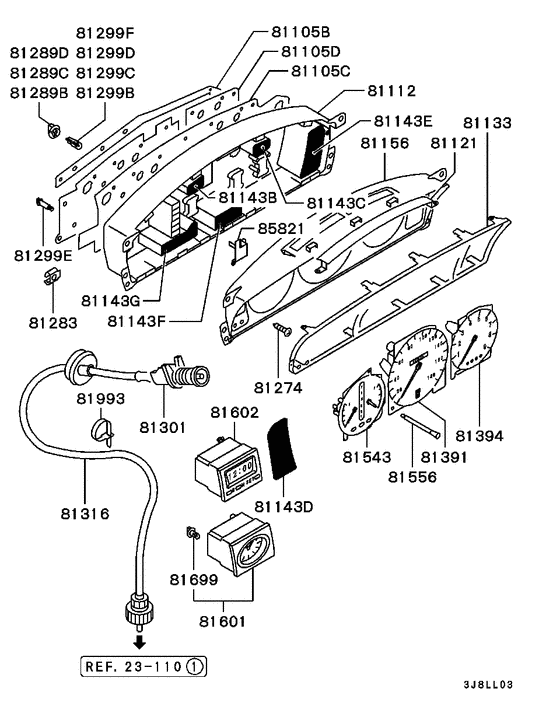

Meter,gauge & clock (COMBINATION METER) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1995
- Sales region
- MMNA/MMAL
- Note
- LS(DOHC),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105B
|
81105B
MB849522
BOARD, INSTRUMENT PANEL PRINTED CIRCUIT
|
MB849522 |
— | ||
|
81105C
|
81105C
MB877322
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB877322 |
— | ||
|
81105C
|
81105C
MB877323
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB877323 |
— | ||
|
81105C
|
81105C
MB877324
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB877324 |
— | ||
|
81105C
|
81105C
MB877325
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB877325 |
— | ||
|
81105D
|
81105D
MB877334
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB877334 |
— | ||
|
81105D
|
81105D
MB877336
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB877336 |
— | ||
|
81105D
|
81105D
MB877340
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB877340 |
— | ||
|
81112
|
81112
MB877312
CASE,COMBINATION METER
|
MB877312 |
— | ||
|
81121
|
81121
MB849541 COVER, COMBINATION METER BULB |
MB849541 |
US $9.18 |
||
|
81133
|
81133
MB849508
GLASS, COMBINATION METER
|
MB849508 |
— | ||
|
81143B
|
81143B
MB849547
LENS, COMBINATION METER INDICATOR
|
MB849547 |
— | ||
|
81143C
|
81143C
MB849548
LENS, COMBINATION METER INDICATOR
|
MB849548 |
— | ||
|
81143D
|
81143D
MB877348
LENS,COMBINATION METER INDICATOR
|
MB877348 |
— | ||
|
81143E
|
81143E
MB877350
LENS,COMBINATION METER INDICATOR
|
MB877350 |
— | ||
|
81143F
|
81143F
MB849550 LENS, COMBINATION METER INDICATOR |
MB849550 |
US $7.10 |
||
|
81143G
|
81143G
MB849551 LENS, COMBINATION METER INDICATOR |
MB849551 |
US $6.81 |
||
|
81143G
|
81143G
MB877351
LENS,COMBINATION METER INDICATOR
|
MB877351 |
— | ||
|
81156
|
81156
MB877314
PLATE,COMBINATION METER WINDOW
|
MB877314 |
— | ||
|
81274
|
81274
MF453034 SCREW, ENG CONTROL EQUIPTapping,5x20 |
MF453034 |
from US $1.63 |
||
|
81283
|
81283
MB326019 NUT, INSTRUMENT PANEL METERSpring,5 |
MB326019 |
US $2.19 |
||
|
81289B
|
81289B
MB849559
SOCKET, INSTRUMENT PANEL METER
|
MB849559 |
— | ||
|
81289C
|
81289C
MB066067 SOCKET, INSTRUMENT PANEL TRIM PLATE |
MB066067 |
from US $2.15 |
||
|
81289D
|
81289D
MB522338
SOCKET, INSTRUMENT PANEL METER
|
MB522338 |
— | ||
| replacement | |||||
|
81289D
|
81289D
MB045009 SOCKET, INSTRUMENT PANEL TRIM PLATE |
MB045009 |
from US $1.91 |
||
|
81299B
|
81299B
MB849558
BULB, INSTRUMENT PANEL METER
|
MB849558 |
— | ||
|
81299C
|
81299C
MB066068 BULB, INSTRUMENT PANEL METER14v-1.4w |
MB066068 |
from US $2.87 |
||
|
81299D
|
81299D
MB849556 BULB, INSTRUMENT PANEL METER12v-3.4w |
MB849556 |
US $2.66 |
||
|
81299E
|
81299E
MB849560 BULB, INSTRUMENT PANEL METER12v-1.12w |
MB849560 |
US $8.12 |
||
|
81299F
|
81299F
MB849555
BULB, INSTRUMENT PANEL METER
|
MB849555 |
— | ||
|
81301
|
81301
MB326171 ADAPTER, SPEEDOMETER CABLE |
MB326171 |
from US $1.42 |
||
|
81316
|
81316
MB803445
CABLE,SPEEDOMETER
|
MB803445 |
— | ||
|
81391
|
81391
MB849075
Speedometer
|
MB849075 |
— | ||
|
81391
|
81391
MB849076
Speedometer
|
MB849076 |
— | ||
|
81391
|
81391
MB958059 Speedometer |
MB958059 |
US $419.33 |
||
|
81391
|
81391
MB958060 Speedometer |
MB958060 |
US $419.33 |
||
|
81394
|
81394
MB849516 TACHOMETER |
MB849516 |
US $329.06 |
||
|
81394
|
81394
MB849517 TACHOMETER |
MB849517 |
US $329.06 |
||
|
81394
|
81394
MB849518 TACHOMETER |
MB849518 |
US $329.06 |
||
|
81543
|
81543
MB877318
GAUGE,FUEL & WATER TEMPERATURE
|
MB877318 |
— | ||
|
81556
|
81556
MB849562 KNOB, TRIP METER |
MB849562 |
US $5.18 |
||
|
81601
|
81601
MB603959 CLOCK, ANALOGUE |
MB603959 |
US $394.58 |
||
|
81602
|
81602
MB849264 CLOCK, DIGITAL |
MB849264 |
US $244.20 |
||
|
81699
|
81699
MB849100 BULB, CLOCK |
MB849100 |
US $4.88 |
||
|
81993
|
81993
MS470087 BAND, FUEL TANKL=122 |
MS470087 |
US $0.82 |
||
|
85821
|
85821
MB849561 TERMINAL, WIRING |
MB849561 |
US $2.22 |
||
