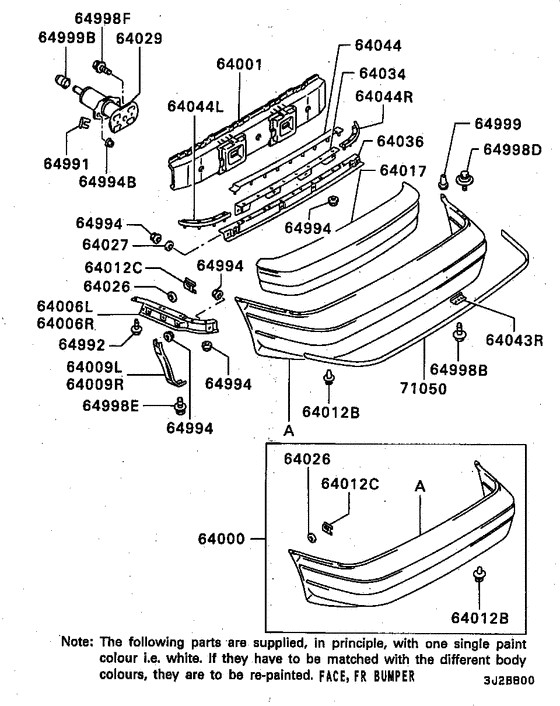

Rear bumper & support Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1995
- Sales region
- MMNA/MMAL
- Note
- LS(DOHC),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64000
|
64000
MB860357
FACE KIT,RR BUMPER
|
MB860357 |
— | ||
|
64001
|
64001
MB583969
REINFORCEMENT,RR BUMPER
|
MB583969 |
— | ||
|
64006L
|
64006L
MB656965
BRACKET, RR BUMPER SIDE, UPR LH
|
MB656965 |
— | ||
|
64006R
|
64006R
MB656966
BRACKET, RR BUMPER SIDE, UPR RH
|
MB656966 |
— | ||
|
64009L
|
64009L
MB656971
BRACKET, RR BUMPER SIDE, LWR LH
|
MB656971 |
— | ||
|
64009R
|
64009R
MB656972
BRACKET, RR BUMPER SIDE, LWR RH
|
MB656972 |
— | ||
|
64012B
|
64012B
MB887567 CLIP, FR BUMPER |
MB887567 |
US $3.42 |
||
|
64012C
|
64012C
MB325299 CLIP, FR BUMPER0.3 |
MB325299 |
US $4.24 |
||
|
64017
|
64017
MB583968
CORE,RR BUMPER
|
MB583968 |
— | ||
|
64026
|
64026
MB369257 GASKET, FR BUMPER |
MB369257 |
US $1.92 |
||
|
64027
|
64027
MA156028 GASKET, FR BUMPER25 |
MA156028 |
US $4.38 |
||
|
64027
|
64027
MB369257 GASKET, FR BUMPER |
MB369257 |
US $1.92 |
||
|
64029
|
64029
MB574120 ABSORBER, FR BUMPER |
MB574120 |
US $253.08 |
||
|
64034
|
64034
MB583995
PLATE,RR BUMPER
|
MB583995 |
— | ||
|
64036
|
64036
MB583985
PLATE,RR BUMPER FACE SUPPORT
|
MB583985 |
— | ||
|
64043R
|
64043R
MB583997
PLATE,RR BUMPER,LWR RH
|
MB583997 |
— | ||
|
64044
|
64044
MB786686
PLATE,RR BUMPER,UPR
|
MB786686 |
— | ||
|
64044L
|
64044L
MB583957
PLATE,RR BUMPER,UPR LH
|
MB583957 |
— | ||
|
64044R
|
64044R
MB583958
PLATE,RR BUMPER,UPR RH
|
MB583958 |
— | ||
|
64991
|
64991
MB574119 SPACER, FR BUMPER1.0 |
MB574119 |
US $7.55 |
||
|
64992
|
64992
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
64994
|
64994
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
64994B
|
64994B
MS440524 NUT, FUEL TANKWasher assembled,10 |
MS440524 |
US $2.46 |
||
|
64998B
|
64998B
MB403510 BOLT, FR BUMPERFlange,6x20 |
MB403510 |
US $2.96 |
||
|
64998B
|
64998B
MU140009 BOLT, FR BUMPERFlange,6x20 |
MU140009 |
from US $1.23 |
||
|
64998D
|
64998D
MB612553 BOLT, RR BUMPERWasher assembled,6x16 |
MB612553 |
from US $1.74 |
||
|
64998E
|
64998E
MS240156 BOLTWasher assembled,6x20 |
MS240156 |
from US $0.78 |
||
|
64998E
|
64998E
MS240602 BOLT, FR BUMPERWasher assembled,6x20 |
MS240602 |
from US $0.98 |
||
|
64998F
|
64998F
MS240146 BOLT, CRUISE CONTROL EQUIPWasher assembled,8x25 |
MS240146 |
from US $0.90 |
||
|
64998F
|
64998F
MS240176 BOLT, FR BUMPERWasher assembled,8x30 |
MS240176 |
from US $1.05 |
||
|
64999
|
64999
MU480035 GROMMET, ABS CONTROL EQUIPScrew,6 |
MU480035 |
from US $0.78 |
||
|
64999B
|
64999B
MB552833
GROMMET, FR BUMPER
|
MB552833 |
— | ||
|
71050
|
71050
MB843848 MOULDING, RR BUMPER |
MB843848 |
US $82.76 |
