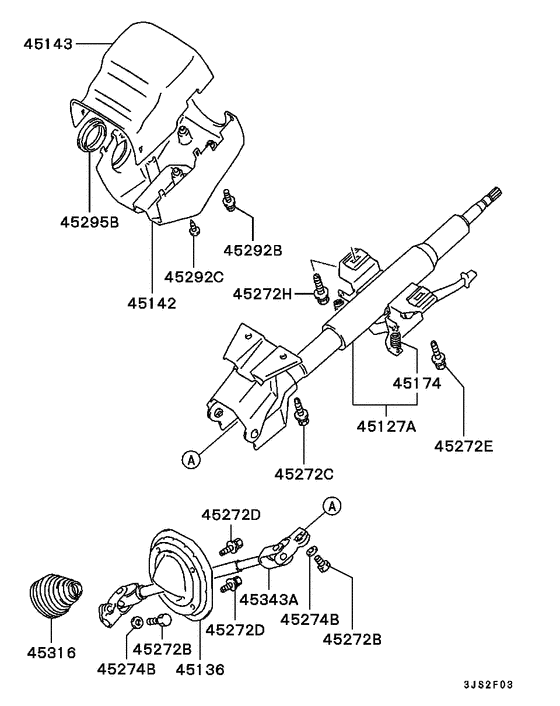

Steering column & cover (-'93MODEL) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1995
- Sales region
- MMNA/MMAL
- Note
- LS(DOHC),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45127A
|
45127A
MB673712
COLUMN ASSY,STEERING
|
MB673712 |
— | ||
|
45127A
|
45127A
MR130358
COLUMN ASSY,STEERING
|
MR130358 |
— | ||
|
45136
|
45136
MB673715
COVER,STEERING SHAFT JOINT
|
MB673715 |
— | ||
|
45142
|
45142
MB786888
COVER,STEERING COLUMN,LWR
|
MB786888 |
— | ||
|
45142
|
45142
MB786889
COVER,STEERING COLUMN,LWR
|
MB786889 |
— | ||
|
45142
|
45142
MR175391
COVER,STEERING COLUMN,LWR
|
MR175391 |
— | ||
|
45142
|
45142
MR714531
COVER,STEERING COLUMN,LWR
|
MR714531 |
— | ||
|
45142
|
45142
MR714532
COVER,STEERING COLUMN,LWR
|
MR714532 |
— | ||
|
45143
|
45143
MB786918
COVER,STEERING COLUMN,UPR
|
MB786918 |
— | ||
|
45143
|
45143
MB786919
COVER,STEERING COLUMN,UPR
|
MB786919 |
— | ||
|
45143
|
45143
MR175390
COVER,STEERING COLUMN,UPR
|
MR175390 |
— | ||
|
45143
|
45143
MR714533
COVER,STEERING COLUMN,UPR
|
MR714533 |
— | ||
|
45143
|
45143
MR714534
COVER,STEERING COLUMN,UPR
|
MR714534 |
— | ||
|
45174
|
45174
MB564668
SPRING,STEERING COLUMN BRACKET
|
MB564668 |
— | ||
|
45174
|
45174
MB870637 SPRING, STEERING COLUMN BRACKET |
MB870637 |
US $6.81 |
||
|
45272B
|
45272B
MV027263 BOLT, STEERING COLUMN INR |
MV027263 |
US $3.26 |
||
|
45272C
|
45272C
MS240147 BOLT, GLOW CONTROL EQUIPWasher assembled,8x30 |
MS240147 |
from US $1.44 |
||
|
45272D
|
45272D
MS240082 BOLT, FUEL LINEWasher assembled,6x20 |
MS240082 |
US $2.60 |
||
|
45272E
|
45272E
MS240208 BOLT, STEERING COLUMNWasher assembled,8x30 |
MS240208 |
US $3.11 |
||
|
45272H
|
45272H
MB249414 BOLT, BATTERY WIRINGWasher assembled,8x30 |
MB249414 |
US $4.10 |
||
|
45274B
|
45274B
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
45292B
|
45292B
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
45292C
|
45292C
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
45292C
|
45292C
MF453036 SCREW, SCUFF PLATETapping,5x30 |
MF453036 |
US $4.51 |
||
|
45295B
|
45295B
MB522123 GROMMET, STEERING COLUMN COVER48 |
MB522123 |
from US $2.30 |
||
|
45316
|
45316
MB243859 BOOT, STEERING SHAFT UNIVERSAL JOINT |
MB243859 |
US $7.11 |
||
|
45343A
|
45343A
MB616626
JOINT ASSY,STEERING SHAFT
|
MB616626 |
— | ||
|
45343A
|
45343A
MB616628
JOINT ASSY,STEERING SHAFT
|
MB616628 |
— |
