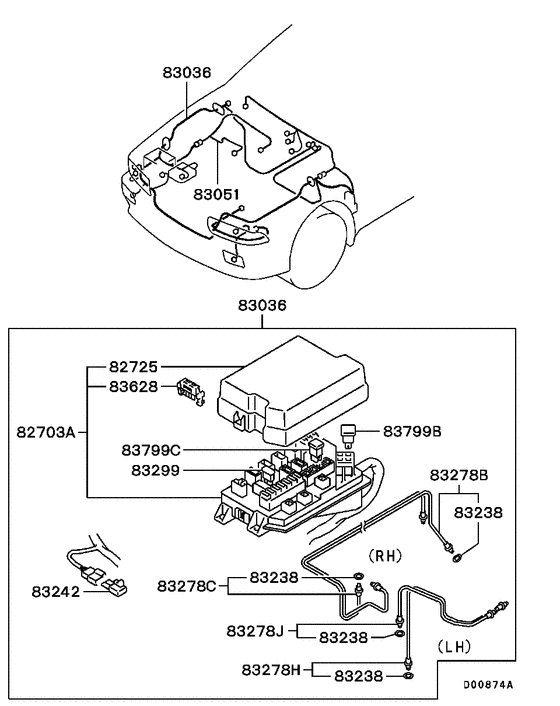

Wiring & attaching parts (WIRING HARNESS(AROUND ENGINE ROOM)) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1995
- Sales region
- MMNA/MMAL
- Note
- LS(DOHC),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82703A
|
82703A
MB685878
BOX ASSY,RELAY
|
MB685878 |
— | ||
|
82703A
|
82703A
MR122367
BOX ASSY,RELAY
|
MR122367 |
— | ||
|
82703A
|
82703A
MR122368
BOX ASSY,RELAY
|
MR122368 |
— | ||
|
82725
|
82725
MB801317
COVER,RELAY BOX
|
MB801317 |
— | ||
|
82725
|
82725
MR122371
COVER,RELAY BOX
|
MR122371 |
— | ||
|
83036
|
83036
MB818125
HARNESS,CHASSIS,FR
|
MB818125 |
— | ||
|
83036
|
83036
MB818127
HARNESS,CHASSIS,FR
|
MB818127 |
— | ||
|
83036
|
83036
MB943662
HARNESS,CHASSIS,FR
|
MB943662 |
— | ||
|
83036
|
83036
MB943663
HARNESS,CHASSIS,FR
|
MB943663 |
— | ||
|
83036
|
83036
MR122425
HARNESS,CHASSIS,FR
|
MR122425 |
— | ||
|
83036
|
83036
MR122426
HARNESS,CHASSIS,FR
|
MR122426 |
— | ||
|
83051
|
83051
MB818301
HARNESS,CONTROL
|
MB818301 |
— | ||
|
83051
|
83051
MB818305
HARNESS,CONTROL
|
MB818305 |
— | ||
|
83051
|
83051
MB943672
HARNESS,CONTROL
|
MB943672 |
— | ||
|
83051
|
83051
MB943676
HARNESS,CONTROL
|
MB943676 |
— | ||
|
83051
|
83051
MR122434
HARNESS,CONTROL
|
MR122434 |
— | ||
|
83051
|
83051
MR122440
HARNESS,CONTROL
|
MR122440 |
— | ||
|
83051
|
83051
MR207338
HARNESS,CONTROL
|
MR207338 |
— | ||
|
83238
|
83238
MB573694 O-RING, A/SUSP |
MB573694 |
US $5.18 |
||
|
83242
|
83242
MU804011
DIODE, INSTRUMENT PANEL WIRING
|
MU804011 |
— | ||
| replacement | |||||
|
83242
|
83242
MU804024 DIODE, CHASSIS WIRING2p |
MU804024 |
from US $4.95 |
||
|
83278B
|
83278B
MB672015 TUBE, WIRING HARNESS ECS AIR |
MB672015 |
US $56.24 |
||
|
83278C
|
83278C
MB672016 TUBE, WIRING HARNESS ECS AIR |
MB672016 |
US $63.64 |
||
|
83278H
|
83278H
MB844207
TUBE,WIRING HARNESS ECS AIR
|
MB844207 |
— | ||
|
83278J
|
83278J
MB844208
TUBE,WIRING HARNESS ECS AIR
|
MB844208 |
— | ||
|
83299
|
83299
MS810965 FUSE, SWITCHBlade type,10a |
MS810965 |
from US $1.31 |
||
|
83299
|
83299
MS810966 FUSE, BODY WIRINGBlade type,15a |
MS810966 |
from US $1.19 |
||
|
83299
|
83299
MS810967 FUSE, RELAYBlade type,20a |
MS810967 |
from US $1.40 |
||
|
83299
|
83299
MS810969 FUSE, CHASSIS WIRINGBlade type,30a |
MS810969 |
from US $1.33 |
||
|
83628
|
83628
MB665450 SHORT PIN, FUSE BOX MAIN TERMINAL4p,yellow |
MB665450 |
US $4.14 |
||
|
83799B
|
83799B
MU840020 FUSIBLE LINK60a,screw up type |
MU840020 |
from US $8.50 |
||
|
83799B
|
83799B
MU840022 FUSIBLE LINK100a,screw up type |
MU840022 |
from US $6.84 |
||
|
83799C
|
83799C
MU840015 FUSIBLE LINK30a,conn type |
MU840015 |
from US $9.03 |
||
|
83799C
|
83799C
MU840016 FUSIBLE LINK40a,conn type |
MU840016 |
from US $7.98 |
||
|
83799C
|
83799C
MU840017 FUSIBLE LINK50a,conn type |
MU840017 |
US $14.36 |
||
|
83799C
|
83799C
MU840018 FUSIBLE LINK60a,conn type |
MU840018 |
US $14.36 |
||
