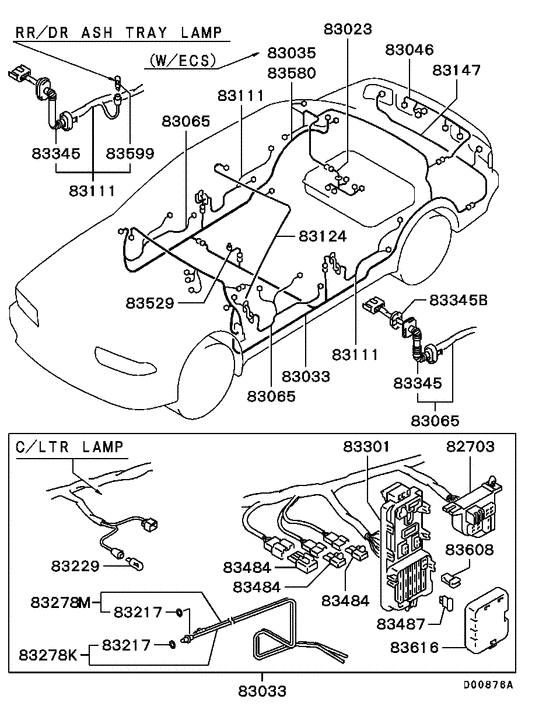

Wiring & attaching parts (WIRING HARNESS(AROUND DOOR,FLOOR ETC.)) Diagram Mitsubishi DIAMANTE
- Year
- 1991 - 1995
- Sales region
- MMNA/MMAL
- Note
- LS(DOHC),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82703
|
82703
MB852372
BOX,RELAY
|
MB852372 |
— | ||
|
83023
|
83023
MB627250 HARNESS, FUEL PUMP |
MB627250 |
US $76.22 |
||
|
83023
|
83023
MB627253 HARNESS, FUEL PUMP |
MB627253 |
US $222 |
||
|
83023
|
83023
MB627254 HARNESS, FUEL PUMP |
MB627254 |
US $279.72 |
||
|
83033
|
83033
MB818155
HARNESS,BODY MAIN
|
MB818155 |
— | ||
|
83033
|
83033
MB818159
HARNESS,BODY MAIN
|
MB818159 |
— | ||
|
83033
|
83033
MB943652
HARNESS,CHASSIS,FR
|
MB943652 |
— | ||
|
83033
|
83033
MB943653
HARNESS,CHASSIS,FR
|
MB943653 |
— | ||
|
83033
|
83033
MR142811
HARNESS,BODY MAIN
|
MR142811 |
— | ||
|
83033
|
83033
MR217467
HARNESS,BODY MAIN
|
MR217467 |
— | ||
|
83033
|
83033
MR217470
HARNESS,BODY MAIN
|
MR217470 |
— | ||
|
83035
|
83035
MB852383
HARNESS,ECS
|
MB852383 |
— | ||
|
83046
|
83046
MB685525
HARNESS,TRUNK LID
|
MB685525 |
— | ||
|
83046
|
83046
MB953027
HARNESS,TRUNK LID
|
MB953027 |
— | ||
|
83046
|
83046
MR122445
HARNESS,TRUNK LID
|
MR122445 |
— | ||
|
83065
|
83065
MB818361
HARNESS,FR DOOR
|
MB818361 |
— | ||
|
83065
|
83065
MB818371
HARNESS,FR DOOR
|
MB818371 |
— | ||
|
83065
|
83065
MR122419
HARNESS,FR DOOR
|
MR122419 |
— | ||
|
83065
|
83065
MR122420
HARNESS,FR DOOR
|
MR122420 |
— | ||
|
83065
|
83065
MR123570
HARNESS,FR DOOR
|
MR123570 |
— | ||
|
83065
|
83065
MR123571
HARNESS,FR DOOR
|
MR123571 |
— | ||
|
83111
|
83111
MB627350 HARNESS, RR DOORRh |
MB627350 |
US $116.18 |
||
|
83111
|
83111
MB627354 HARNESS, RR DOORLh |
MB627354 |
US $116.18 |
||
|
83124
|
83124
MB685969
HARNESS,ROOM LAMP
|
MB685969 |
— | ||
|
83124
|
83124
MB863121
HARNESS,ROOM LAMP
|
MB863121 |
— | ||
|
83124
|
83124
MB943506
HARNESS,ROOM LAMP
|
MB943506 |
— | ||
|
83124
|
83124
MB943507
HARNESS,ROOM LAMP
|
MB943507 |
— | ||
|
83124
|
83124
MB943508
HARNESS,ROOM LAMP
|
MB943508 |
— | ||
|
83124
|
83124
MR122443
HARNESS,ROOM LAMP
|
MR122443 |
— | ||
|
83124
|
83124
MR122444
HARNESS,ROOM LAMP
|
MR122444 |
— | ||
|
83147
|
83147
MB685503
HARNESS,TRUNK ROOM
|
MB685503 |
— | ||
|
83217
|
83217
MB573694 O-RING, A/SUSP |
MB573694 |
US $5.18 |
||
|
83229
|
83229
MB281995 BULB, INSTRUMENT PANEL METER12v-1.4w,g-10 |
MB281995 |
from US $2.74 |
||
|
83278K
|
83278K
MB844209
TUBE,WIRING HARNESS ECS AIR
|
MB844209 |
— | ||
|
83278M
|
83278M
MB844210
TUBE,WIRING HARNESS ECS AIR
|
MB844210 |
— | ||
|
83301
|
83301
MB839030 BLOCK, CHASSIS HARNESS JUNCTION |
MB839030 |
US $228.46 |
||
|
83345
|
83345
MB627261 GROMMET, DOOR WIRINGRubber,22x42-32x46 |
MB627261 |
US $32.56 |
||
|
83345
|
83345
MB801311 GROMMET, DOOR WIRINGRubber,42x48-38x48 |
MB801311 |
US $4 |
||
|
83345B
|
83345B
MB801310 GROMMET, DOOR WIRINGInner,plastic,46x40 |
MB801310 |
US $4 |
||
|
83484
|
83484
MU804010 DIODE, CHASSIS WIRING1.5a,4p |
MU804010 |
from US $28.78 |
||
|
83484
|
83484
MU804011
DIODE, INSTRUMENT PANEL WIRING
|
MU804011 |
— | ||
| replacement | |||||
|
83484
|
83484
MU804024 DIODE, CHASSIS WIRING2p |
MU804024 |
from US $4.95 |
||
|
83484
|
83484
MU804014 DIODE, CHASSIS WIRING1.5a,4p |
MU804014 |
US $45.14 |
||
|
83487
|
83487
MS810965 FUSE, SWITCHBlade type,10a |
MS810965 |
from US $1.31 |
||
|
83487
|
83487
MS810966 FUSE, BODY WIRINGBlade type,15a |
MS810966 |
from US $1.19 |
||
|
83487
|
83487
MS810967 FUSE, RELAYBlade type,20a |
MS810967 |
from US $1.40 |
||
|
83487
|
83487
MS810968 FUSE, INSTRUMENT PANEL WIRINGBlade type,25a |
MS810968 |
from US $1.33 |
||
|
83487
|
83487
MS810969 FUSE, CHASSIS WIRINGBlade type,30a |
MS810969 |
from US $1.33 |
||
|
83529
|
83529
MB869569 HARNESS, FLOOR RR CONSOLE |
MB869569 |
US $32.56 |
||
|
83580
|
83580
MB852384
HARNESS,TELEPHONE
|
MB852384 |
— | ||
|
83599
|
83599
MB281995 BULB, INSTRUMENT PANEL METER12v-1.4w,g-10 |
MB281995 |
from US $2.74 |
||
|
83608
|
83608
MB529459 PULLER, FUSE |
MB529459 |
US $9.62 |
||
|
83616
|
83616
MB863339
COVER,FUSE BOX
|
MB863339 |
— | ||
|
83616
|
83616
MR217471
COVER,FUSE BOX
|
MR217471 |
— | ||
