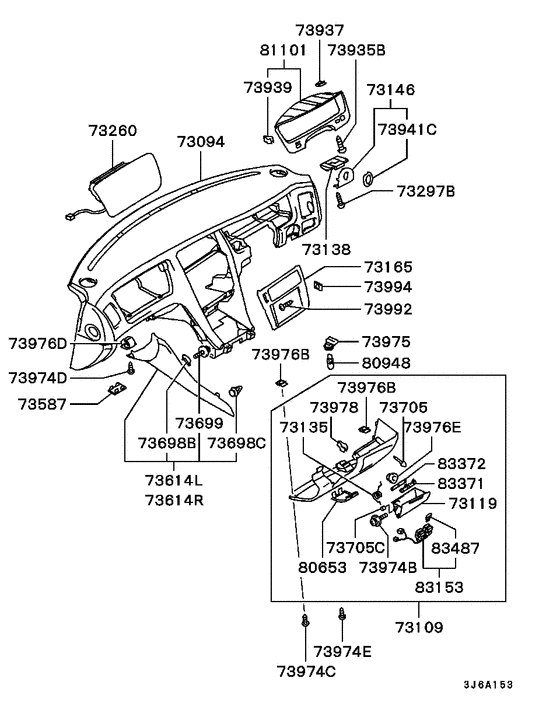

I/panel & related parts (INSTRUMENT PANEL,GLOVEBOX,ETC.) Diagram Mitsubishi DIAMANTE
- Year
- 1997 - 2000
- Sales region
- Japan
- Note
- PATROL-CAR(WHITE/BLACK),5FA/T
- transmission
- 5FA/T
- grade
- PATROL-CAR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73094
|
73094
MR782050 PAD, INSTRUMENT PANEL |
MR782050 |
US $920.16 |
||
|
73109
|
73109
MR782085 PANEL, INSTRUMENT, LWR |
MR782085 |
US $217.44 |
||
|
73119
|
73119
MR782092 POCKET, SUNGLASSES |
MR782092 |
US $16.56 |
||
|
73135
|
73135
MR218691 SPRING, INSTRUMENT PANEL PARCEL BOX LID |
MR218691 |
US $4.03 |
||
|
73138
|
73138
MR146912 PAD, INSTRUMENT PANEL KEY CYLINDER |
MR146912 |
US $10.94 |
||
|
73146
|
73146
MR739289 PANEL, INSTRUMENT PANEL KEY CYLINDER |
MR739289 |
US $8.93 |
||
|
73165
|
73165
MR227610 PANEL, INSTRUMENT, CTR |
MR227610 |
US $100.08 |
||
|
73260
|
73260
MR381649 MODULE, PASSENGER GAS AIR BAG |
MR381649 |
US $2,275.20 |
||
|
73297B
|
73297B
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.73 |
||
|
73587
|
73587
MR168285 PLUG, GLOVEBOX |
MR168285 |
US $4.46 |
||
|
73614L
|
73614L
MR739286 COVER, INSTRUMENT PANEL CONSOLE SIDE, LH |
MR739286 |
US $73.44 |
||
|
73614R
|
73614R
MR739284 COVER, INSTRUMENT PANEL CONSOLE SIDE, RH |
MR739284 |
US $73.44 |
||
|
73698B
|
73698B
MR201562 CLIP, INSTRUMENT PANEL CONSOLE |
MR201562 |
US $4.75 |
||
|
73698B
|
73698B
MR201563 CLIP, INSTRUMENT PANEL CONSOLE |
MR201563 |
US $4.75 |
||
|
73698C
|
73698C
MR270393 CLIP, INSTRUMENT PANEL CONSOLE18.5x13.5 |
MR270393 |
from US $3.67 |
||
|
73699
|
73699
MB409435 SCREW, INSTRUMENT PANELTapping,4x10 |
MB409435 |
US $2.64 |
||
|
73705
|
73705
MB424790 CUSHION, GLOVEBOX |
MB424790 |
US $2.59 |
||
|
73705C
|
73705C
MR240619 CUSHION, INSTRUMENT PANEL PARCEL BOX |
MR240619 |
US $6.05 |
||
|
73935B
|
73935B
MF453687 SCREW, INSTRUMENT PANELTapping,5x16 |
MF453687 |
US $2.11 |
||
|
73937
|
73937
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.67 |
||
|
73939
|
73939
MB652510 CLIP, INSTRUMENT PANEL PAD |
MB652510 |
from US $0.97 |
||
|
73941C
|
73941C
MR216629 GROMMET, INSTRUMENT PANEL SWITCH |
MR216629 |
US $4.03 |
||
|
73974B
|
73974B
MB326477 SCREW, GLOVEBOXTapping,4x10 |
MB326477 |
US $2.38 |
||
|
73974C
|
73974C
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.73 |
||
|
73974D
|
73974D
MF453094 SCREW, STEERING COLUMN COVERTapping,5x20 |
MF453094 |
from US $1.67 |
||
|
73974E
|
73974E
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.69 |
||
|
73975
|
73975
MU821001 SOCKET, INSTRUMENT PANEL UNDER TRIM |
MU821001 |
US $6.77 |
||
|
73976B
|
73976B
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.67 |
||
|
73976D
|
73976D
MB326019 NUT, INSTRUMENT PANEL METERSpring,5 |
MB326019 |
US $2.11 |
||
|
73976E
|
73976E
MS440122 NUT, HAC EQUIPFlange,5 |
MS440122 |
US $2.45 |
||
|
73978
|
73978
MB652510 CLIP, INSTRUMENT PANEL PAD |
MB652510 |
from US $0.97 |
||
|
73992
|
73992
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.73 |
||
|
73994
|
73994
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.67 |
||
|
80653
|
80653
MB603982 LENS, FOOT LAMP |
MB603982 |
US $8.64 |
||
|
80948
|
80948
MF820572 BULB, GLOVEBOX |
MF820572 |
from US $1.45 |
||
| replacement | |||||
|
80948
|
80948
MB439505
BULB, HEATER CONTROL EQUIP
|
MB439505 |
— | ||
|
81101
|
81101
MR338296 BEZEL, COMBINATION METER |
MR338296 |
US $90.72 |
||
|
83153
|
83153
MR338494 SUB HARNESS, BODY |
MR338494 |
US $50.40 |
||
|
83371
|
83371
MR338417 BRACKET, INSTRUMENT PANEL HARNESS CONNECTOR |
MR338417 |
US $9.07 |
||
|
83372
|
83372
MR338416 PLATE, HARNESS CONNECTOR |
MR338416 |
US $5.47 |
||
|
83487
|
83487
MS810965 FUSE, SWITCHBlade type,10a |
MS810965 |
from US $1.33 |
||
|
83487
|
83487
MS810966 FUSE, BODY WIRINGBlade type,15a |
MS810966 |
from US $1.35 |
||
|
83487
|
83487
MS810967 FUSE, RELAYBlade type,20a |
MS810967 |
from US $1.39 |
||
