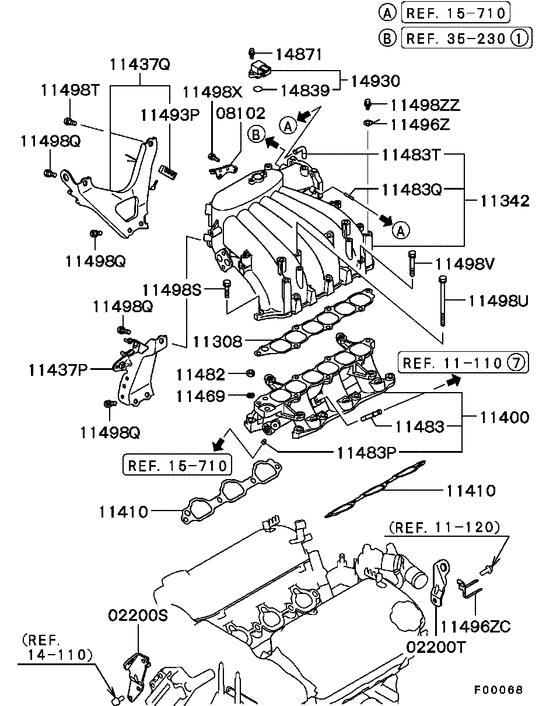

Inlet manifold (ALL) Diagram Mitsubishi DIAMANTE
- Year
- 2002 - 2005
- Sales region
- Japan
- Note
- 25V-SE,S4FA/T
- drive
- 2WD
- transmission
- S4FA/T
- grade
- 25V-SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200S
|
02200S
MD316249 ENGINE HANGER |
MD316249 |
US $22.20 |
||
|
02200T
|
02200T
MD319116 ENGINE HANGER |
MD319116 |
US $11.69 |
||
|
08102
|
08102
MR560513 BRACKET, ACCEL CABLE |
MR560513 |
US $10.21 |
||
|
11308
|
11308
MD347006 GASKET, ENG AIR INTAKE SURGE TANK |
MD347006 |
from US $9.52 |
||
|
11342
|
11342
MN122058 TANK, ENG AIR INTAKE SURGE |
MN122058 |
US $809.54 |
||
|
11400
|
11400
MD339094 MANIFOLD, INLET |
MD339094 |
US $438.26 |
||
|
11410
|
11410
MD327788 GASKET, INLET MANIFOLD |
MD327788 |
US $23.94 |
||
|
11437P
|
11437P
MN122098 STAY, INLET MANIFOLD |
MN122098 |
US $39.22 |
||
|
11437Q
|
11437Q
MD363958 STAY, INLET MANIFOLD |
MD363958 |
US $45.14 |
||
|
11469
|
11469
MF450495 WASHER, CYLINDER HEADSpring,8 |
MF450495 |
US $4.51 |
||
|
11482
|
11482
MF430181 NUT, CYLINDER HEAD8 |
MF430181 |
US $2.74 |
||
|
11483
|
11483
MD135983 NIPPLE, INLET MANIFOLD8 |
MD135983 |
US $5.18 |
||
|
11483P
|
11483P
MD305458 NIPPLE, INLET MANIFOLD6 |
MD305458 |
US $4.59 |
||
|
11483Q
|
11483Q
MD342336 NIPPLE, INLET MANIFOLD4 |
MD342336 |
US $6.66 |
||
|
11483T
|
11483T
MD109597 NIPPLE, INLET MANIFOLD8 |
MD109597 |
US $6.51 |
||
|
11493P
|
11493P
MD017652 CLAMP, ROCKER COVER |
MD017652 |
US $2.05 |
||
|
11496Z
|
11496Z
MD323562 BRACKET, INLET MANIFOLD |
MD323562 |
US $6.66 |
||
|
11496ZC
|
11496ZC
MD103930 CLIP, ENG WIRING |
MD103930 |
US $9.03 |
||
|
11498Q
|
11498Q
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
11498S
|
11498S
MF241857 BOLT, THROTTLE BODYWasher assembled,8x30 |
MF241857 |
US $2.37 |
||
|
11498T
|
11498T
MF241855 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241855 |
US $3.01 |
||
|
11498U
|
11498U
MD195686 BOLT, INLET MANIFOLDWasher assembled,8x115 |
MD195686 |
US $4.51 |
||
|
11498V
|
11498V
MF241863 BOLT, INLET MANIFOLDWasher assembled,8x50 |
MF241863 |
US $3.70 |
||
|
11498X
|
11498X
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.66 |
||
|
11498ZZ
|
11498ZZ
MF241250 BOLT, ELECTRIC FUEL PUMPWasher assembled,8x14 |
MF241250 |
US $2.46 |
||
|
14839
|
14839
MD632057 O-RING, ENG CONTROL PRESSURE SENSOR |
MD632057 |
US $2.87 |
||
|
14871
|
14871
MF244805 BOLT, ENG CONTROL PRESSURE SENSORWasher assembled,5x18 |
MF244805 |
from US $1.42 |
||
|
14930
|
14930
MD310129 SENSOR, ENG CONTROL BOOST |
MD310129 |
US $206.57 |
||
|
14930
|
14930
MN153281 SENSOR, INLET MANIFOLD ABSOLUTE PRESSURE |
MN153281 |
US $188.78 |
||
|
11 110
|
Rocker cover
11 110
|
||||
|
11 110
|
Rocker cover
11 110
|
||||
|
11 120
|
Cylinder head
11 120
|
||||
|
11 120
|
Cylinder head
11 120
|
||||
|
14 110
|
Water pump
14 110
|
||||
|
14 110
|
Water pump
14 110
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
35 230
|
Power brake booster
35 230
|
||||
