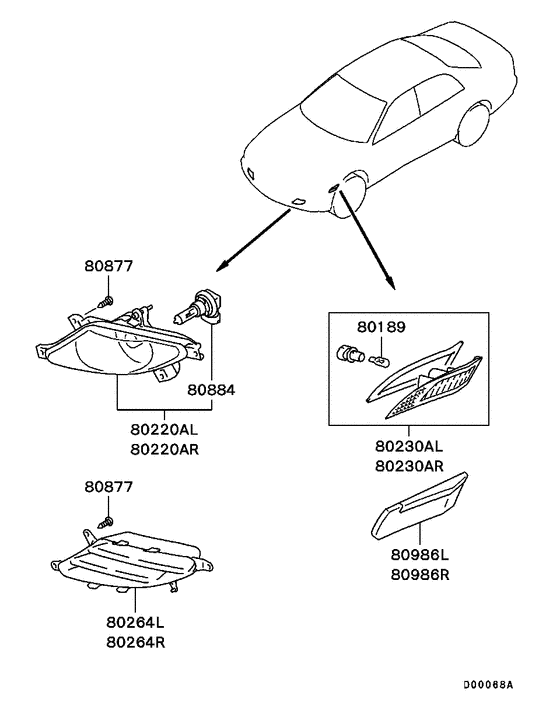

Front exterior lamp (0309.1-) Diagram Mitsubishi DIAMANTE
- Year
- 2002 - 2004
- Sales region
- P.RICO&GUAM/MMAL
- Note
- VR-X,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- VR-X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80189
|
80189
MS820080 BULB, FR LAMP12v-5w |
MS820080 |
from US $3.80 |
||
|
80220AL
|
80220AL
MR930995
LAMP ASSY,FOG,FR LH
|
MR930995 |
— | ||
|
80220AR
|
80220AR
MR930996
LAMP ASSY,FOG,FR RH
|
MR930996 |
— | ||
|
80230AL
|
80230AL
MR930747
LAMP ASSY,SIDE TURN SIGNAL,FR LH
|
MR930747 |
— | ||
|
80230AR
|
80230AR
MR930748
LAMP ASSY,SIDE TURN SIGNAL,FR RH
|
MR930748 |
— | ||
|
80264L
|
80264L
AW343735
COVER,FR FOG LAMP,LH
|
AW343735 |
— | ||
|
80264R
|
80264R
AW343736
COVER,FR FOG LAMP,RH
|
AW343736 |
— | ||
|
80877
|
80877
MB152869 SCREW, RR MUD GUARDTapping,5x12 |
MB152869 |
US $2.37 |
||
|
80877
|
80877
MS350146 SCREW, FOG LAMPWasher assembled,5x16 |
MS350146 |
US $3.83 |
||
|
80884
|
80884
MS820960 BULB, HEADLAMP12v-51w(hb4) |
MS820960 |
from US $21.89 |
||
|
80884
|
80884
MS820964 BULB, HEADLAMP12v-55w,h3 |
MS820964 |
from US $38.20 |
||
|
80986L
|
80986L
MR928843
REFLECTOR,LH
|
MR928843 |
— | ||
|
80986R
|
80986R
MR928844
REFLECTOR,RH
|
MR928844 |
— |
