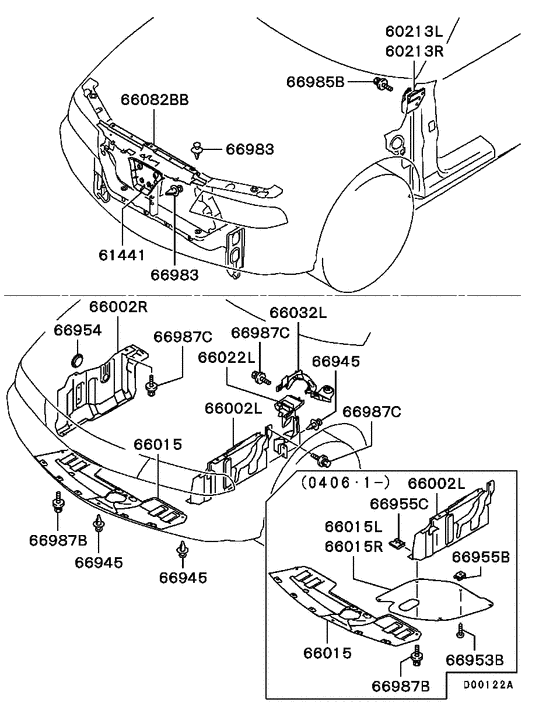

Loose panel (FRONT) Diagram Mitsubishi DIAMANTE
- Year
- 2002 - 2004
- Sales region
- P.RICO&GUAM/MMAL
- Note
- VR-X,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- VR-X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
60213L
|
60213L
MR220005 STAY, FR DECK, LH |
MR220005 |
US $16.28 |
||
|
60213R
|
60213R
MR220006
STAY, FR DECK, RH
|
MR220006 |
— | ||
| replacement | |||||
|
60213R
|
60213R
MN150578 STAY, FR DECK, RH |
MN150578 |
US $19.84 |
||
|
61441
|
61441
MR920391
COVER,HOOD
|
MR920391 |
— | ||
|
66002L
|
66002L
AW344165 COVER, ENG ROOM SIDE, LH |
AW344165 |
US $48.84 |
||
|
66002R
|
66002R
AW339532 COVER, ENG ROOM SIDE, RH |
AW339532 |
US $48.84 |
||
|
66015
|
66015
MR264216 COVER, ENG ROOM UNDER, FR |
MR264216 |
US $92.50 |
||
|
66015
|
66015
MR396475
COVER,ENG ROOM UNDER
|
MR396475 |
— | ||
|
66015
|
66015
MR922448
COVER,ENG ROOM UNDER
|
MR922448 |
— | ||
|
66015L
|
66015L
MR932329
COVER,ENG ROOM UNDER,LH
|
MR932329 |
— | ||
|
66015R
|
66015R
MR932330
COVER,ENG ROOM UNDER,RH
|
MR932330 |
— | ||
|
66022L
|
66022L
AW347905
COVER,ENG ROOM UNDER,FR LH
|
AW347905 |
— | ||
|
66032L
|
66032L
AW347906 COVER, ENG ROOM UNDER, RR LH |
AW347906 |
US $15.54 |
||
|
66082BB
|
66082BB
MR186994 COVER, ENG ROOM, FR UPR |
MR186994 |
US $26.64 |
||
|
66082BB
|
66082BB
MR920375
COVER,ENG ROOM,FR UPR
|
MR920375 |
— | ||
|
66945
|
66945
MB547806 CLIP, SPLASH SHIELD8 |
MB547806 |
from US $1.48 |
||
|
66953B
|
66953B
MS450174 SCREW, 3RD SEATTapping,4x16 |
MS450174 |
from US $2.81 |
||
|
66954
|
66954
MU670026 PLUG, BODY35 |
MU670026 |
from US $3.22 |
||
|
66955B
|
66955B
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
||
|
66955C
|
66955C
MU440019 NUT, FR BUMPER6 |
MU440019 |
from US $1.05 |
||
|
66983
|
66983
MB253964 CLIP, FR BUMPER |
MB253964 |
from US $1.68 |
||
|
66985B
|
66985B
MS240114 BOLT, FR SEAT BELTWasher assembled,8x25 |
MS240114 |
US $2.52 |
||
|
66987B
|
66987B
MS240156 BOLTWasher assembled,6x20 |
MS240156 |
from US $0.78 |
||
|
66987B
|
66987B
MS240602 BOLT, FR BUMPERWasher assembled,6x20 |
MS240602 |
from US $0.98 |
||
|
66987C
|
66987C
MS240159 BOLT, SPLASH SHIELDWasher assembled,8x25 |
MS240159 |
US $2.66 |
||
