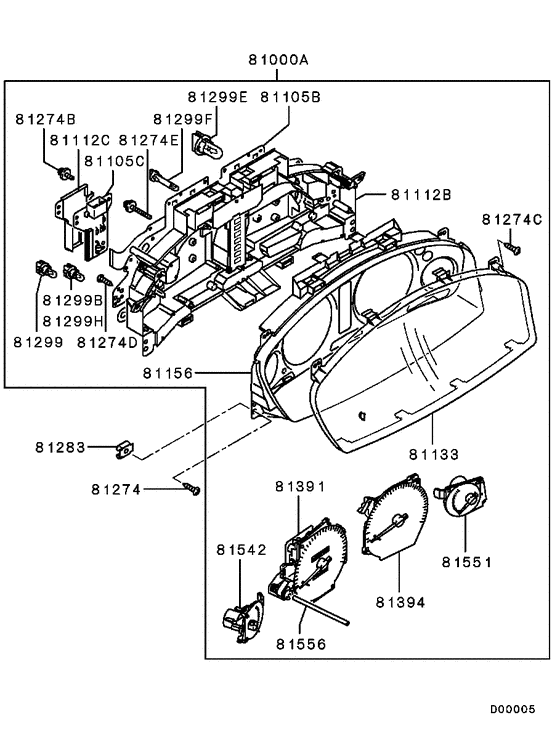

Meter,gauge & clock (COMBINATION METER(L-LINE)) Diagram Mitsubishi DIAMANTE
- Year
- 2002 - 2004
- Sales region
- P.RICO&GUAM/MMAL
- Note
- VR-X,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- VR-X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81000A
|
81000A
MN162853
METER ASSY,COMBINATION
|
MN162853 |
— | ||
|
81105B
|
81105B
MR512806
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MR512806 |
— | ||
|
81105C
|
81105C
MR298824
BOARD, INSTRUMENT PANEL PRINTED CIRCUIT
|
MR298824 |
— | ||
|
81105C
|
81105C
MR512798
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MR512798 |
— | ||
|
81112B
|
81112B
MR512767
CASE,COMBINATION METER
|
MR512767 |
— | ||
|
81112C
|
81112C
MR512776
CASE,COMBINATION METER
|
MR512776 |
— | ||
|
81133
|
81133
MR512781
GLASS,COMBINATION METER
|
MR512781 |
— | ||
|
81156
|
81156
MR512777
PLATE,COMBINATION METER WINDOW
|
MR512777 |
— | ||
|
81274
|
81274
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
81274B
|
81274B
AW328845 SCREW, INSTRUMENT PANEL METERTapping,4x14 |
AW328845 |
US $2.22 |
||
|
81274B
|
81274B
MC859749
SCREW, INSTRUMENT PANEL METER
|
MC859749 |
— | ||
|
81274C
|
81274C
AW348391
SCREW,INSTRUMENT PANEL METER
|
AW348391 |
— | ||
|
81274C
|
81274C
AW348840
SCREW,INSTRUMENT PANEL METER
|
AW348840 |
— | ||
|
81274C
|
81274C
MF456100 SCREW, INSTRUMENT PANEL METERTapping,4x20 |
MF456100 |
US $1.18 |
||
|
81274D
|
81274D
AW348392
SCREW,INSTRUMENT PANEL METER
|
AW348392 |
— | ||
|
81274D
|
81274D
MR320018
SCREW, INSTRUMENT PANEL METER
|
MR320018 |
— | ||
|
81274E
|
81274E
AW328840 SCREW, INSTRUMENT PANEL METER3x15 |
AW328840 |
US $2.07 |
||
|
81274E
|
81274E
MC883599
SCREW, SPEEDOMETER
|
MC883599 |
— | ||
|
81283
|
81283
MB326019 NUT, INSTRUMENT PANEL METERSpring,5 |
MB326019 |
US $2.19 |
||
|
81299
|
81299
MR512803 BULB, INSTRUMENT PANEL METER |
MR512803 |
US $4 |
||
|
81299B
|
81299B
MR512804 BULB, INSTRUMENT PANEL METER |
MR512804 |
US $2.66 |
||
|
81299E
|
81299E
MR512805
BULB,INSTRUMENT PANEL METER
|
MR512805 |
— | ||
|
81299F
|
81299F
MB849560 BULB, INSTRUMENT PANEL METER12v-1.12w |
MB849560 |
US $8.12 |
||
|
81391
|
81391
MN134044
Speedometer
|
MN134044 |
— | ||
|
81391
|
81391
MR512794
Speedometer
|
MR512794 |
— | ||
|
81394
|
81394
MN134045
TACHOMETER
|
MN134045 |
— | ||
|
81394
|
81394
MR512790
TACHOMETER
|
MR512790 |
— | ||
|
81542
|
81542
MN134047
GAUGE,FUEL
|
MN134047 |
— | ||
|
81542
|
81542
MR512782
GAUGE,FUEL
|
MR512782 |
— | ||
|
81551
|
81551
MN134046
GAUGE,WATER TEMPERATURE
|
MN134046 |
— | ||
|
81551
|
81551
MR512786
GAUGE,WATER TEMPERATURE
|
MR512786 |
— | ||
|
81556
|
81556
MR117121
KNOB, TRIP METER
|
MR117121 |
— |
