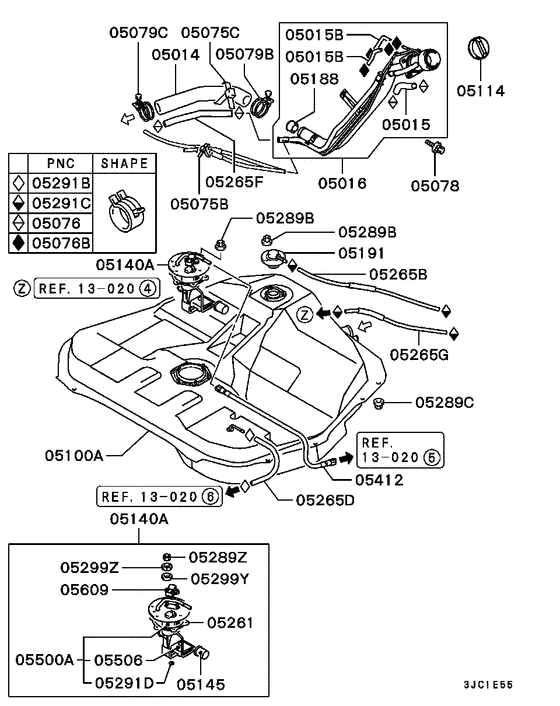

Fuel tank (9706.1-9905.3) Diagram Mitsubishi DIAMANTE
- Year
- 2001 - 2004
- Sales region
- MMNA/MMAL
- Note
- VR-X,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- VR-X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05014
|
05014
AW339394
HOSE,FUEL FILLER
|
AW339394 |
— | ||
|
05014
|
05014
MR271485 HOSE, FUEL FILLER |
MR271485 |
US $51.80 |
||
|
05014
|
05014
MR487891
HOSE,FUEL FILLER
|
MR487891 |
— | ||
|
05015
|
05015
MR342208
HOSE,FUEL FILLER NECK BREATHER
|
MR342208 |
— | ||
|
05015B
|
05015B
MU602666 HOSE, FUEL TANK6x660 |
MU602666 |
US $19.84 |
||
|
05016
|
05016
AW343052
NECK,FUEL FILLER
|
AW343052 |
— | ||
|
05016
|
05016
MN120269
NECK,FUEL FILLER
|
MN120269 |
— | ||
|
05016
|
05016
MR271481
NECK,FUEL FILLER
|
MR271481 |
— | ||
|
05016
|
05016
MR462107
NECK,FUEL FILLER
|
MR462107 |
— | ||
|
05075B
|
05075B
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
05075C
|
05075C
MB249340 BAND, FUEL TANK PROTECTORL=219.5 |
MB249340 |
US $2.74 |
||
|
05076
|
05076
MS660173 CLIP, FUEL TANKD=18.5 |
MS660173 |
from US $1.54 |
||
|
05076B
|
05076B
AW333819 CLIP, FUEL TANK10 |
AW333819 |
US $4.14 |
||
|
05078
|
05078
MF244249 BOLT, ENG HANGERWasher assembled,8x16 |
MF244249 |
US $2.19 |
||
|
05079B
|
05079B
AW350002
CLAMP,FUEL FILLER PIPE
|
AW350002 |
— | ||
|
05079B
|
05079B
MF661120 CLAMP, AIR CLEANER40 |
MF661120 |
US $3.56 |
||
|
05079B
|
05079B
MS660271 CLAMP, FUEL TANK45 |
MS660271 |
from US $2.91 |
||
|
05079C
|
05079C
AW350002
CLAMP,FUEL FILLER PIPE
|
AW350002 |
— | ||
|
05079C
|
05079C
MF661023 CLAMP, ENG BREATHERD=48 |
MF661023 |
from US $2.60 |
||
|
05100A
|
05100A
AW343046
FUEL TANK ASSY
|
AW343046 |
— | ||
|
05100A
|
05100A
MR462105
FUEL TANK ASSY
|
MR462105 |
— | ||
|
05100A
|
05100A
MR920534
FUEL TANK ASSY
|
MR920534 |
— | ||
|
05114
|
05114
AW346699 CAP, FUEL TANK |
AW346699 |
US $37.62 |
||
|
05140A
|
05140A
MR908124
PUMP & GAUGE ASSY,FUEL TANK
|
MR908124 |
— | ||
|
05140A
|
05140A
MR930987
PUMP & GAUGE ASSY,FUEL TANK
|
MR930987 |
— | ||
|
05140A
|
05140A
MR933629
PUMP & GAUGE ASSY,FUEL TANK
|
MR933629 |
— | ||
|
05145
|
05145
MR908125
GAUGE UNIT,FUEL TANK
|
MR908125 |
— | ||
|
05145
|
05145
MR933626
GAUGE UNIT,FUEL TANK
|
MR933626 |
— | ||
|
05188
|
05188
MR135439 VALVE, FUEL FILLER NECK |
MR135439 |
from US $6.86 |
||
|
05188
|
05188
MR271464 VALVE, FUEL FILLER NECK |
MR271464 |
US $5.75 |
||
|
05191
|
05191
MN120764 VALVE, FUEL TANK SAFETY |
MN120764 |
from US $41.36 |
||
|
05191
|
05191
MR135854 VALVE, FUEL TANK SAFETY |
MR135854 |
US $62.16 |
||
|
05191
|
05191
MR187855 VALVE, FUEL TANK SAFETY |
MR187855 |
US $38.99 |
||
|
05261
|
05261
MB400461 GASKET, FUEL TANK GAUGE |
MB400461 |
from US $5.54 |
||
|
05261
|
05261
MR573684 GASKET, FUEL TANK GAUGE |
MR573684 |
from US $8.39 |
||
|
05265B
|
05265B
04153028 HOSE, FUEL TANK6x20000 |
04153028 |
US $84.36 |
||
|
05265B
|
05265B
MU602666 HOSE, FUEL TANK6x660 |
MU602666 |
US $19.84 |
||
|
05265D
|
05265D
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265D
|
05265D
MU600698 HOSE, FUEL TANK6x2000 |
MU600698 |
US $97.13 |
||
|
05265F
|
05265F
AW339395
HOSE,FUEL TANK
|
AW339395 |
— | ||
|
05265F
|
05265F
MR271486
HOSE,FUEL TANK
|
MR271486 |
— | ||
|
05265F
|
05265F
MR462117
HOSE,FUEL TANK
|
MR462117 |
— | ||
|
05265G
|
05265G
MU602666 HOSE, FUEL TANK6x660 |
MU602666 |
US $19.84 |
||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05289C
|
05289C
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
05289Z
|
05289Z
MF430003 NUT, FUEL TANK5 |
MF430003 |
from US $0.82 |
||
|
05291B
|
05291B
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05291C
|
05291C
AW333819 CLIP, FUEL TANK10 |
AW333819 |
US $4.14 |
||
|
05291C
|
05291C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291D
|
05291D
MB595890 CLIP, FUEL TANK |
MB595890 |
US $3.97 |
||
|
05299Y
|
05299Y
MF450003 WASHER, EXTERIOR MARKPlain,5 |
MF450003 |
from US $0.82 |
||
|
05299Z
|
05299Z
MF450403 WASHER, EXTERIOR MARKSpring,5 |
MF450403 |
from US $0.35 |
||
|
05412
|
05412
MR908122
HOSE,FUEL HIGH PRESSURE
|
MR908122 |
— | ||
|
05412
|
05412
MR908191
HOSE,FUEL HIGH PRESSURE
|
MR908191 |
— | ||
|
05500A
|
05500A
MR204500 FUEL PUMP ASSY |
MR204500 |
US $575.95 |
||
|
05506
|
05506
MR204495 FILTER, FUEL PUMP |
MR204495 |
from US $31.84 |
||
|
05609
|
05609
MD322973 SENSOR, FUEL VAPOR |
MD322973 |
US $161.32 |
||
|
