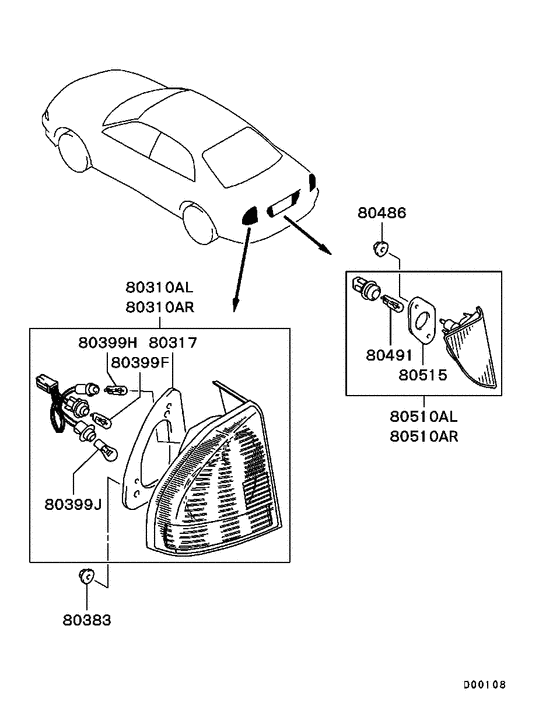

Rear exterior lamp (RR COMBI LAMP,ETC.(0309.1- EXC VR-X)) Diagram Mitsubishi DIAMANTE
- Year
- 2001 - 2004
- Sales region
- MMNA/MMAL
- Note
- VR-X,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- VR-X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80310AL
|
80310AL
MR926399
LAMP ASSY,COMBINATION,RR LH
|
MR926399 |
— | ||
|
80310AL
|
80310AL
MR928417
LAMP ASSY,COMBINATION,RR LH
|
MR928417 |
— | ||
|
80310AR
|
80310AR
MR926400
LAMP ASSY,COMBINATION,RR RH
|
MR926400 |
— | ||
|
80310AR
|
80310AR
MR928418
LAMP ASSY,COMBINATION,RR RH
|
MR928418 |
— | ||
|
80317
|
80317
MR221193 GASKET, RR COMBINATION LAMP |
MR221193 |
US $8.73 |
||
|
80317
|
80317
MR930751
GASKET,RR COMBINATION LAMP
|
MR930751 |
— | ||
|
80383
|
80383
AW337516 NUT, RR BUMPER6 |
AW337516 |
US $2.37 |
||
|
80399F
|
80399F
MS820027 BULB, TAIL LAMP12v-21/5w |
MS820027 |
from US $2.09 |
||
|
80399H
|
80399H
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.79 |
||
|
80399H
|
80399H
MS820097
BULB,TAIL LAMP
|
MS820097 |
— | ||
|
80399J
|
80399J
MS820029 BULB, STOP LAMP12v-21w |
MS820029 |
from US $4.79 |
||
|
80486
|
80486
AW337516 NUT, RR BUMPER6 |
AW337516 |
US $2.37 |
||
|
80491
|
80491
MS820078 BULB, STOP LAMP12v-16w(w16w) |
MS820078 |
from US $3.43 |
||
|
80510AL
|
80510AL
MR926401
LAMP ASSY,BACKUP,LH
|
MR926401 |
— | ||
|
80510AR
|
80510AR
MR926402
LAMP ASSY,BACKUP,RH
|
MR926402 |
— | ||
|
80515
|
80515
MR530264 GASKET, BACKUP LAMP |
MR530264 |
US $4.74 |
||
|
80515
|
80515
MR930752
GASKET,BACKUP LAMP
|
MR930752 |
— |
