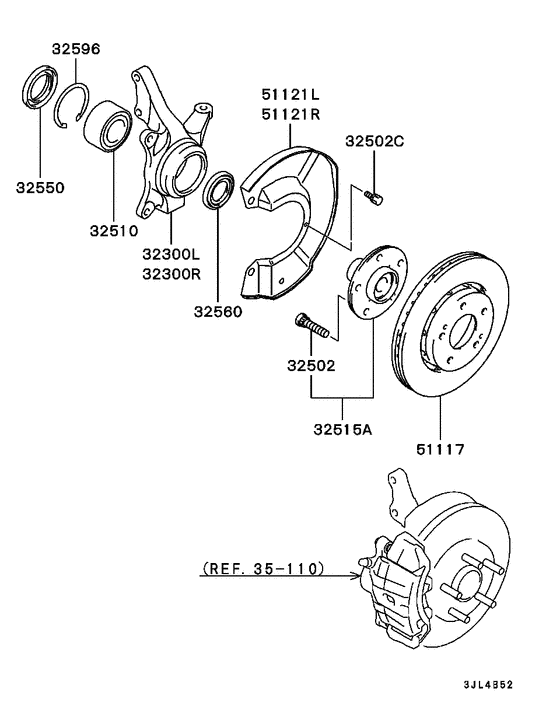

Front axle hub & drum Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2000
- Sales region
- MMNA/MMAL
- Note
- ES,4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32300L
|
32300L
MR197771 KNUCKLE,LH |
MR197771 |
US $230.88 |
||
|
32300L
|
32300L
MR197773 KNUCKLE, LH |
MR197773 |
US $230.88 |
||
|
32300R
|
32300R
MR197772 KNUCKLE,RH |
MR197772 |
US $230.88 |
||
|
32300R
|
32300R
MR197774 KNUCKLE, RH |
MR197774 |
US $230.88 |
||
|
32502
|
32502
MB303869
BOLT, FR WHEEL HUB
|
MB303869 |
— | ||
| replacement | |||||
|
32502
|
32502
MB911495 BOLT, FR WHEEL HUB12x43 |
MB911495 |
from US $2.03 |
||
|
32502
|
32502
MB911495 BOLT, FR WHEEL HUB12x43 |
MB911495 |
from US $2.03 |
||
|
32502C
|
32502C
MS240094 BOLT, FUEL TANKWasher assembled,6x12 |
MS240094 |
US $2.60 |
||
|
32510
|
32510
MB633430 BEARING, FR WHEEL HUBAngular contact ball,84x39-45 |
MB633430 |
US $152.44 |
||
|
32510
|
32510
MR449796
BEARING,FR WHEEL HUB
|
MR449796 |
— | ||
|
32515A
|
32515A
AW335331 HUB ASSY, FR WHEEL |
AW335331 |
US $189.44 |
||
|
32515A
|
32515A
MR449671
HUB ASSY,FR WHEEL
|
MR449671 |
— | ||
|
32550
|
32550
AW337787 OIL SEAL, FR WHEEL HUB, INR |
AW337787 |
US $10.95 |
||
|
32560
|
32560
AW337788 OIL SEAL, FR WHEEL HUB, OTR |
AW337788 |
US $6.22 |
||
|
32596
|
32596
MB633435 SNAP RING, FR WHEEL HUB77.5 |
MB633435 |
from US $13.16 |
||
|
51117
|
51117
MR449660 DISC, FR BRAKE15; |
MR449660 |
US $170.20 |
||
|
51121L
|
51121L
MR205000 COVER, FR BRAKE DISC, LH |
MR205000 |
US $37 |
||
|
51121R
|
51121R
MR205001 COVER, FR BRAKE DISC, RH |
MR205001 |
US $37 |
||
|
35 110
|
Front wheel brake
35 110
|
||||
|
35 110
|
Front wheel brake
35 110
|
||||
