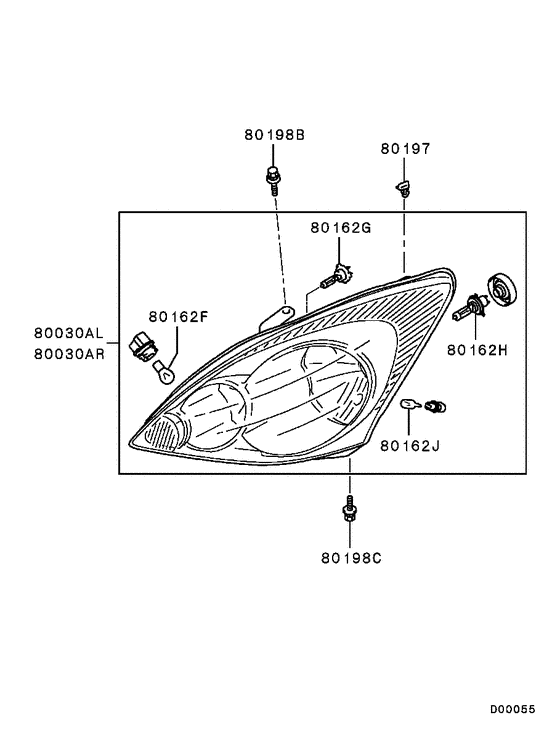

Headlamp (0309.1-) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2000
- Sales region
- MMNA/MMAL
- Note
- ES,4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80030AL
|
80030AL
MR932341
HEADLAMP ASSY,LH
|
MR932341 |
— | ||
|
80030AR
|
80030AR
MR932342
HEADLAMP ASSY,RH
|
MR932342 |
— | ||
|
80162F
|
80162F
MS820029 BULB, STOP LAMP12v-21w |
MS820029 |
from US $4.79 |
||
|
80162G
|
80162G
MS820972 BULB, HEADLAMP12v-55w,h7 |
MS820972 |
US $34.04 |
||
|
80162H
|
80162H
MS820968 BULB, HEADLAMP12v-60/55w,h4(hb2) |
MS820968 |
from US $30.10 |
||
|
80162J
|
80162J
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.79 |
||
|
80197
|
80197
MR929077
CLIP,HEADLAMP
|
MR929077 |
— | ||
|
80198B
|
80198B
MS240602 BOLT, FR BUMPERWasher assembled,6x20 |
MS240602 |
from US $0.98 |
||
|
80198C
|
80198C
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
